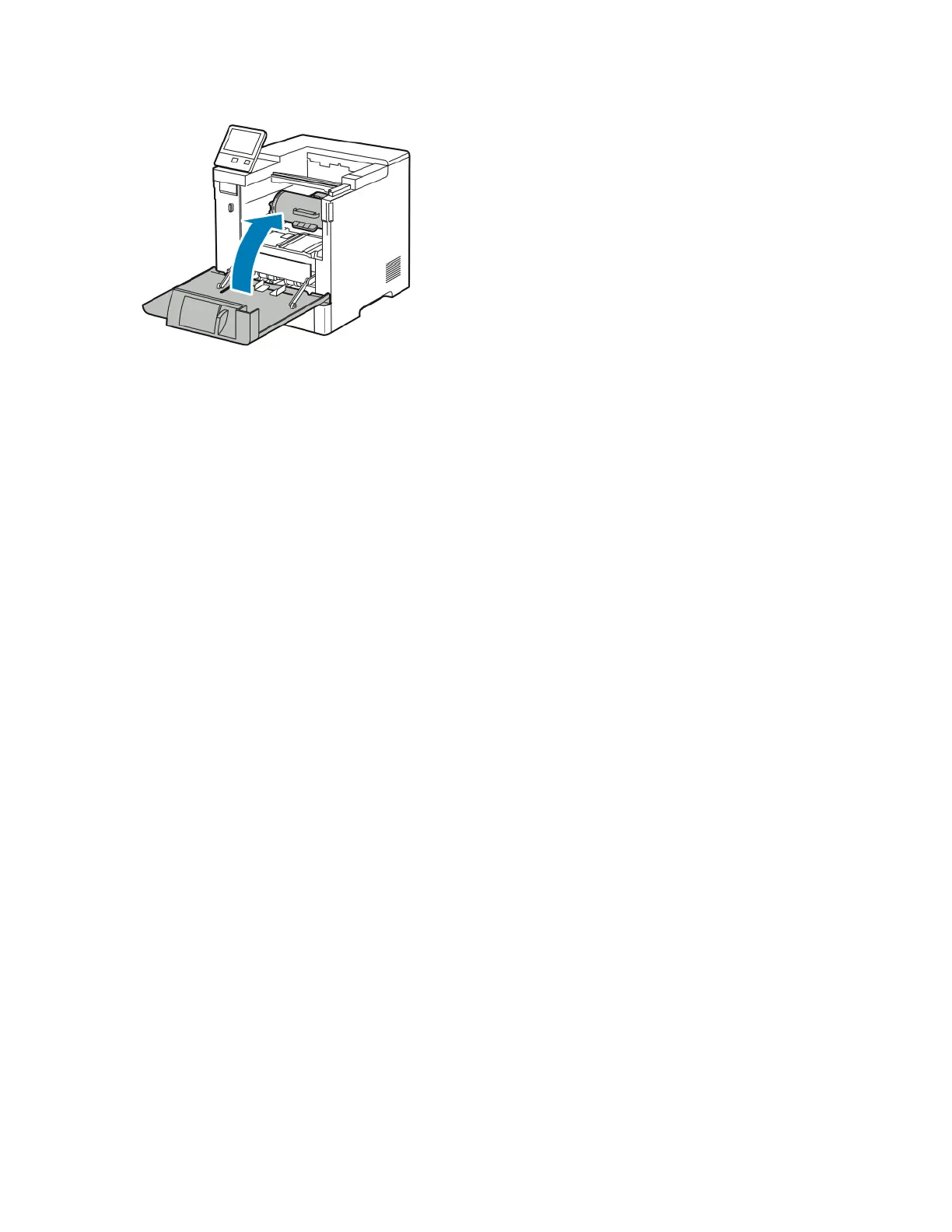

11. Close the Front Door.
Adjustments and Maintenance Procedures
Adjusting Paper Registration
Use Adjust Paper Registration to adjust the placement of the printed image on the page. The adjustment
allows you to place the top, bottom, left, and right margins exactly where you want. You can specify the
image position on both the front and back sides of the paper, for each installed paper tray.
Verifying Paper Registration
1. At the printer control panel, press the Home button.
2. Log in as administrator. For details, refer to the System Administrator Guide at
www.xerox.com/office/VLB600_VLB610docs.
3. Touch Device > Support > Image Position.
4. Select the source paper tray for the registration print.
a. Touch Paper Supply.
b. Touch the desired tray.
5. If your printer has automatic 2-sided printing, select the sides that you want to optimize.
• To select a sample registration page for adjusting side 1, touch Adjusted Side, then touch Side 1.
• To select a sample registration page for adjusting both sides, touch Adjusted Side, then touch
Side 2.
6. Specify the consecutive number of sample pages to print.
a. Touch Print Settings.
b. To increase or decrease the number of sample pages, for Quantity, touch the Plus icon (+) or
the Minus icon (-), then touch OK.
7. To print the sample pages, touch Print Sample.
8. When printing is completed, touch Close.
9. On the sample pages, for Side 1, use a ruler to measure the distance of the printed image from the
top, bottom, left, and right edges.
Xerox
®
VersaaLink
®
B600/B610 Printer7-6
User Guide
Maintenance
