3.3 IP55/UL Type 12 Heatsink External Mounting Drive Dimensions
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
19
◆ Models 2138, 4089, 4103, T103

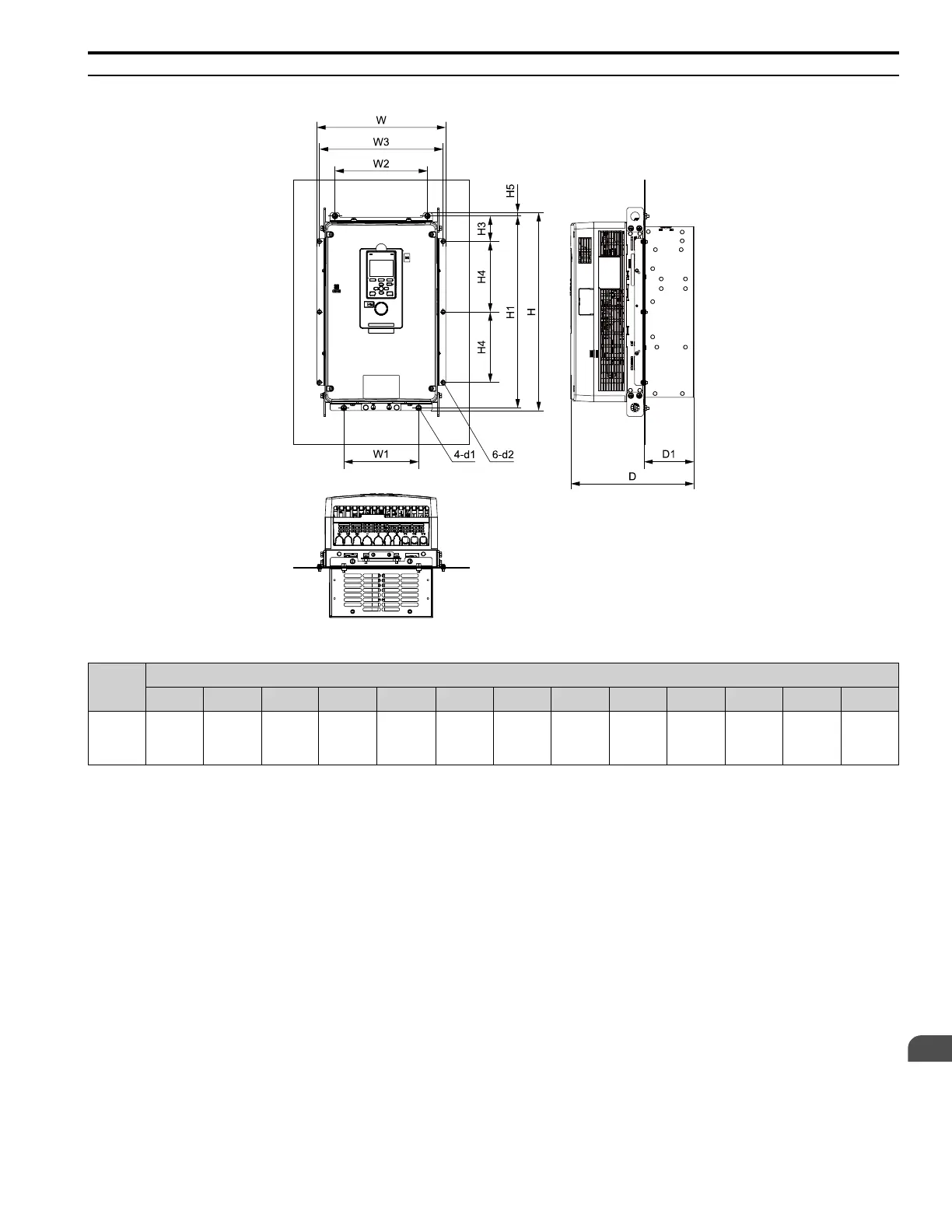

Figure 3.2 Dimension Diagram 2
Model
Dimensions mm (in)
W H D D1 W1 W2 W3 H1 H3 H4 H5 d1 d2
2138
4089, 4103
T103
293
(11.54)
450
(17.72)
280
(11.02)
114
(4.49)
170
(6.69)
210
(8.27)
281
(11.06)
436
(17.17)
58
(2.28)
160
(6.30)
8
(0.31)
M6 M5
