Mechanical Installation
3
3.3 IP55/UL Type 12 Heatsink External Mounting Drive Dimensions
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
21
◆ Models 2257, 2313, 4208 to 4302, 5125, 5144, T208 to T302

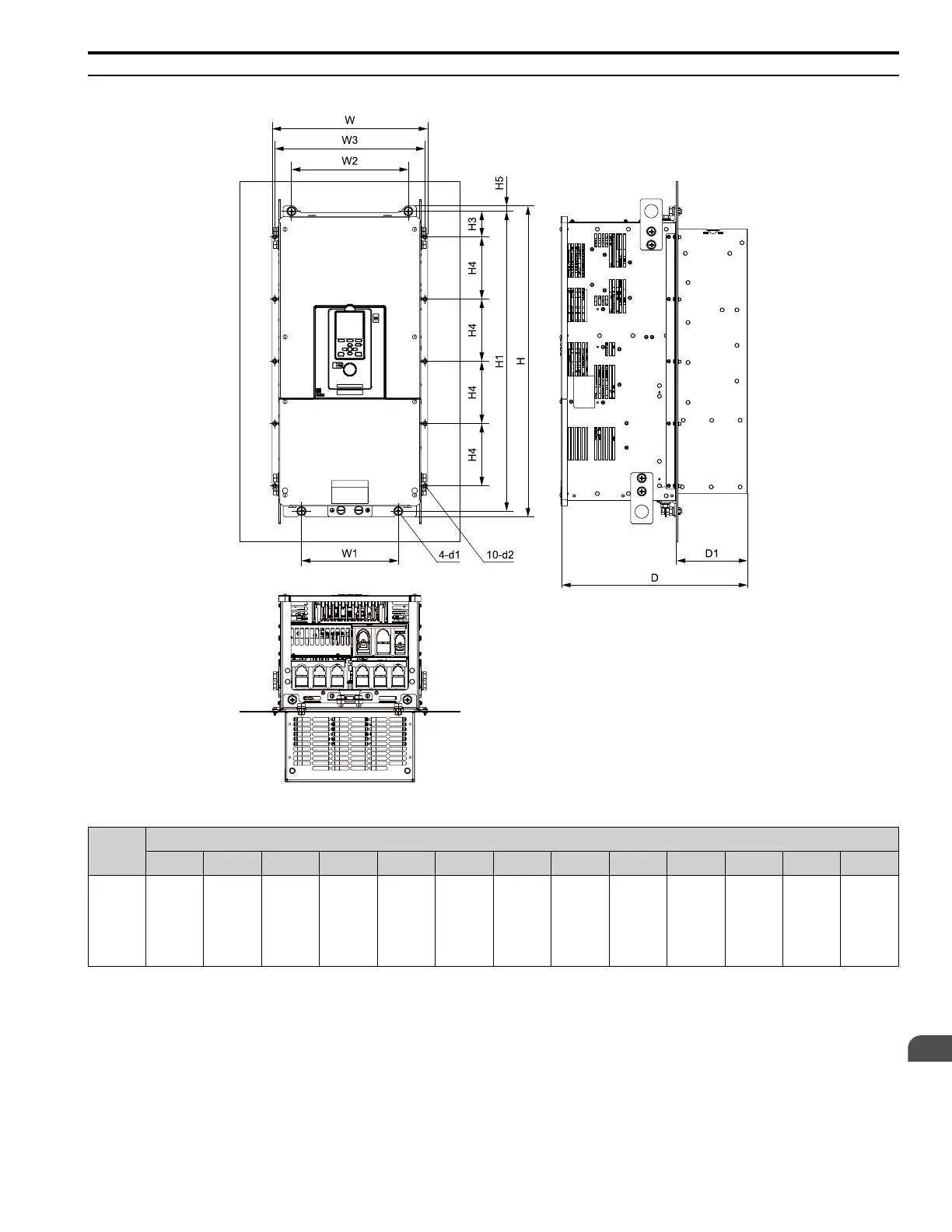

Figure 3.4 Dimension Diagram 4
Model
Dimensions mm (in)
W H D D1 W1 W2 W3 H1 H3 H4 H5 d1 d2
2257, 2313
4208 -
4302
5125, 5144
T208 -
T302
350
(13.78)
700
(27.56)
420
(16.54)
160
(6.30)
218
(8.58)
263
(10.35)
338
(13.31)
675
(26.56)
60
(2.36)
139
(5.47)
12
(0.47)
M10 M5
