Mechanical Installation
3
3.6 Install the Gasket
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
31
3.6 Install the Gasket
Cut an opening in the enclosure panel before you install the gasket. Refer to Panel Cut-Out Dimensions (IP55/UL
Type 12 Heatsink External Mounting) on page 24 for more information.
1. Install the upper and lower gaskets around the cut opening of the enclosure panel and then install the left and
right gaskets.
Overlap the ends of the left and right gaskets by 2 mm (0.08 in) over the upper and lower gaskets.
A - Enclosure panel
B - Upper and lower gasket
C - Left and right gasket

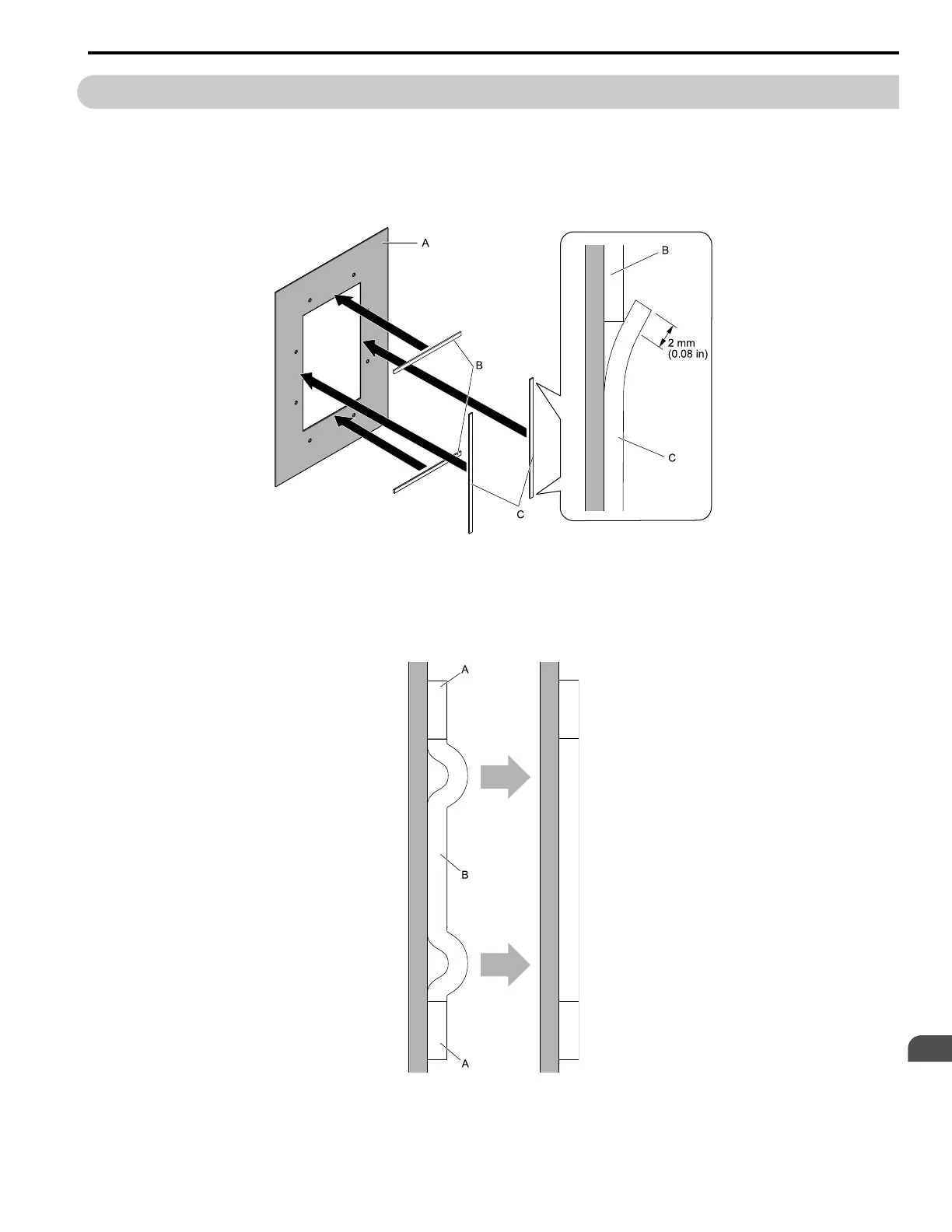

Figure 3.13 Install the Gasket
2. Push the overlapped part of the gasket and make a flat surface.
Make sure that there are no gaps between the gaskets.
A - Upper and lower gasket B - Left and right gasket
Figure 3.14
