Mechanical Installation
3
3.7 Installation Procedure
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
35
A - Enclosure panel
B - Gaskets
C - M6 screws or M8 screws
D - M5 screws

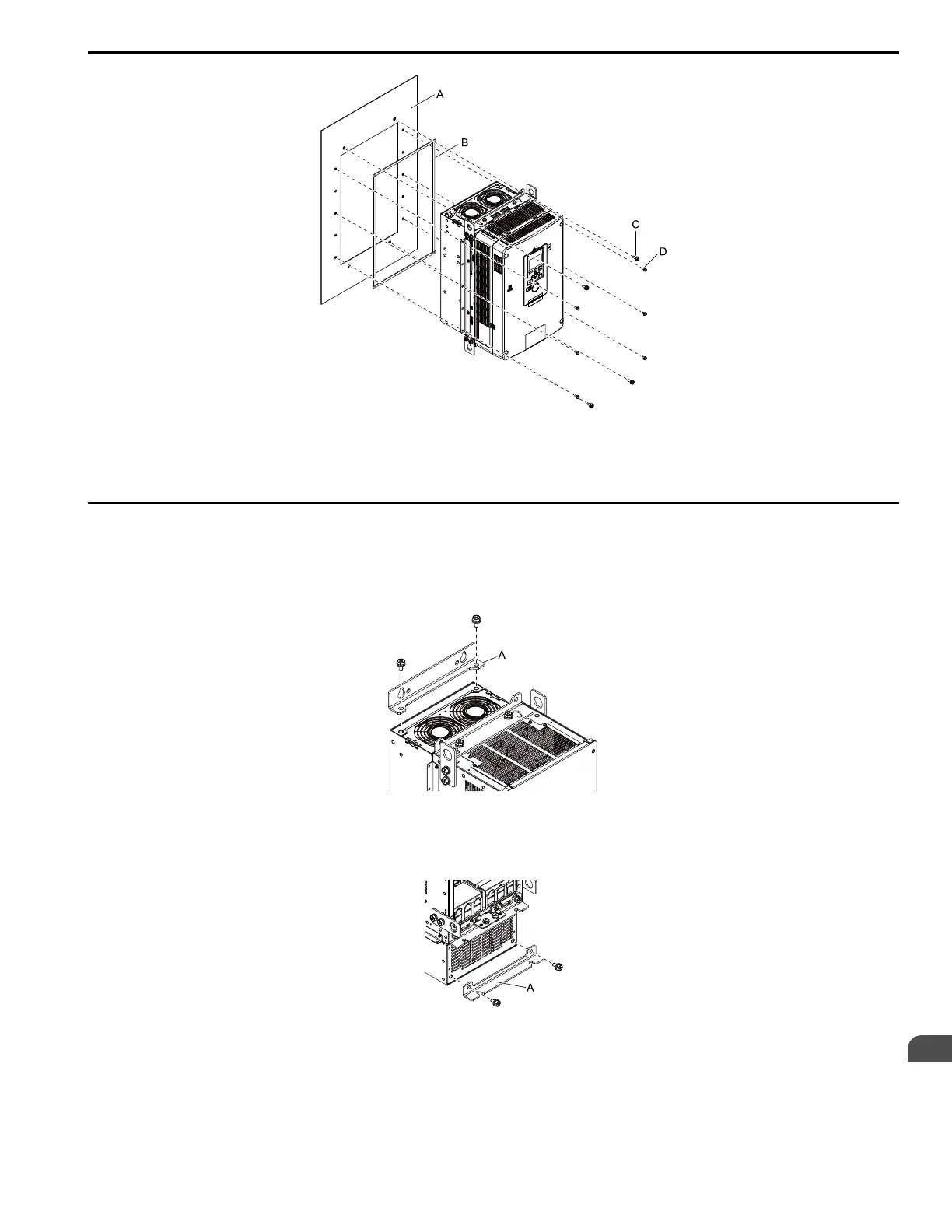

Figure 3.21 Install the Drive into the Opening of the Enclosure Panel
◆ Install the Drive (Procedure D)
Cut an opening in the enclosure panel before you install the attachment. Refer to Panel Cut-Out Dimensions (IP55/UL
Type 12 Heatsink External Mounting) on page 24 for more information.
1. Remove the shipping attachment from the top of the drive.
A - Shipping attachment
Figure 3.22 Remove the Shipping Attachment
2. Remove the shipping attachment from the bottom of the drive.
A - Shipping attachment
Figure 3.23 Remove the Shipping Attachment
3. Install the drive in the cut opening of the enclosure panel and use screws to safety it to the enclosure panel.
Tighten the screws to a correct tightening torque:
• M5 screws: 1.96 N∙m to 2.53 N∙m (17.35 lbf∙in to 22.39 lbf∙in)
