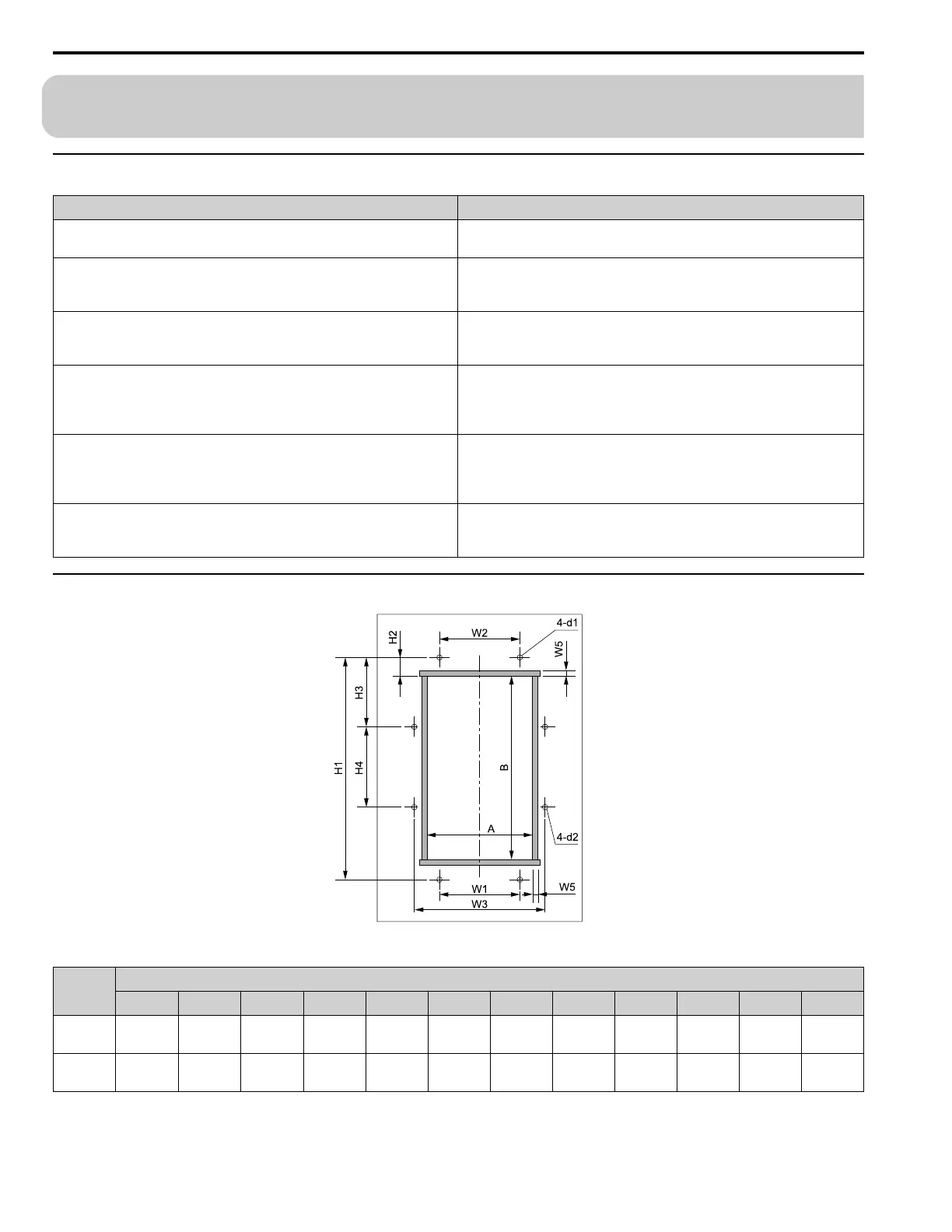

3.4 Panel Cut-Out Dimensions (IP55/UL Type 12 Heatsink External Mounting)
24
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
3.4 Panel Cut-Out Dimensions (IP55/UL Type 12 Heatsink
External Mounting)
◆ Drive Model and Panel Cut-Out Dimension Diagram
Model Reference
2004 - 2110
4002 - 4075
24
2138
4089, 4103
T103
25
2169, 2211
4140, 4168
T140, T168
25
2257, 2313
4208 - 4302
5125, 5144
T208 - T302
26
2360, 2415
4371, 4414
5192 - 5289
T371, T414
27
4477 - 4720
5382 - 5472
T477 - T720
28
◆ Models 2004 to 2110, 4002 to 4075
Figure 3.7 Panel Cut-Out Dimension Diagram 1
Model
Dimensions mm (in)
W1 W2 W3 W5 H1 H2 H3 H4 A B d1 d2
2004 - 2042
4002 - 4023
102
(4.02)
102
(4.02)
166
(6.54)
7
(0.28)
282
(11.10)
23
(0.91)
88
(3.46)
102
(4.02)
134
(5.28)
233
(9.17)
M5 M5
2056
4031, 4038
140
(5.51)
140
(5.51)
206
(8.11)
7
(0.28)
318
(12.52)
23.5
(0.93)
81.9
(3.22)
129
(5.08)
174
(6.85)
270
(10.63)
M5 M5
