3.4 Panel Cut-Out Dimensions (IP55/UL Type 12 Heatsink External Mounting)
26
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
Model
Dimensions mm (in)
W1 W2 W3 W5 H1 H2 H3 H4 A B d1 d2
2169, 2211
4140, 4168
T140, T168
190
(7.48)
220
(8.66)
290
(11.42)
7
(0.28)
527
(20.75)
19.5
(0.77)
53
(2.09)
140
(5.51)
248
(9.76)
487
(19.17)
M8 M5
◆ Models 2257, 2313, 4208 to 4302, 5125, 5144, T208 to T302

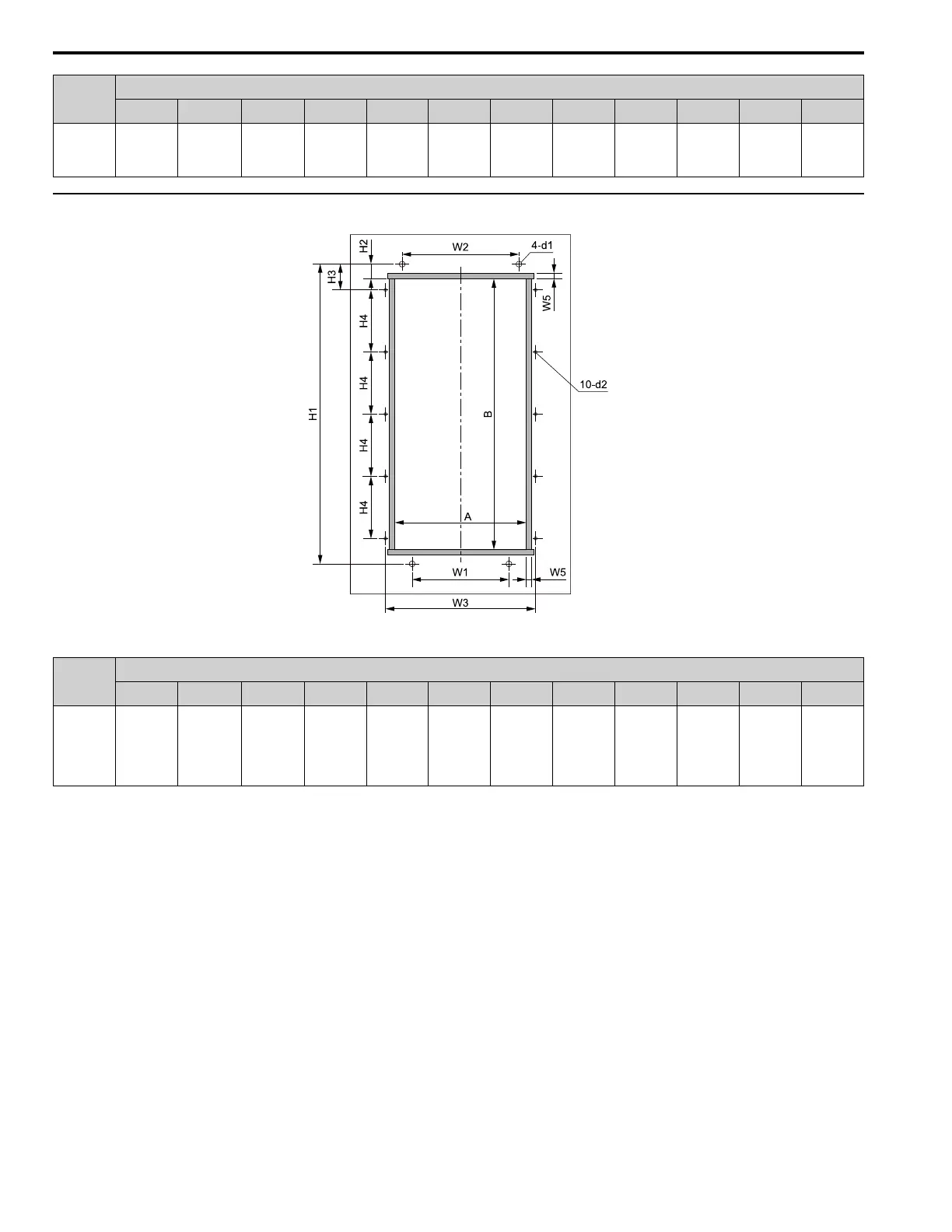

Figure 3.10 Panel Cut-Out Dimension Diagram 4
Model
Dimensions mm (in)
W1 W2 W3 W5 H1 H2 H3 H4 A B d1 d2
2257, 2313
4208 - 4302
5125, 5144
T208 -
T302
218
(8.58)
263
(10.35)
338
(13.31)
7
(0.28)
675
(26.56)
33
(1.30)
60
(2.36)
139
(5.47)
296
(11.65)
610
(24.02)
M10 M5
