3.4 Panel Cut-Out Dimensions (IP55/UL Type 12 Heatsink External Mounting)
28
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
◆ Models 4477 to 4720, 5382 to 5472, T477 to T720

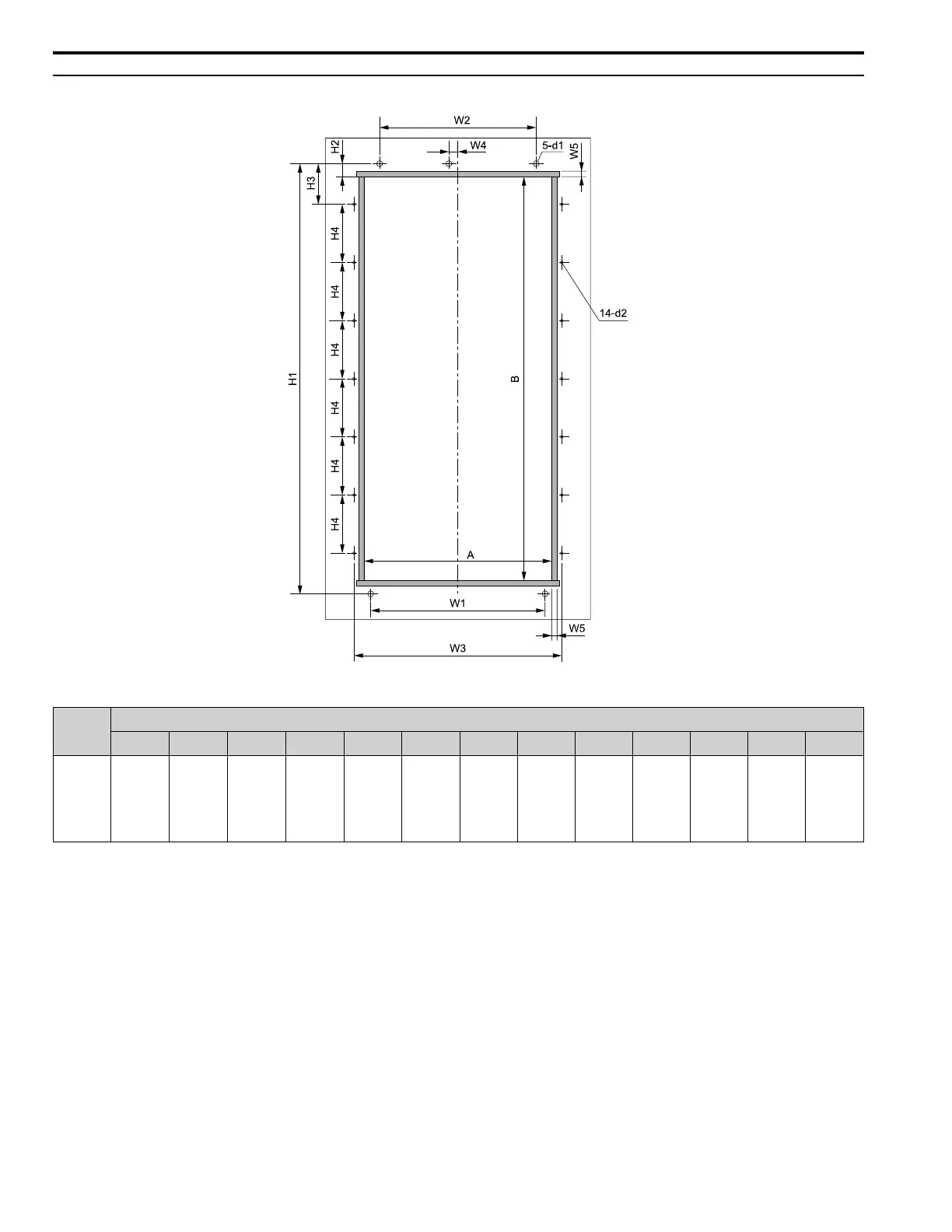

Figure 3.12 Panel Cut-Out Dimension Diagram 6
Model
Dimensions mm (in)
W1 W2 W3 W4 W5 H1 H2 H3 H4 A B d1 d2
4477 -
4720
5382 -
5472
T477 -
T720
450
(17.72)
404
(15.91)
536
(21.10)
23
(0.91)
7
(0.28)
1110
(43.70)
34
(1.34)
105
(4.13)
150
(5.91)
484
(19.06)
1042
(41.02)
M12 M5
