YASKAWA GA800 GA80U Series User Manual

Mechanical Installation
3
3.4 Panel Cut-Out Dimensions (IP55/UL Type 12 Heatsink External Mounting)
YASKAWA TOEPC71061779E GA800 DRIVE INSTALLATION MANUAL
27
◆ Models 2360, 2415, 4371, 4414, 5192 to 5289, T371, T414

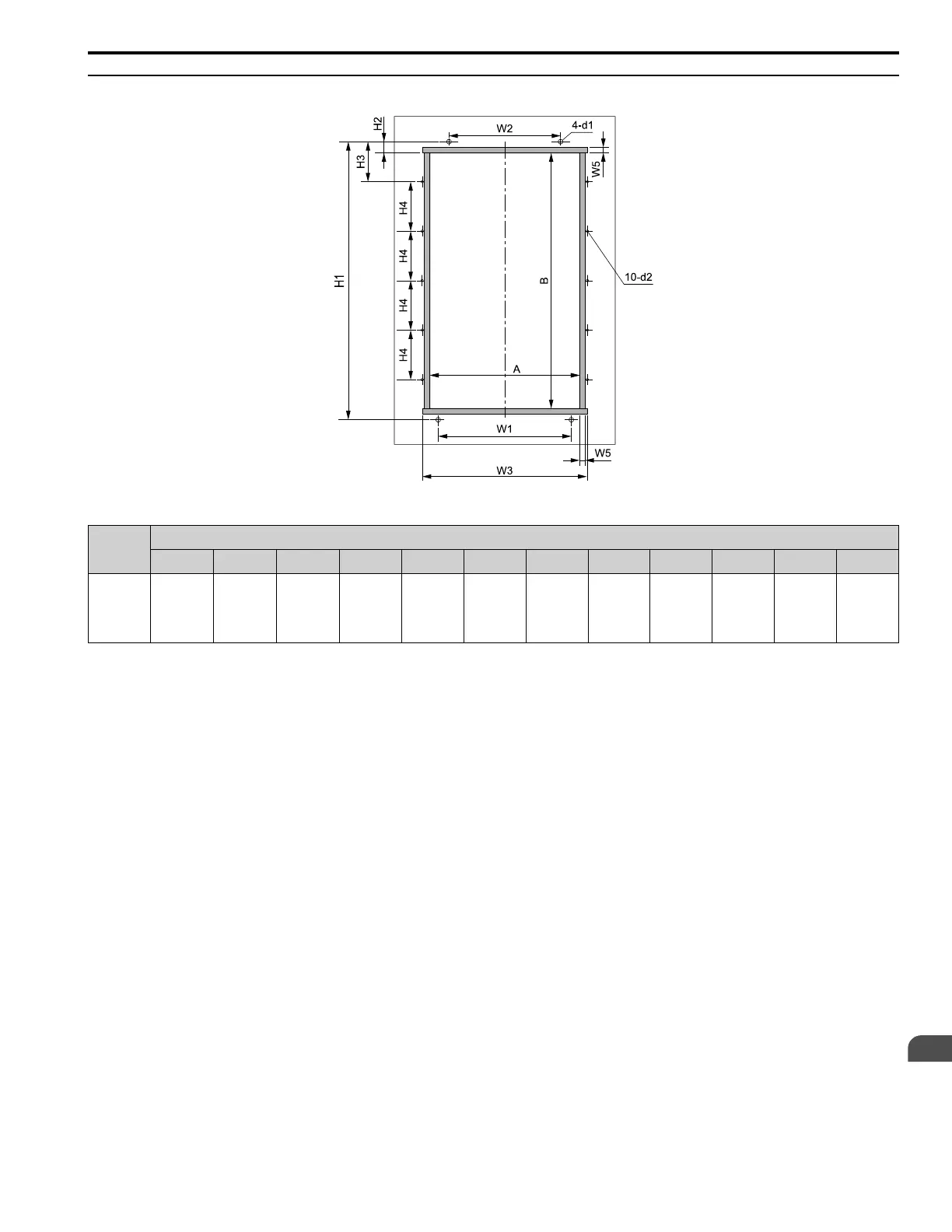

Figure 3.11 Panel Cut-Out Dimension Diagram 5
Model
Dimensions mm (in)
W1 W2 W3 W5 H1 H2 H3 H4 A B d1 d2
2360, 2415
4371, 4414
5192 - 5289
T371, T414
370
(14.57)
310
(12.20)
466
(18.35)
7
(0.28)
773
(30.43)
31.5
(1.24)
106.5
(4.19)
140
(5.51)
414
(16.30)
710
(27.95)
M12 M5
