7.9 Checking Settings
It is recommended that the setting conditions (set values) be checked before
starting a measurement. Setting checks can be made on any of the following
Measure screens (using the F4 key).
LIST, POWER, INTEGRATE, DEMAND, and ZOOM
TOP
MENU
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F 1
F 2 F 3 F 4 F 5
DISP COPY
RANGE
F 1 F 1
This section describes the setting check procedure taking the List screen as an
example.

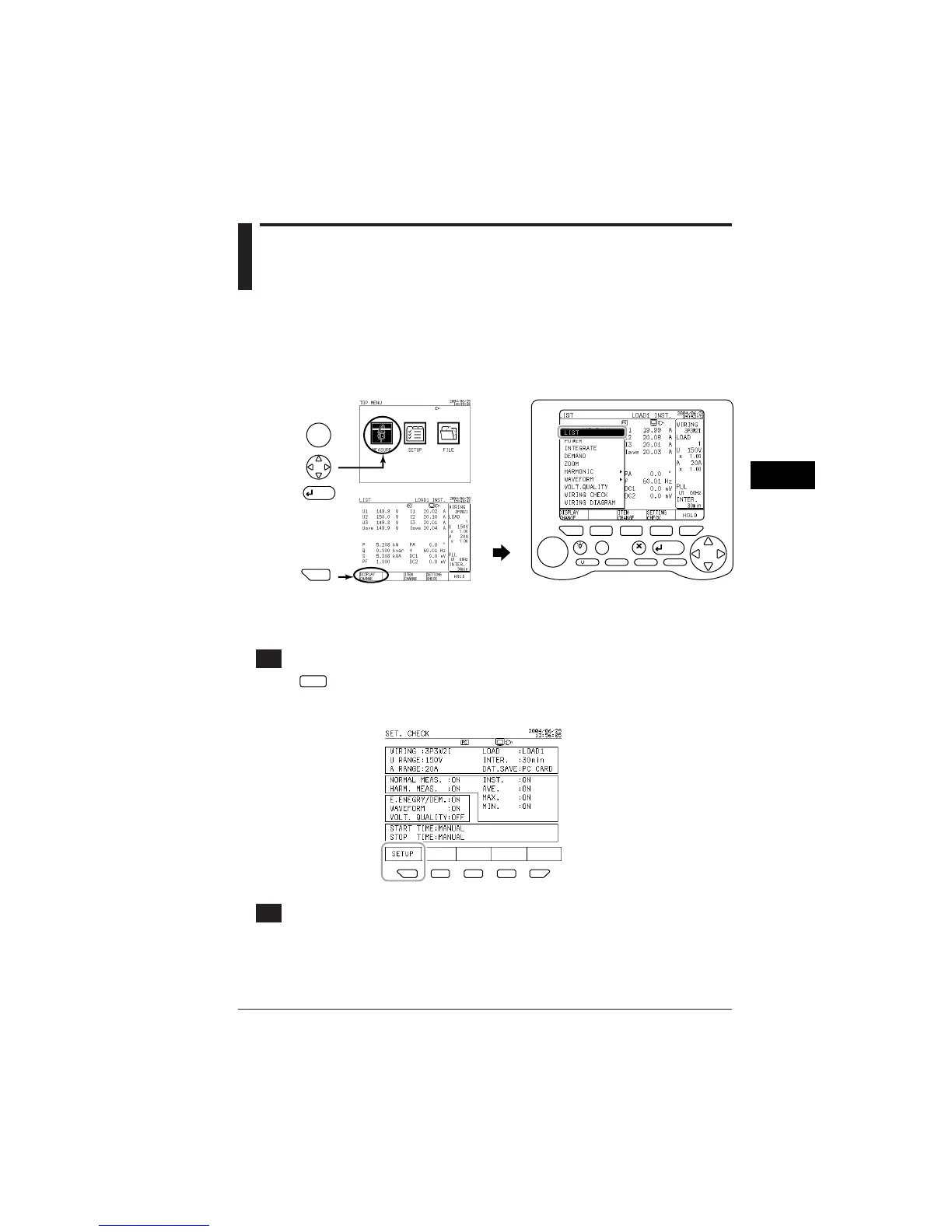

[ 1 Displaying a Setting Check screen
F4
Press the F4 key.
The setting information is displayed.
F5
F4
F3
F2
F1
[ 2 Checking the setting information
Check if settings are correct.
The selective items of the settings required are contained in the setting check sheet in the
“Quick setup Manual”. It may be useful in grasping the setting conditions and making
accurate settings in the field without wasting time.
