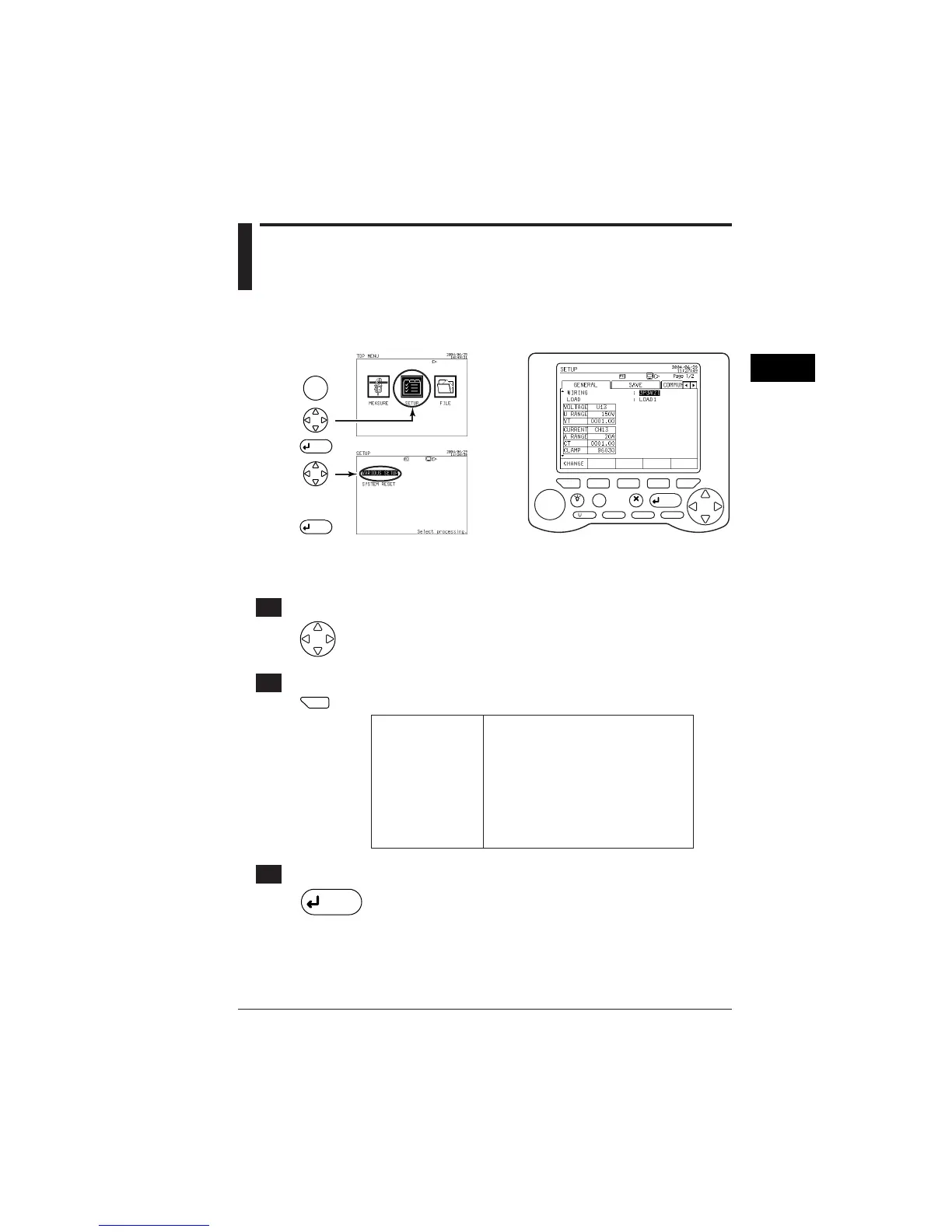

4.3 Setting up Wiring
Wiring can be set up on the GENERAL 1/2 screen.
● General 1/2
TOP
MENU
ENTER
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
● Changing Wiring
1 Using the Up and Down cursor key, select WIRING (highlighted).
2 Press the F1 key (CHANGE).
F
1
F
1
The wiring selection window appears.
3P3W+1P3W
3P4W4I
3P4W
3P3W3I
3P3W2I
1P3W3I
1P3W
1P2W
Scott connection
Three-phase four-wire four-current
Three-phase four-wire
Three-phase three-wire three-current
Three-phase three-wire two-current (Default)
Single-phase three-wire three-current
Single-phase three-wire
Single-phase two-wire
3 Press the ENTER key.
ENTER
This causes the wiring selection window to close, bringing you to the
GENERAL screen.
The selected wiring is indicated.
SEE ALSO
For more information on settings, see Section 6.2, General Settings 1/2, in Chapter 6,
Configuring Settings.
