13-8
IM CW240E

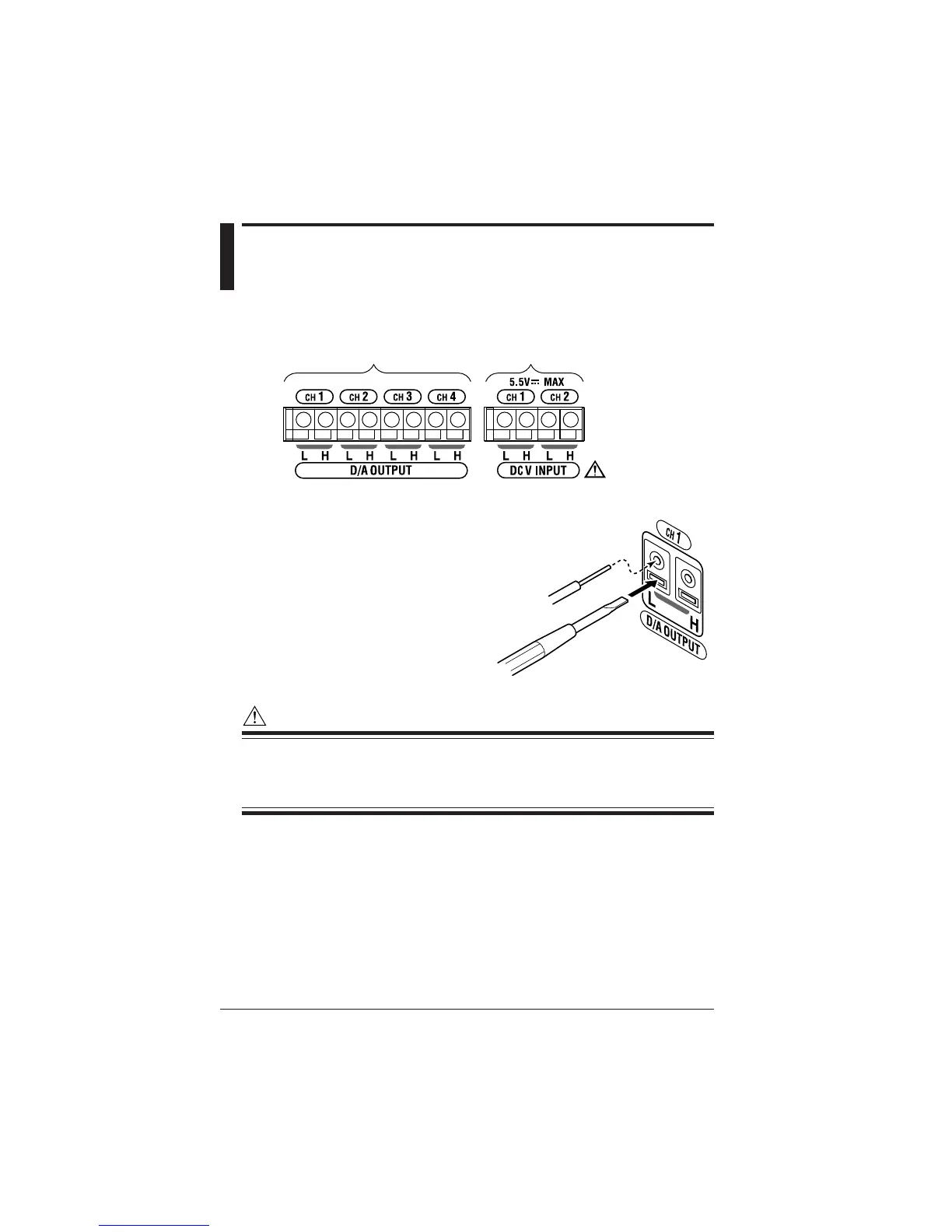

13.3 Connecting Analog Input/
Output Terminals
Terminal Diagram
Analog Output Terminals Analog Input Terminals
Connection Method
<1>
Insert the signal line while pressing the
rectangular portion at the bottom of the
terminal with a flathead screwdriver, etc.
<2>
The signal line is secured when the
screwdriver is removed.
CAUTION
The input circuit may be damaged if voltage exceeding the allowable input
voltage range (-0.5 to 5.5 V) of the signal input terminal is input.
Be careful not to mistake the input terminal and the output terminal when
making connections.
Usable Signal Lines
Suitable wiring : Solid wire φ1.0 (AWG18); Stranded wire 0.75 mm
2
Usable wiring : Solid wire φ0.4 to 1.0 (AWG26 18)
Stranded wire 0.3 to 0.75 mm
2
(AWG22 20)
Strand diameter φ0.18 or higher
Standard stripped wire length 10 mm
Signal line
Flathead screwdriver, etc.
