5.1 About Status Reports
Status Reports

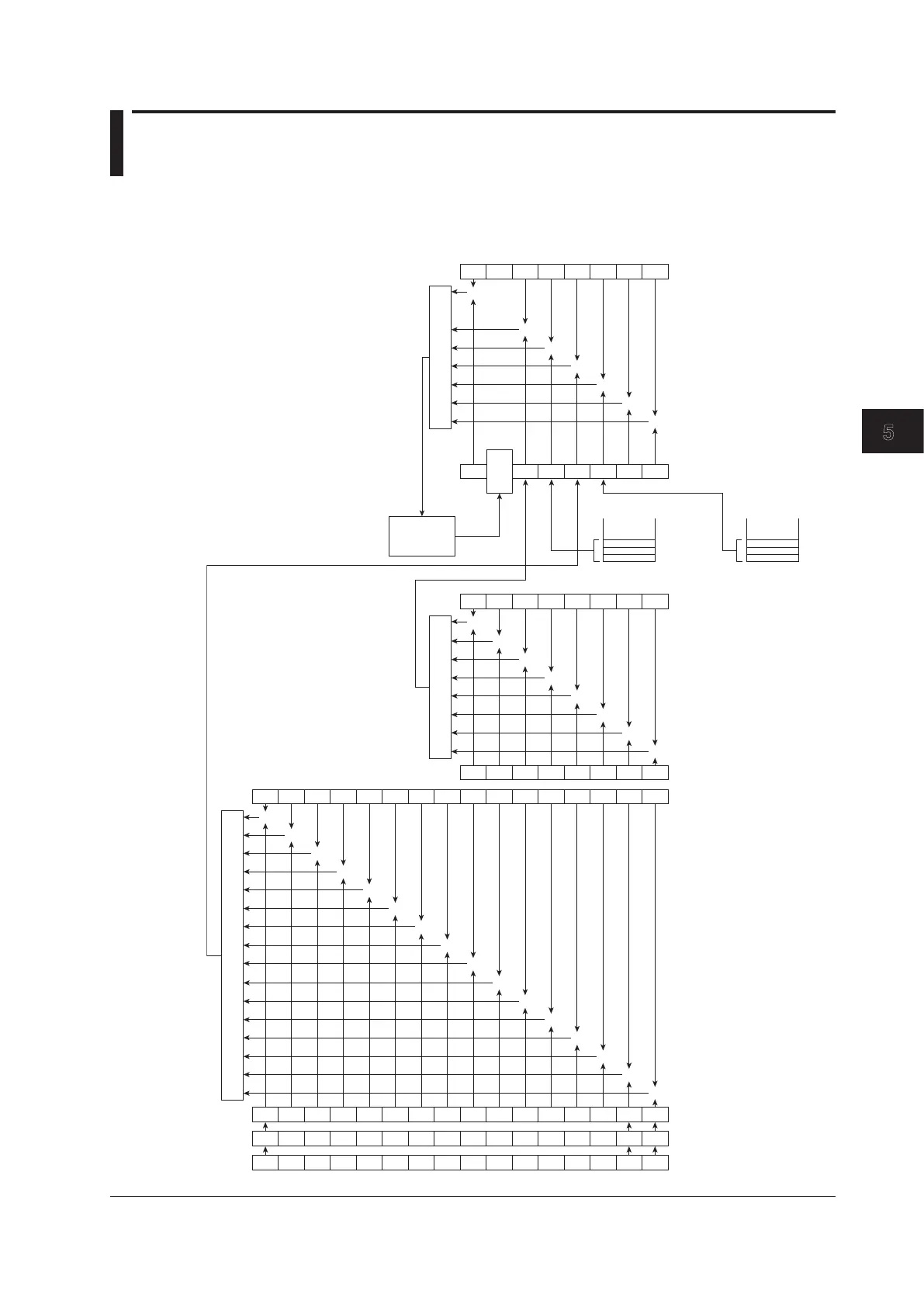

The figure below shows the format of status reports that are read by serial polling. This status report
format is an extended version of the status report format defined in IEEE 488.2-1992.
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Condition register
Transition filter
Extended event register
&
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 Extended event enable
register
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
7 6 5 4 3 2 1 0 Standard event register
&
&
&
&
&
&
&
&
7 6 5 4 3 2 1 0 Standard event enable
register
OR
OR
7 6 ESB MAV EES EAV 1 0 Status byte
MSS
RQS
Output
queue
Error
queue
&
&
&
&
&
&
&
7 6 5 4 3 2 1 0 Service request enable
register
OR
Service
request
occurrence
