JOHNSON CONTROLS
106
FORM 150.67-NM2
ISSUE DA
TE: 01/31/2019
SECTION 5 – TECHNICAL
DA
T
A
TECHNICAL DA
T
A
– CLEARANCES
(1.3 m)
(2 m)
(2 m)
(2 m)
NOTES:
1. No obstructions allowed above the unit.
2. Only one adjacent wall may be higher than the unit.
3.
Adjacent units should be 10 feet (3 Meters) apart.
LD10506

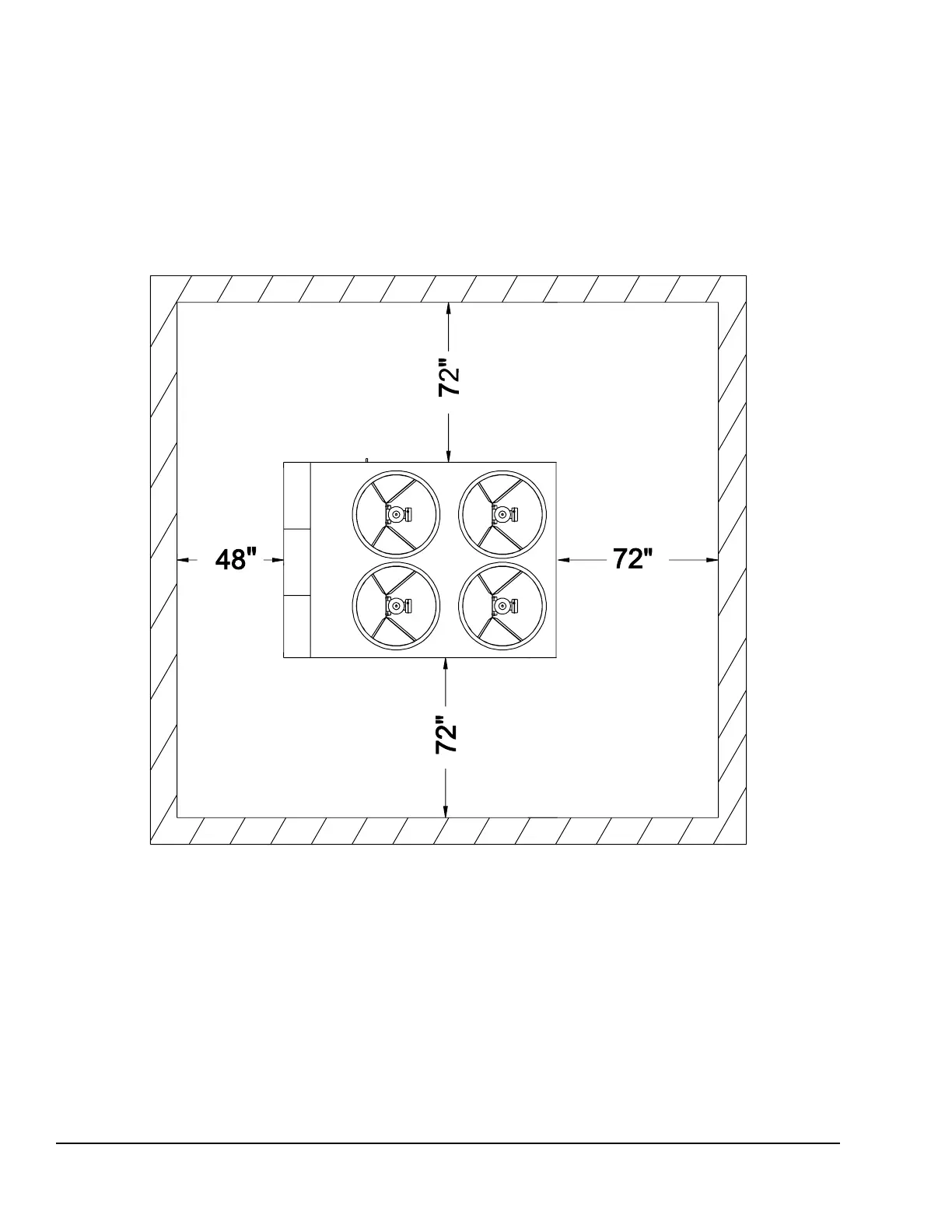

FIGURE 40 -
UNIT CLEARANCES –
ALL
MODELS
