York YCAL0043 Installation Operation & Maintenance

JOHNSON CONTROLS
36
FORM 150.67-NM2
ISSUE DATE: 01/31/2019
SECTION 4 – INSTALLATION
SINGLE-POINT SUPPLY CONNECTION
TERMINAL BLOCK, NON-FUSED DISCONNECT SWITCH OR CIRCUIT BREAKER

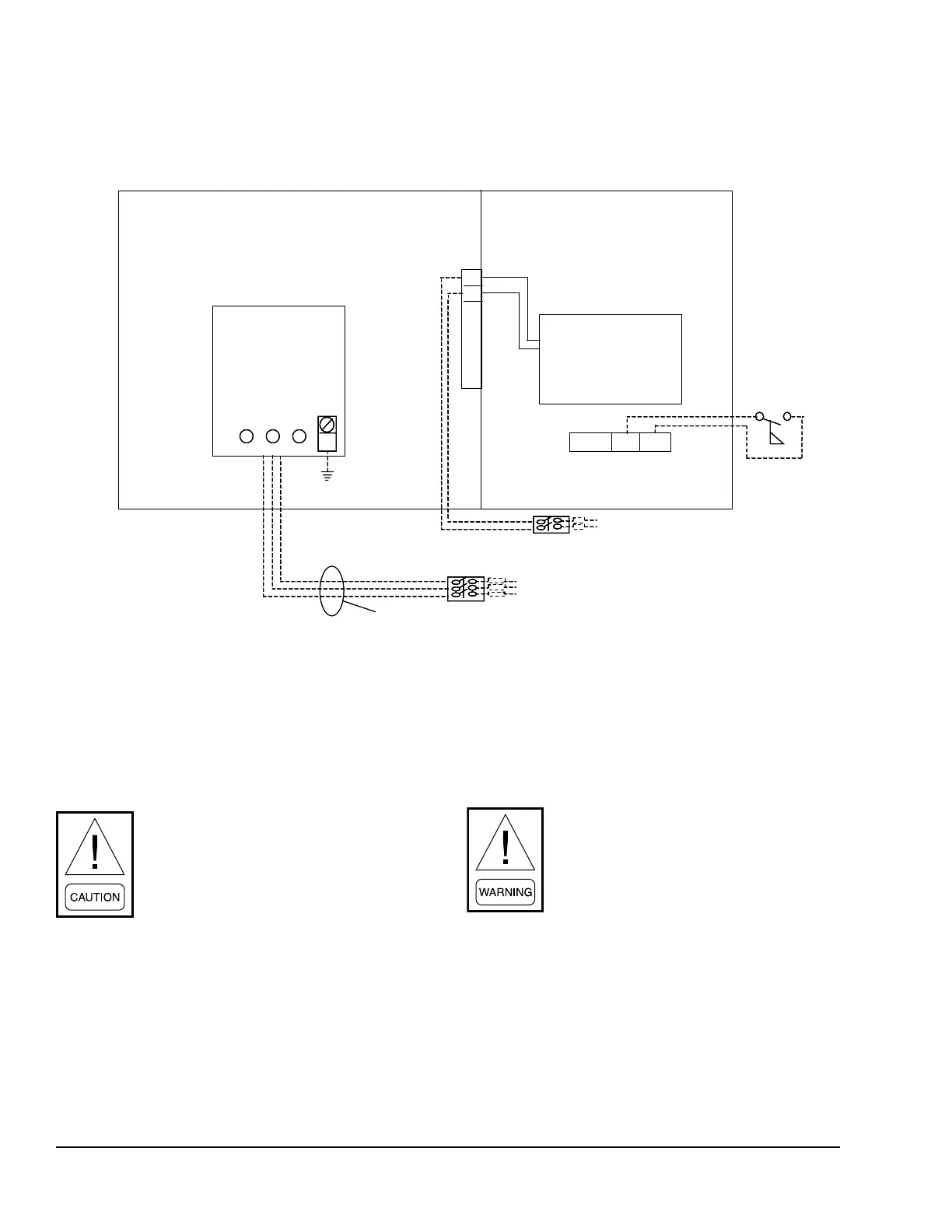

FIGURE 7 - SINGLE-POINT SUPPLY CONNECTION – TERMINAL BLOCK, NON-FUSED DISCONNECT
SWITCH OR CIRCUIT BREAKER (0043 – 0066)
Electrical Notes and Legend on page 53
LD07719
Power PanelControl Panel
Terminal Block,
NF Disconnect SW
or Circuit Breaker
1L11L2 1L3
GRD
MICROPANEL
2
L
CTB2
13 14
CTB1
Field Provided Unit Power Supply
Field Provided 120- 1-60
Micropanel Power Supply if Control
Transformer not Supplied
Flow Switch
See electrical note 9
Power PanelControl PanelPower PanelControl Panel
Terminal Block,
NF Disconnect SW
or Circuit Breaker
1L11L2 1L31L11L2 1L3
GRDGRDGRD
MICROPANEL
2
L
CTB2
2
L
CTB2
13 1413 14
CTB1
Field Provided Unit Power Supply
Field Provided 120- 1-60
Micropanel Power Supply if Control
Transformer not Supplied
Flow Switch
See electrical note 9
It is possible that multiple sources of
power can be supplying the unit power
panel. To prevent serious injury or death,
the technician should verify that NO
LETHAL VOLTAGES are present inside
the panel AFTER disconnecting power,
PRIOR to working on equipment.
The unit evaporator heater uses 120VAC.
Disconnecting 120VAC power from the
unit, at or below freezing temperatures,
can result in damage to the evaporator
and unit as a result of the chilled liquid
freezing.
