JOHNSON CONTROLS
107
SECTION 5 – TECHNICAL DATA
FORM 150.67-NM2
ISSUE DATE: 01/31/2019
5
GENERAL
Weights of specific chiller models vary significantly as
options are added. As a result, total weights, weights at
individual isolator positions, and actual isolator selec-
tion at each position cannot be published due to the
vast number of possible combinations. This informa-
tion will be available when the specific chiller/ option
selection is made from the local Johnson Controls sales
office. Be aware, weights may change with each op-
tion along with possible isolator changes. Weights and
isolators may need to be recalculated when the option
selections are changed.
Whenever the isolator option is ordered, the isolators
will be shipped loose with the chiller. Packed with
the isolators and also in the control panel informa-
tion packet is a drawing and table specifically for each
chiller, based on the option selection. The drawing
and table will be similar to the ones shown below. The
drawing will show the isolator locations along with the
weight in pounds and kilograms at the specific loca-
tion, isolator position, and location measurements for
each isolator.

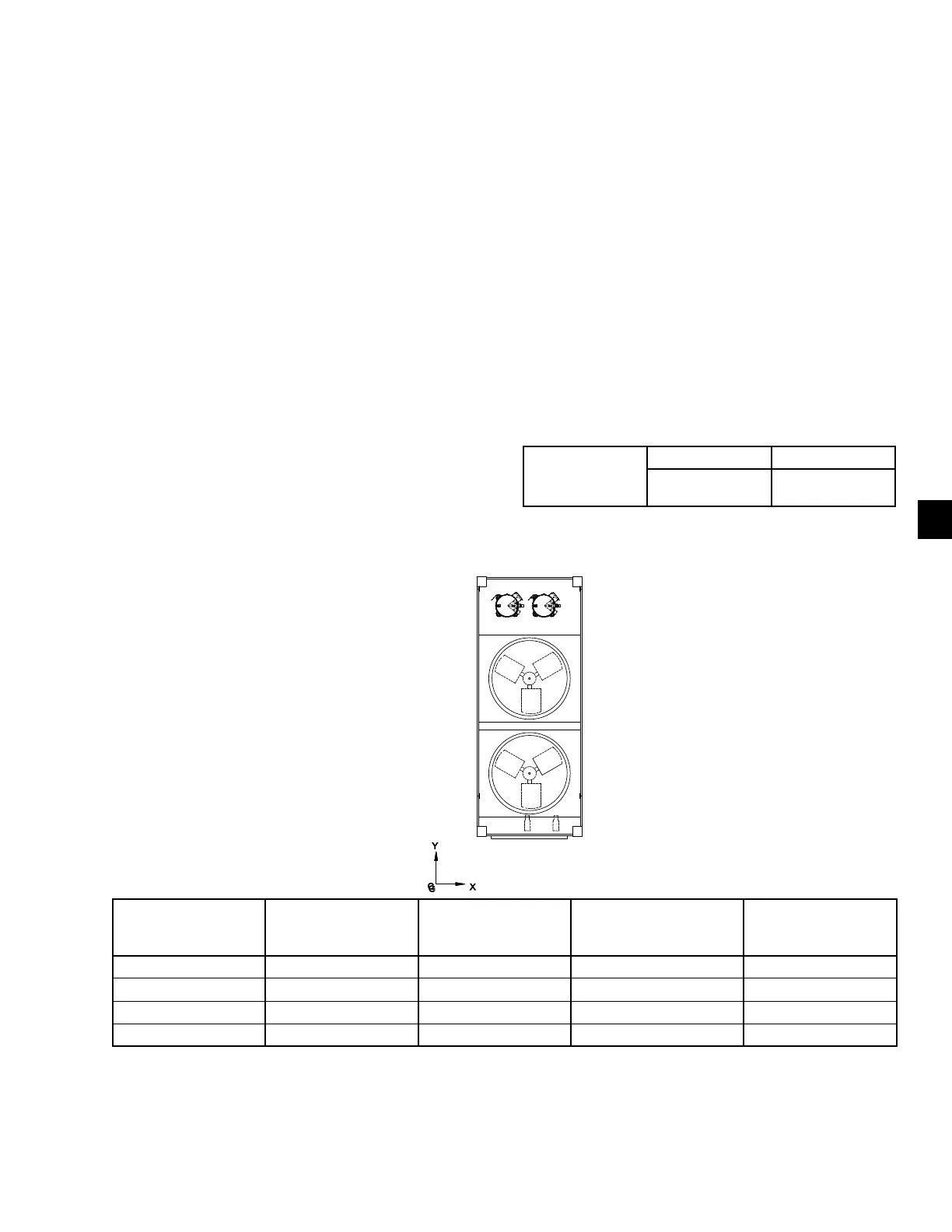

WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS
YCAL0019 – 0033 (WITHOUT PUMP PACKAGE OPTION)
LOCATION
X DISTANCE
INCHES / MM
Y DISTANCE
INCHES / MM
VENDOR NUMBER
OPERATING
WEIGHT
LBS / (KG)
R1 43.22 (1097.8) 4.94 (125.5) CIP-B-450 / RED 276 (125.2)
L1 1.09 (27.7) 4.94 (125.5 CIP-B-450 / RED 284 (128.8)
R2 43.22 (1097.8) 92.25 (2343.2) CIP-B-276750 / WHITE 407 (184.6)
L2 1.09 (27.7) 92.25 2343.2) CIP-B-750 / WHITE 418 (189.6)
“SAMPLE PRINTOUT” TYPICAL OF THE INFORMATION SUPPLIED IN THE ISOLATOR PACKAGE AND IN THE CHILLER PANEL LITERA-
TURE PACKET
Isolator Locations
Order No: 069528190101
Line No: 1
L1
L2
R1
R2
CONTROL
PANEL END
Y
C
X
ISOLATORS
Unit Shipping Wt
(display on unit
data nameplate)
kg lbs
617 1361
