JOHNSON CONTROLS
76
FORM 150.67-NM2
ISSUE DATE: 01/31/2019
SECTION 5 – TECHNICAL DATA
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable
operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airow
patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts;
however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 6'; rear
to wall – 6'; cooler end to wall – 4'0"; coil end to wall – 6'; top – no obstructions allowed; distance between adjacent units – 10'. No more
than one adjacent wall may be higher than the unit. 1" nominal deection isolators (not shown) will increase overall unit height by 6".

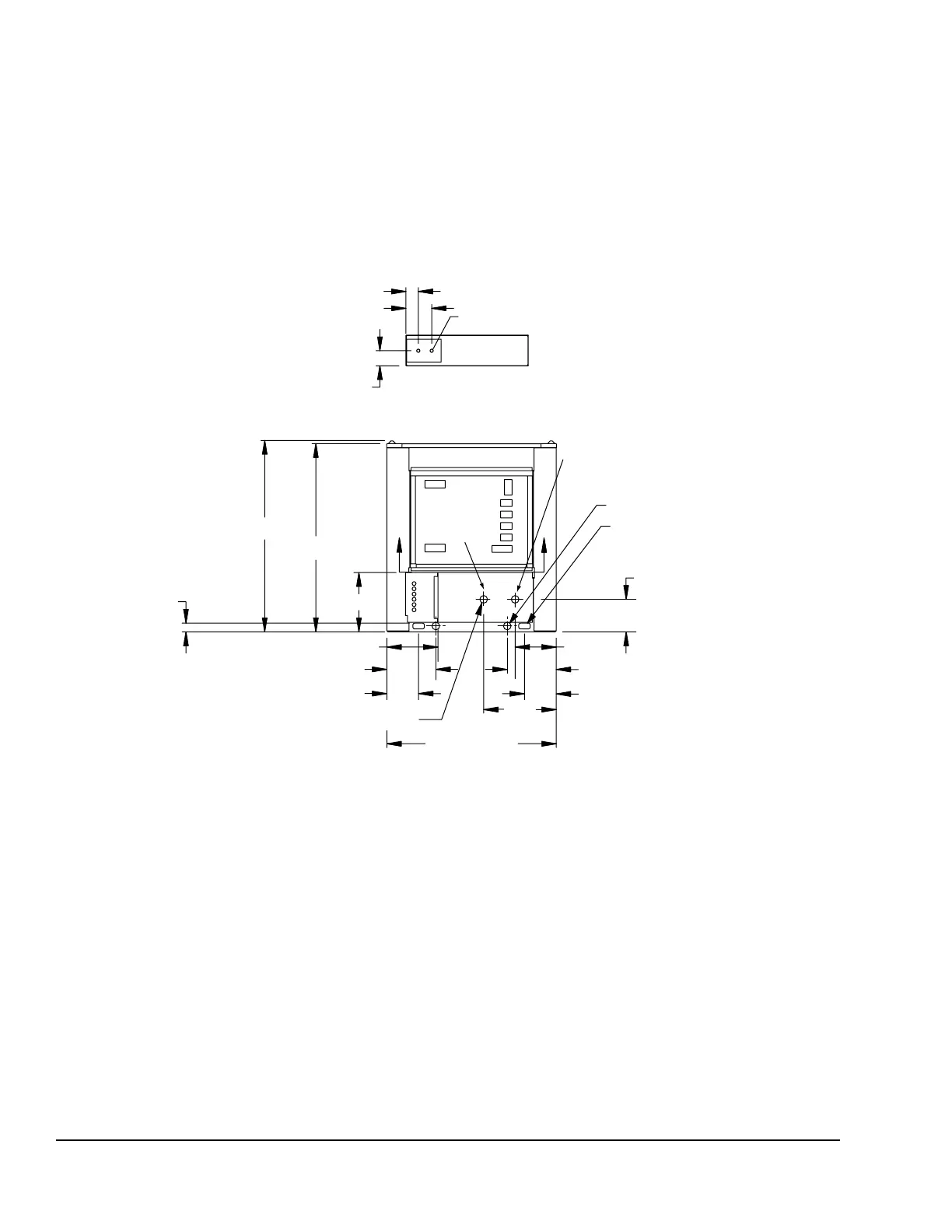

DIMENSIONS – YCAL0033 (ENGLISH)
44 5/16"
BASE WIDTH
50 1/16"
49 1/4"
6 3/4"
3 1/4"
3 15/16"
LEFT END
BOTTOM OF PANEL
7/8" TYP.
VIEW B-B
POWER: SINGLE POINT SUPPLY WITH TERMINAL BLOCK
19"
10 3/4"
8 1/2"
2" ANSI/AWWA C-606
CONN (typ)
B
B
15 1/2"
TO ACCESS PANEL 13 3/8"
2 1/4"
8 5/16"
12 13/16"
8 5/16"
12 13/16"
2" DIA
(2) 3.0 X 1.50
RIGGING HOLES
BOTH ENDS
IN
OUT
FIGURE 25 - DIMENSIONS - YCAL0033
