JOHNSON CONTROLS
112
FORM 201.30-ICOM1 (519)
ISSUE DATE: 05/22/2019
SECTION 6 - OPERATION
PROGRAM KEY

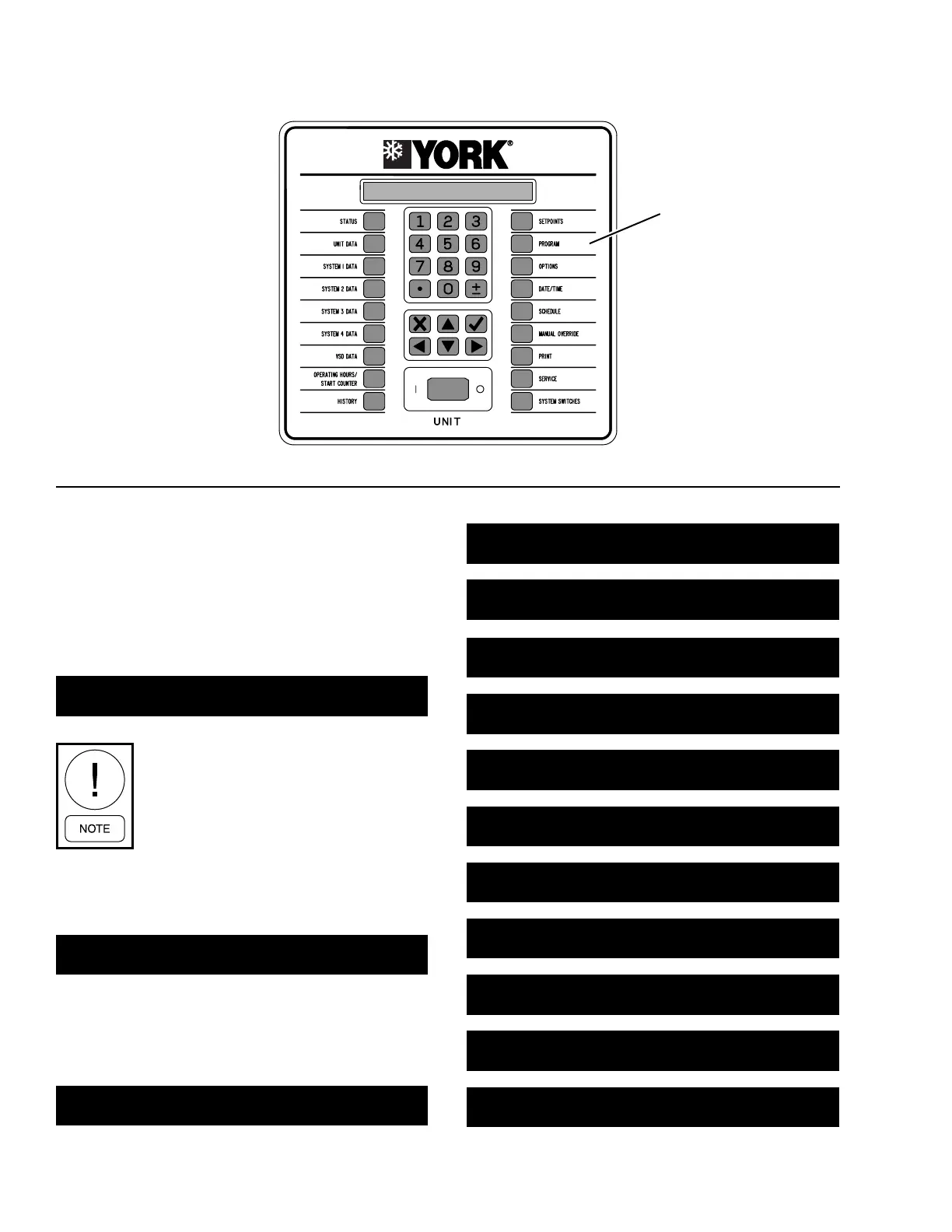

FIGURE 55 - PROGRAM KEY
PROGRAM KEY
PROGRAM ◄DEF 103 LO 30 HI 103
MOTOR CURRENT LIMIT = ###% FLA
PROGRAM ◄DEF 100 LO 30 HI 100
PULLDOWN CURRENT LIMIT = ###% FLA
PROGRAM ◄DEF 0 LO 0 HI 255
PULLDOWN CURRENT LIMIT TIME = ### MIN
PROGRAM ◄DEF 240.0 LO 150.0 HI 250.0
MOTOR TEMPERATURE UNLOAD = ###.#°F
PROGRAM ◄DEF 33.0 LO 20.0 HI 80.0
SYS CONDENSER LEVEL SETP = ##.# %
PROGRAM ◄DEF 0 LO 0 HI 7
REMOTE UNIT ID NUMBER = #
PROGRAM HEAD PRESSURE CONTROL
◄► XXXXXXXXXXXXXXXXXXXXXXXXXXXX
PROGRAM ◄DEF XXXXX LO XXXXX HI XXXXX
HEAD PRESSURE SETPOINT = XX.X PSID
PROGRAM ◄DEF 5.0 LO 0.1 HI 50.0
HPC KP = XX.X SEC
PROGRAM ◄DEF 50 LO 10 HI 1000
HPC TI = XX.X SEC
PROGRAM ◄DEF 0 LO 0 HI 60
HPC TD = XX.X SEC
Press the PROGRAM key to modify the following nu-
meric operating parameters, which are displayed when
this key is pressed.
Service Mode Access:
Service level password access to the Operator keypad
can be achieved by following the steps below:
PROGRAM MODE ####
PRESS ENTER KEY TO CONTINUE
Unit switch must be in the off position.
Press the PROGRAM key to change display to allow
numerical access. Press the key (ENTER) to allow
final access.
PROGRAM MODE ####
PRESS ENTER KEY TO CONTINUE
Press the key to display the first programmable se-
lection, where DEF is the default, LO is the low limit,
and HI is the high limit. Refer to Table 38 on page
113 for the programmable operating parameters.
PROGRAM ◄DEF 36.0 LO 5.0 HI 36.0
CHILLED LIQ LEAVE TMP CUTOUT = ##.#°F
To Next Page
