York YVWA User Manual

JOHNSON CONTROLS
74
FORM 201.30-ICOM1 (519)
ISSUE DATE: 05/22/2019
SECTION 4 - TECHNICAL DATA

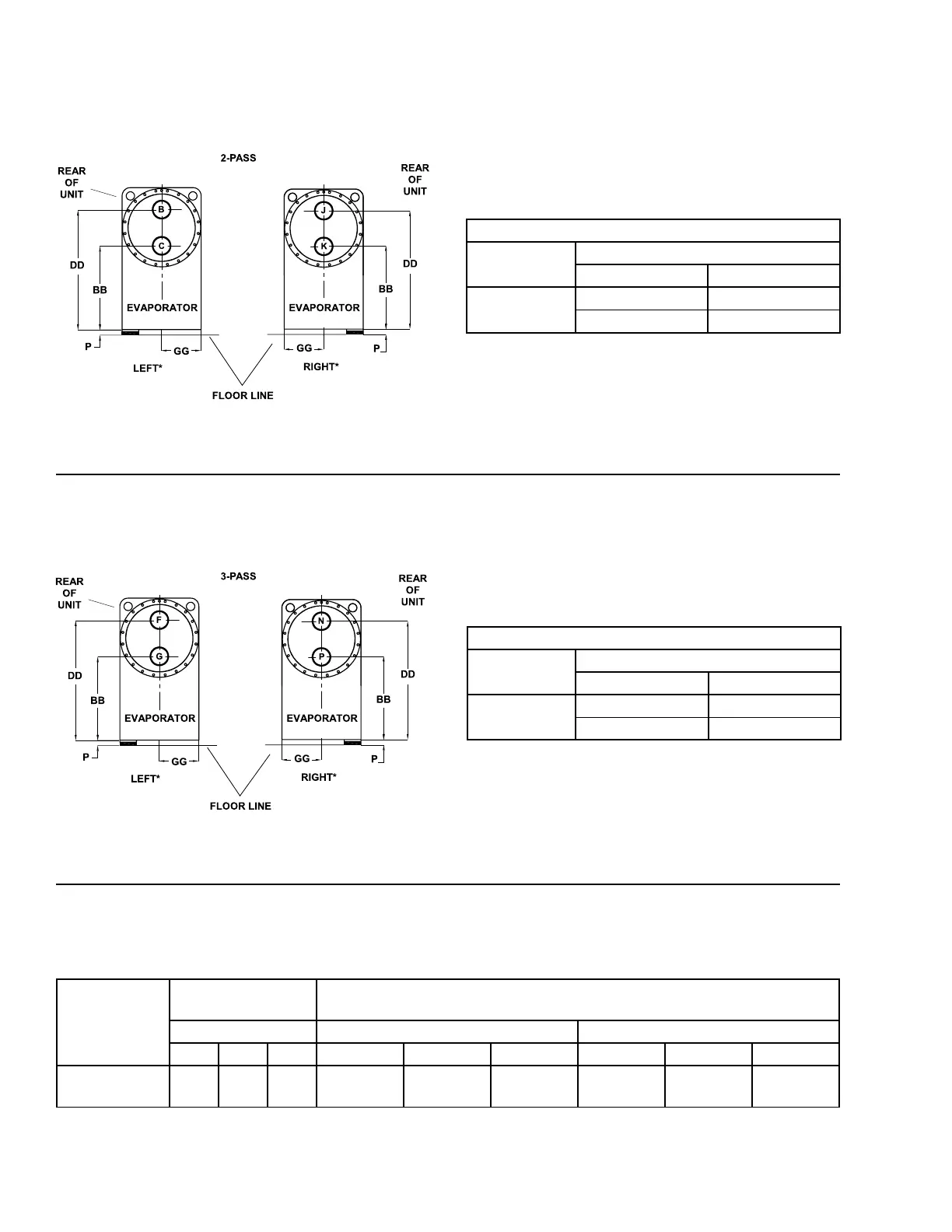

DIMENSIONS OF EVAPORATOR NOZZLE ARRANGEMENTS
NOZZLE ARRANGEMENTS
NUMBER
OF PASSES
EVAPORATOR (PIN 5,6)
IN OUT
2
C B
K J
FIGURE 40 - EVAPORATORS - COMPACT WATER BOXES (2-PASS)
NOZZLE ARRANGEMENTS
NUMBER
OF PASSES
EVAPORATOR (PIN 5,6)
IN OUT
3
G N
P F
FIGURE 41 - EVAPORATORS - COMPACT WATER BOXES (3-PASS)
TABLE 25 - EVAPORATOR NOZZLE DIMENSIONS - IN (MM)
EVAPORATOR
SHELL CODE
(PIN 5)
NOZZLE PIPE SIZE
EVAPORATOR
NOZZLE DIMENSIONS ft - in (mm)
NO. OF PASSES 2-PASS 3-PASS
1 2 3 BB DD GG BB DD GG
B, C, D 8" 5" 5"
2'-4-27/32"
(733)
3'-4-9/32"
(1023)
1'-2-11/32"
(365)
2'-4-27/32"
(-733)
3'-4-9/32"
(1023)
1'-2-11/32"
(365)
LD16477a
LD16477b
