Zebra LI4278 Product Reference Guide

USER PREFERENCES & MISCELLANEOUS SCANNER OPTIONS 5 - 21
FN1 Substitution Values
Key Category Parameter # 103
Decimal Value Parameter # 109
The Wedge and USB HID Keyboard hosts support a FN1 Substitution feature. Enabling this substitutes any
FN1 character (0x1b) in an EAN128 bar code with a value. This value defaults to 7013 (Enter key).
When using host commands to set the FN1 substitution value, set the key category parameter to 1, then set
the 3-digit keystroke value. See the ASCII Character Set table for the current host interface for the desired
value.
To select a FN1 substitution value via bar code menus:
1. Scan the bar code below.
2. Locate the keystroke desired for FN1 Substitution in the ASCII Character Set table for the current host
interface. Enter the 4-digit ASCII Value by scanning each digit in Appendix D, NUMERIC BAR CODES.
To correct an error or change the selection, scan Cancel.
To enable FN1 substitution for USB HID keyboard, scan the Enable FN1 Substitution bar code on page 5-21.

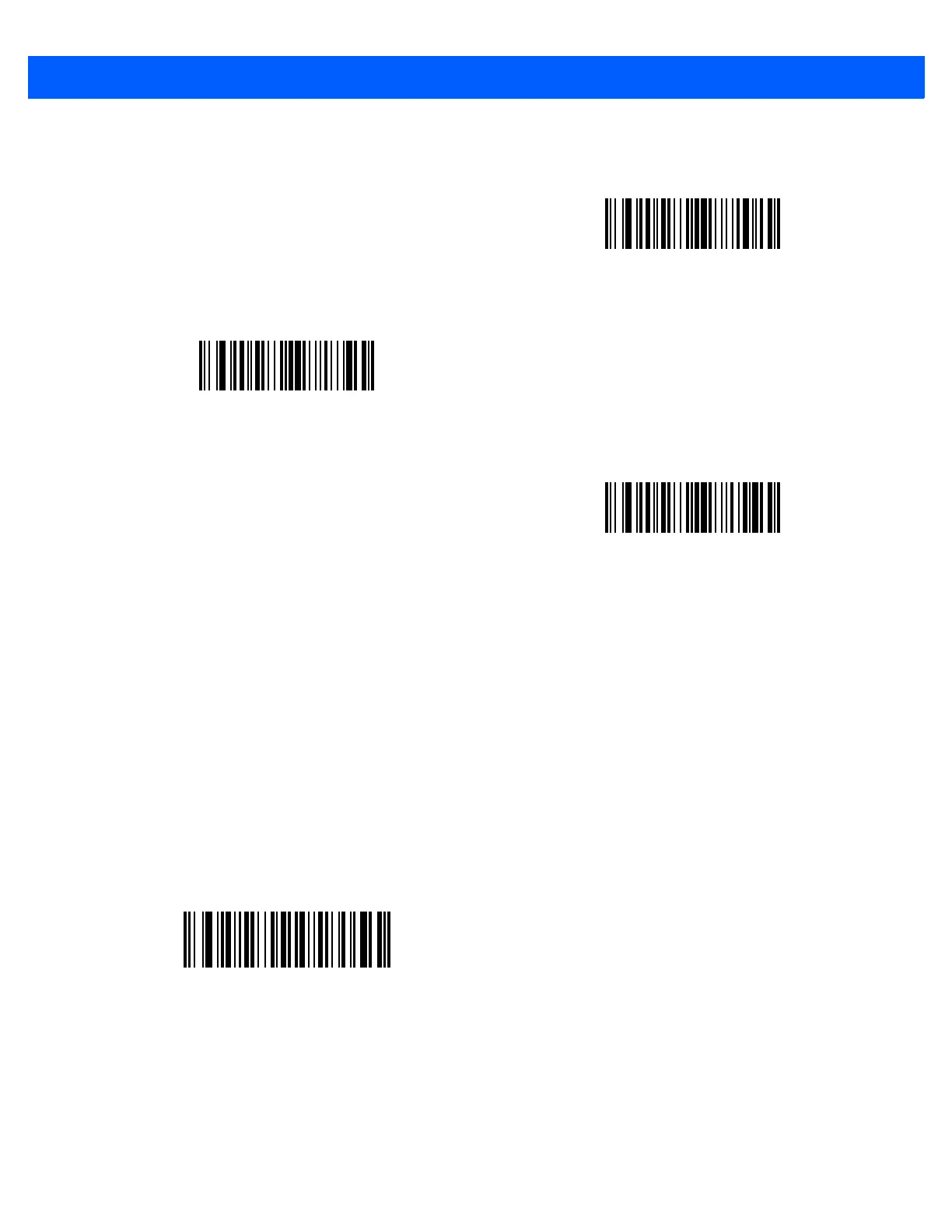

Scan Data Transmission Format (continued)
<PREFIX> <DATA> <SUFFIX 1>
(05h)
<PREFIX> <DATA> <SUFFIX 2>
(06h)
<PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2>
(07h)
Set FN1 Substitution Value

Zebra LI4278 Specifications

General

Wavelength	617 nm
Read rate (max)	547 reads/s
Decoding standards	UPC/EAN, UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN, UCC Coupon, ISBT 128, Code 39, Code 93, Matrix 2/5, Interleavd 2/5, Discrete 2/5, Codabar, MSI Chinese 2/5, GS1
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Bluetooth	Yes
Bluetooth version	2.1+EDR
Standard interfaces	USB, RS-232, RS-485
Operating time	4320 min
Maximum operating distance	100 m
Certification	FCC, ICES, IEC, RoHS, EN, UL
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	186 mm
Width	70 mm
Height	98 mm
Weight	224 g
