Zebra LI4278 Product Reference Guide

8 - 2 LI4278 Product Reference Guide
Connecting a USB Interface

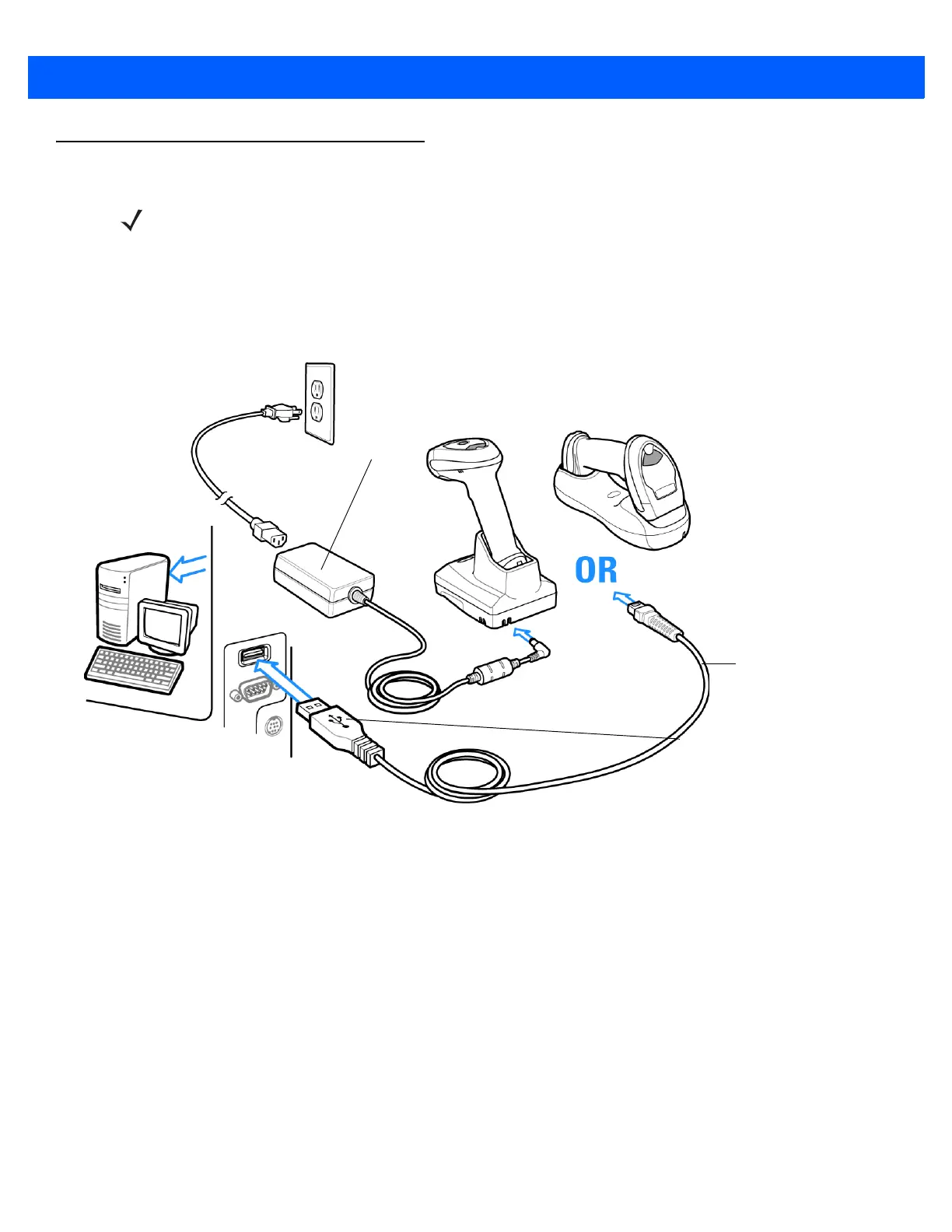

Figure 8-1 USB Connection
The linear imager scanner cradle connects with USB capable hosts including:
• Desktop PCs and Notebooks
• Apple™ iMac, G4, iBooks (North America only)
• IBM SurePOS terminals
• Sun, IBM, and other network computers that support more than one keyboard.
The following operating systems support the linear imager scanner cradle through USB:
• Windows 98, 2000, ME, XP
• MacOS 8.5 and above
• IBM 4690 OS.
The linear imager scanner cradle also interfaces with other USB hosts which support USB Human Interface
Devices (HID).
NOTE See Chapter 4, RADIO COMMUNICATIONS for information about linear imager scanner/cradle pairing
and wireless communication
The linear imager scanner must be connected to the cradle for the host parameter setting to take effect.
When the linear imager scanner is not connected to a cradle, and a host parameter bar code is scanned,
a long low/long high beep sequence sounds.
Interface Cable
USB Series A Connector
Power Supply

Zebra LI4278 Specifications

General

Wavelength	617 nm
Read rate (max)	547 reads/s
Decoding standards	UPC/EAN, UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN, UCC Coupon, ISBT 128, Code 39, Code 93, Matrix 2/5, Interleavd 2/5, Discrete 2/5, Codabar, MSI Chinese 2/5, GS1
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Bluetooth	Yes
Bluetooth version	2.1+EDR
Standard interfaces	USB, RS-232, RS-485
Operating time	4320 min
Maximum operating distance	100 m
Certification	FCC, ICES, IEC, RoHS, EN, UL
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	186 mm
Width	70 mm
Height	98 mm
Weight	224 g
