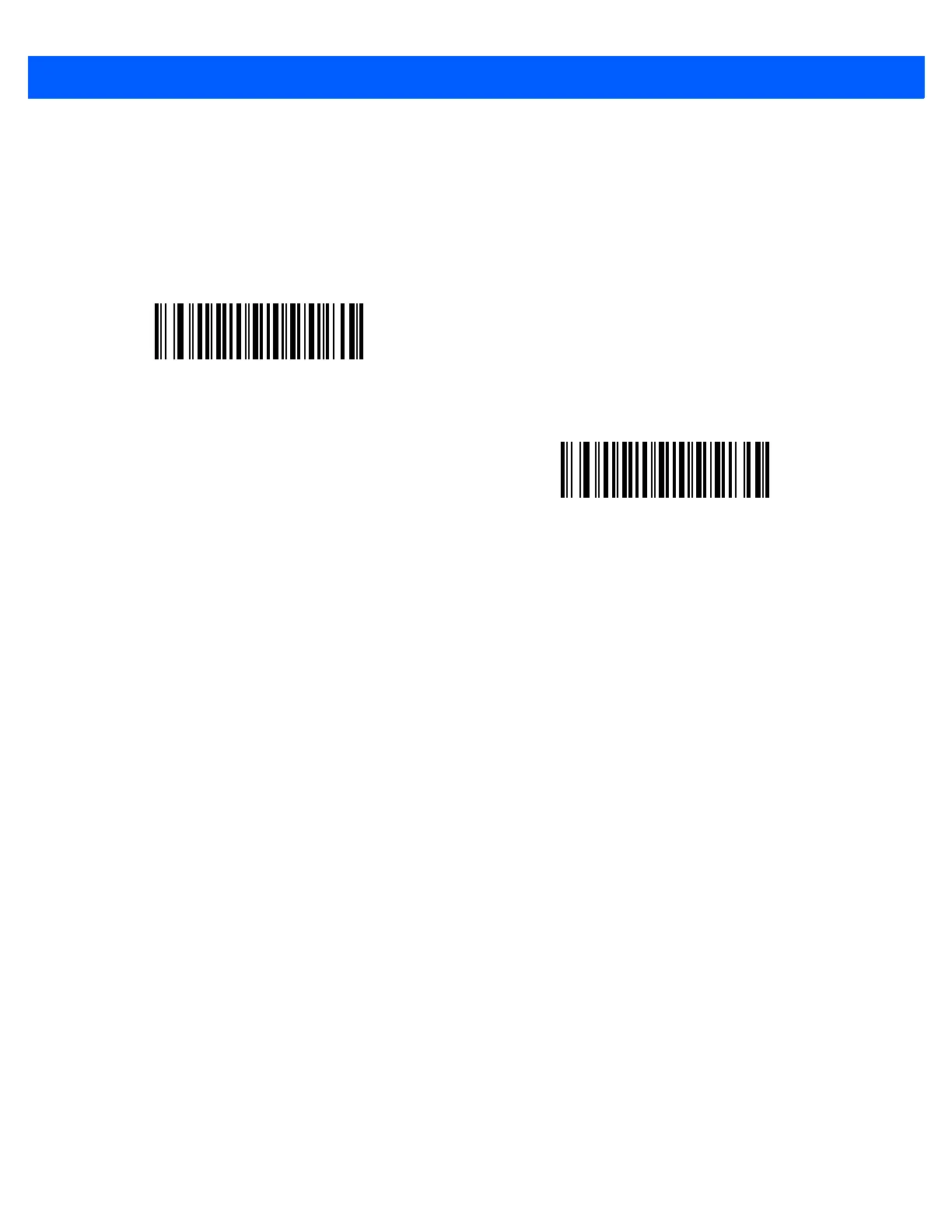

11 - 44 LI4278 Product Reference Guide

Convert I 2 of 5 to EAN-13

Parameter # 82

Enable this parameter to convert 14-character I 2 of 5 codes to EAN-13, and transmit to the host as EAN-13.

To accomplish this, the I 2 of 5 code must be enabled, and the code must have a leading zero and a valid

EAN-13 check digit.

Convert I 2 of 5 to EAN-13 (Enable)

(01h)

*Do Not Convert I 2 of 5 to EAN-13 (Disable)

(00h)

LI42781
