Zebra LI4278 Product Reference Guide

11 - 56 LI4278 Product Reference Guide
Matrix 2 of 5
Enable/Disable Matrix 2 of 5
Parameter # 618
To enable or disable Matrix 2 of 5, scan the appropriate bar code below.
Set Lengths for Matrix 2 of 5
Parameter # 619, 620
The length of a code refers to the number of characters (i.e., human readable characters), including check
digit(s) the code contains. Set lengths for Matrix 2 of 5 to any length, one or two discrete lengths, or lengths
within a specific range. The default is 14 (One Discrete Length).
• One Discrete Length - Select this option to decode only Matrix 2 of 5 symbols containing a selected
length. Select the length using the numeric bar codes in Appendix D, NUMERIC BAR CODES. For
example, to decode only Matrix 2 of 5 symbols with 14 characters, scan Matrix 2 of 5 - One Discrete
Length, then scan 1 followed by 4. To correct an error or to change the selection, scan Cancel on
page D-3.
• Two Discrete Lengths - Select this option to decode only Matrix 2 of 5 symbols containing either of
two selected lengths. Select lengths using the numeric bar codes in Appendix D, NUMERIC BAR
CODES. For example, to decode only Matrix 2 of 5 symbols containing either 2 or 14 characters, select
Matrix 2 of 5 - Two Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to
change the selection, scan Cancel on page D-3.
• Length Within Range - Select this option to decode a Matrix 2 of 5 symbol with a specific length
range. Select lengths using the numeric bar codes in Appendix D, NUMERIC BAR CODES. For
example, to decode Matrix 2 of 5 symbols containing between 4 and 12 characters, first scan Matrix 2
of 5 - Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To
correct an error or change the selection, scan Cancel on page D-3.
• Any Length - Scan this option to decode Matrix 2 of 5 symbols containing any number of characters
within the linear imager scanner’s capability.

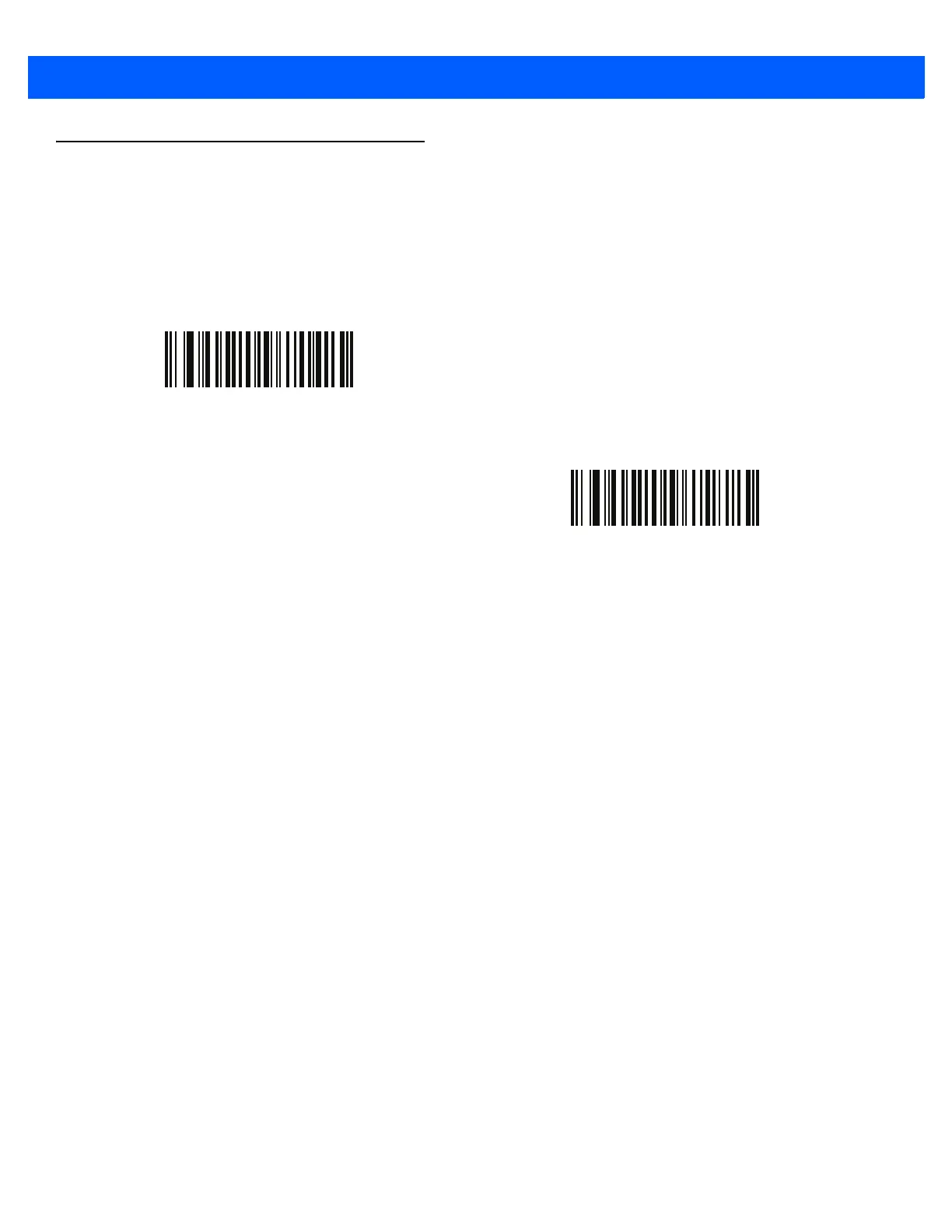

Enable Matrix 2 of 5
(01h)
*Disable Matrix 2 of 5
(00h)

Zebra LI4278 Specifications

General

Wavelength	617 nm
Read rate (max)	547 reads/s
Decoding standards	UPC/EAN, UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN, UCC Coupon, ISBT 128, Code 39, Code 93, Matrix 2/5, Interleavd 2/5, Discrete 2/5, Codabar, MSI Chinese 2/5, GS1
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 108000 lx
Bluetooth	Yes
Bluetooth version	2.1+EDR
Standard interfaces	USB, RS-232, RS-485
Operating time	4320 min
Maximum operating distance	100 m
Certification	FCC, ICES, IEC, RoHS, EN, UL
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	186 mm
Width	70 mm
Height	98 mm
Weight	224 g
