ELECTRO-HYDRAULIC SYSTEM

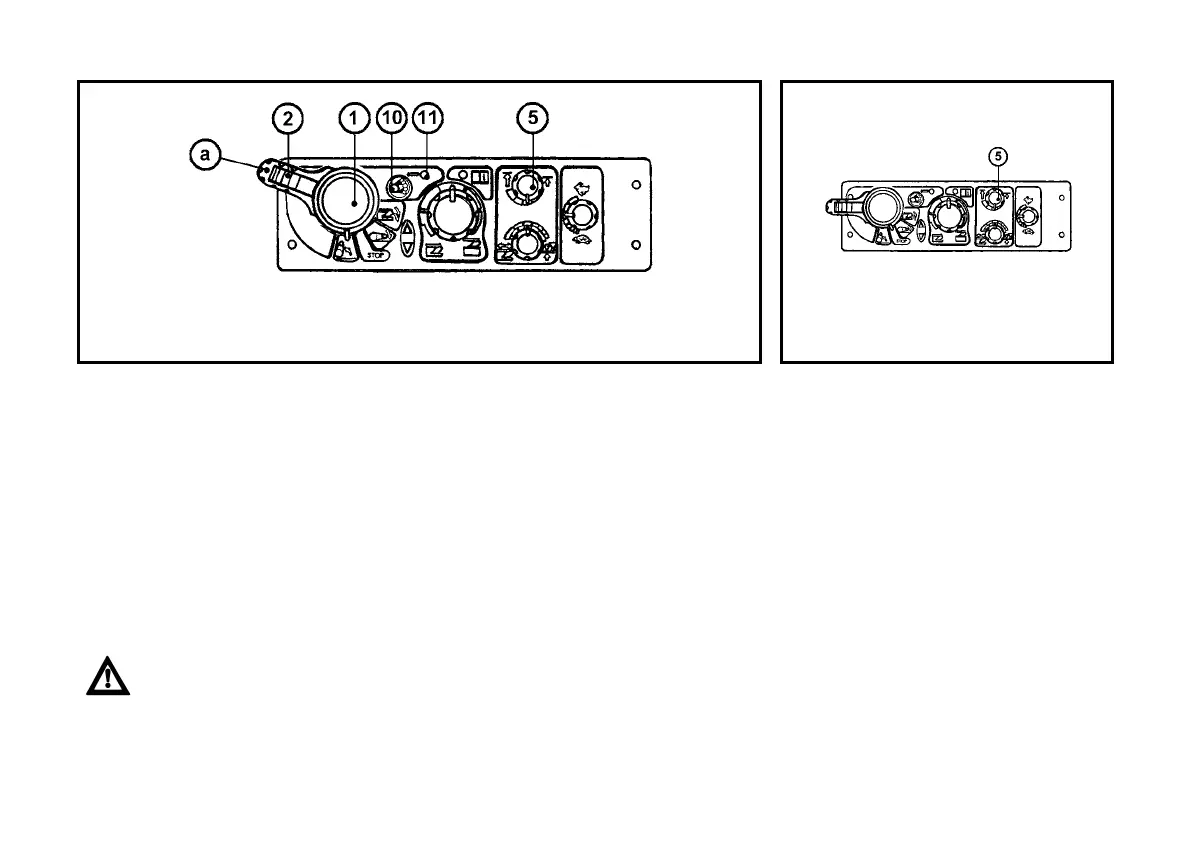

F_02_168 F_02_169
VIBRATION COMPENSATOR (DAMPER)
It is used during transport of a heavy implement attached to the rear three-point hitch.
After activation of the vibration compensator (10) the arms of the rear three-point
hitch sink by approx. 4%, which allows oscillation of the arms in the range of approx.
8% of the lift. The upward oscillation is always limited by the position of the upper po-
sition limiter (5).
Advantages of active dampening of vibrations during transport of a heavy implement
attached to the rear three-point hitch.
1. Increased operation safety (the steering axle is not unloaded so much
2. Stabilization of the transported implement
3. Reduced dynamic stress of the hydraulic system and the rear three-point hitch
During the adjustment of the hitch for a single-axle semi-trailer the vibration
compensator must be off.
LIMITATION OF THE UPPER
POSITION OF THE THREE-POINT
HITCH
It is activated with the control (5). The
limitation can be implemented in the up-
per half of the three-point hitch lift.
