CHANGE OF WHEELS TREAD
E502
SETTING OF STOPS ON THE FRONT
DRIVING AXLE

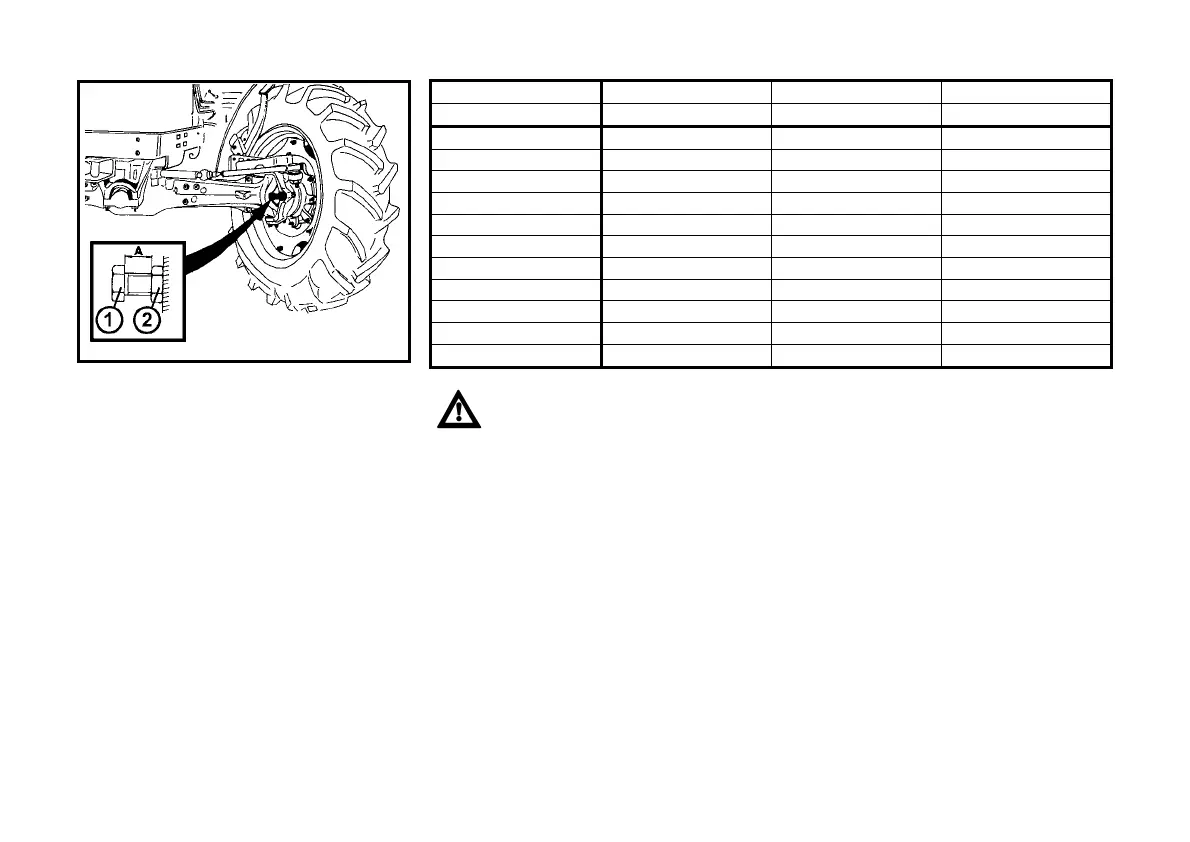

Carry out setting of the stops in case of
any change of front wheels tread of the
driving axle according to the tables after
loosening the nut (2) and screwing out or
screwing in the bolt (1) to the value “A“.
After setting the bolt (1) tighten the nut
(2) by a torque 100 to 150Nm.
Tire 11,2-24 12,4-24 13,6R24
Treads A (mm) A (mm) A (mm)
1525 60 61
1610 59
1620 46 55
1680 47
1690 50
1760 43
1770 39
1825 32
1835 34
1910 27
1920 27
In case of tractors equipped with a braked front axle and change of the front
wheels tread to the value 1,910mm or 1,920mm it is necessary to check the
distance between the threaded end of the stop screw and wheel hub after ad-
justment of the stop screw to the value 27mm.
This distance shall be at least 4mm!
