141
HITCHES
E453 E454 E455

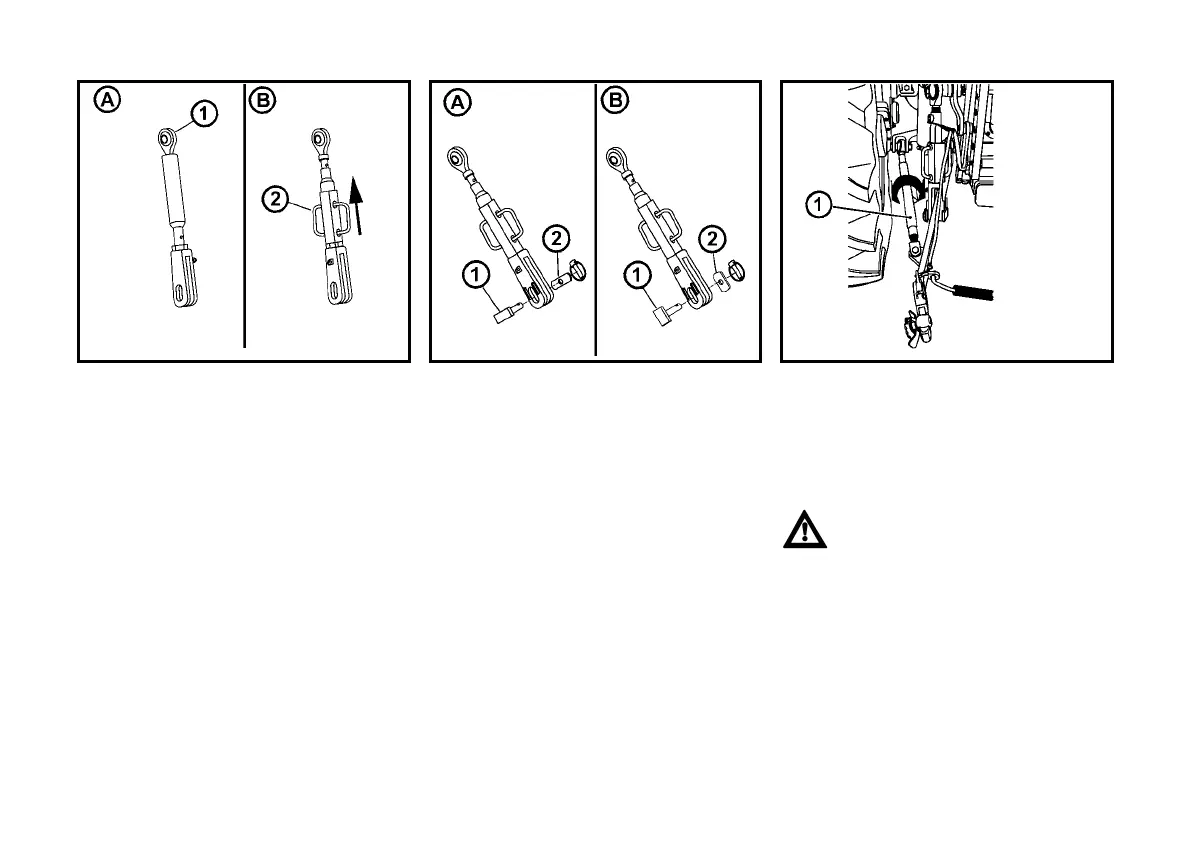

HEIGHT ADJUSTMENT OF LIFTING
PULL RODS
Lifting pull rod see fig. (A):
Perform adjustment by turning of the eye
(1) after disconnection of the upper end of
the lifting pull rod.
Lifting pull rod see fig. (B):
Pull out the arm cross (2) in direction of
the arrow and perform adjustment by
turning of the arm cross.
According to equipment of the tractor
both pull rods can be arranged as shown
on fig. (B)
FIXED AND FREE POSITION OF
LOWER HYDRAULIC PULL RODS
Fixed position of lower hydraulic pull
rods see fig. (A):
The pin head (1) and washer (2) are
mounted horizontally.
Free position of lower hydraulic pull rods
see fig.(B):
The pin head (1) and washer (2) are
mounted vertically.
Free position allows free coupling of the
tractor and implement. Both ends of the
pull rods may move freely each other in
this case.
LIMITING PULL RODS
The limiting pull rods (1) allow side
swings of the lower pull rods.
The left and right limiting pull rods can be
adjusted by turning of the pull rod pipe,
see the arrow.
Both limiting pull rods shall al-
ways be mounted on the tractor.
