ELECTRO-HYDRAULIC SYSTEM
P+13N011 P+11N014
OUTER HYDRAULIC CIRCUIT
It supplies pressure oil for hydraulic de-
vices on outer drives of hydraulics ended
with couplers. Coupler sockets with 12.5
mm bore are in accordance with the in-
ternational recommendation of ISO.

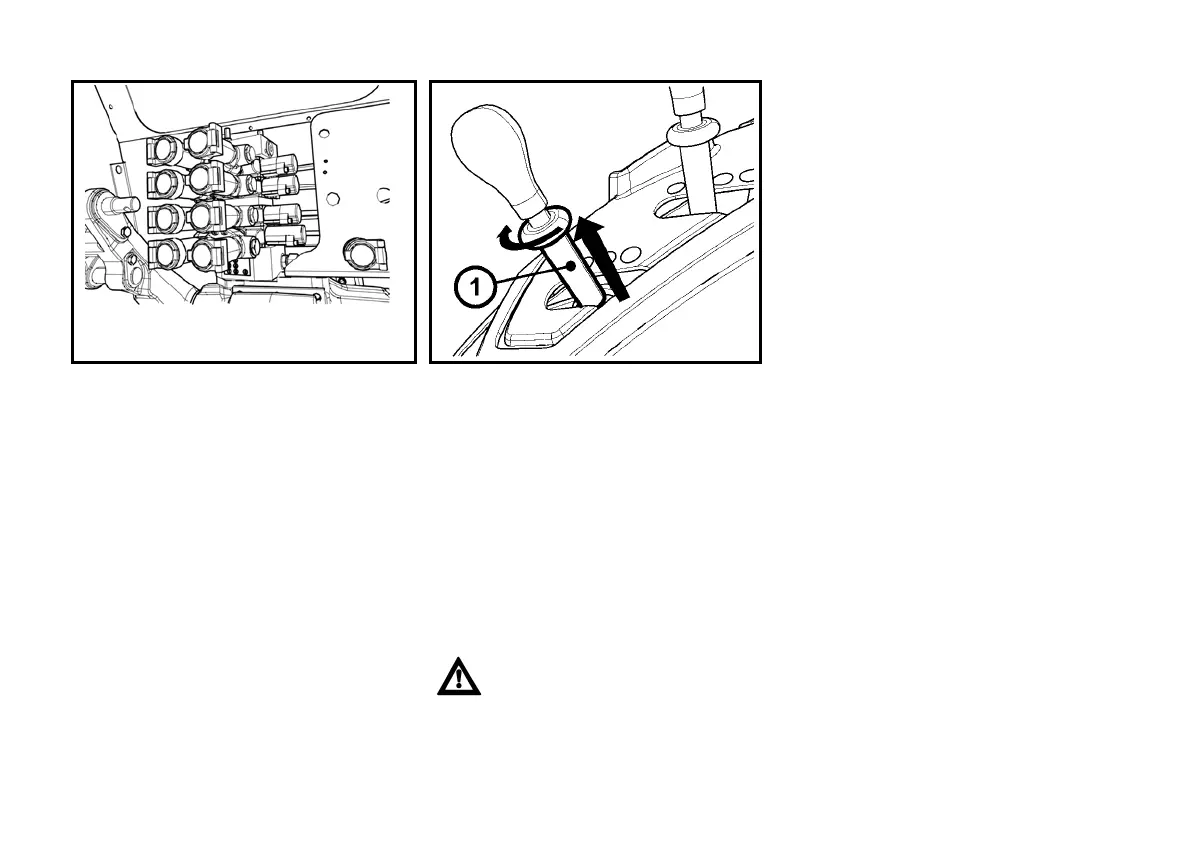

LOCKING CONTROL LEVERS
Outer hydraulic circuit control levers are
locked in neutral (N) position.
To unlock them, raise the lock control (1)
and turn it to a stop point in the direction
shown by the arrow.
To lock them again, move the levers to
neutral (N) position and turn the lock
control in the opposite direction than
shown by the arrow to a stop point and
push the control down. This locks the
lever in neutral position.
For safety reasons, always lock
outer hydraulic circuit levers in
neutral position (N).
