88
TRANSPORT USE
E307 E308 E312

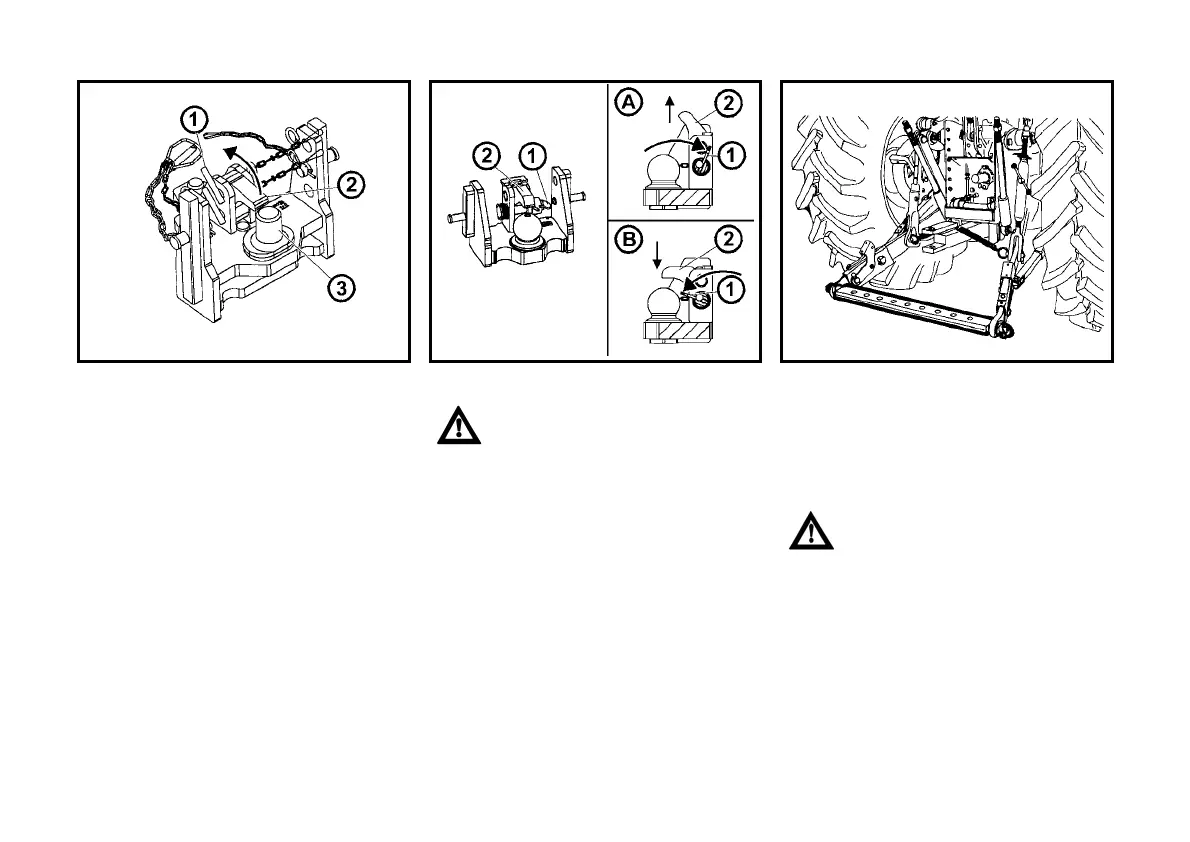

BRACKET MODULE OF PIVOTED
PULL BAR WITH FIXED PIN
Mounting and dismounting of the pivoted
pull bar should be performed as de-
scribed in the chapter “Pivoted pull bar”.
Coupling the pole eye to the fixed pin (3):
1. Unlock and dismount the pin (1).
2. Lift the locking wedge (2) in direction
of the arrow.
3. Couple the pole eye to the fixed pin
(3).
4. Return the locking wedge (2) to its in-
itial position and lock it using the pin
(1).
BRACKET MODULE WITH BALL Ø 80
The bracket with ø 80 is used on-
ly for coupling of trailers with a
coupling device designed for
balls ø 80.
Fig. (A) – Unlocking of the hitch:
Moving of the lever (1) in direction of the
arrow slides off the locking wedge (2).
Fig. (B) – Locking of the hitch. (B):
Moving of the lever (1) in direction of the
arrow slides in the locking wedge (2).
∗TOWING BAR
Height of the towing bar can be adjusted
within entire extent of the adjustable
height. Only those farming mechanisms
can be attached to the towing bar that
load it permanently downwards.
When working with the towing bar
dismount the multi-level hitch and
pivoted pull bar.
