36
GETTING TO KNOW THE TRACTOR
E116

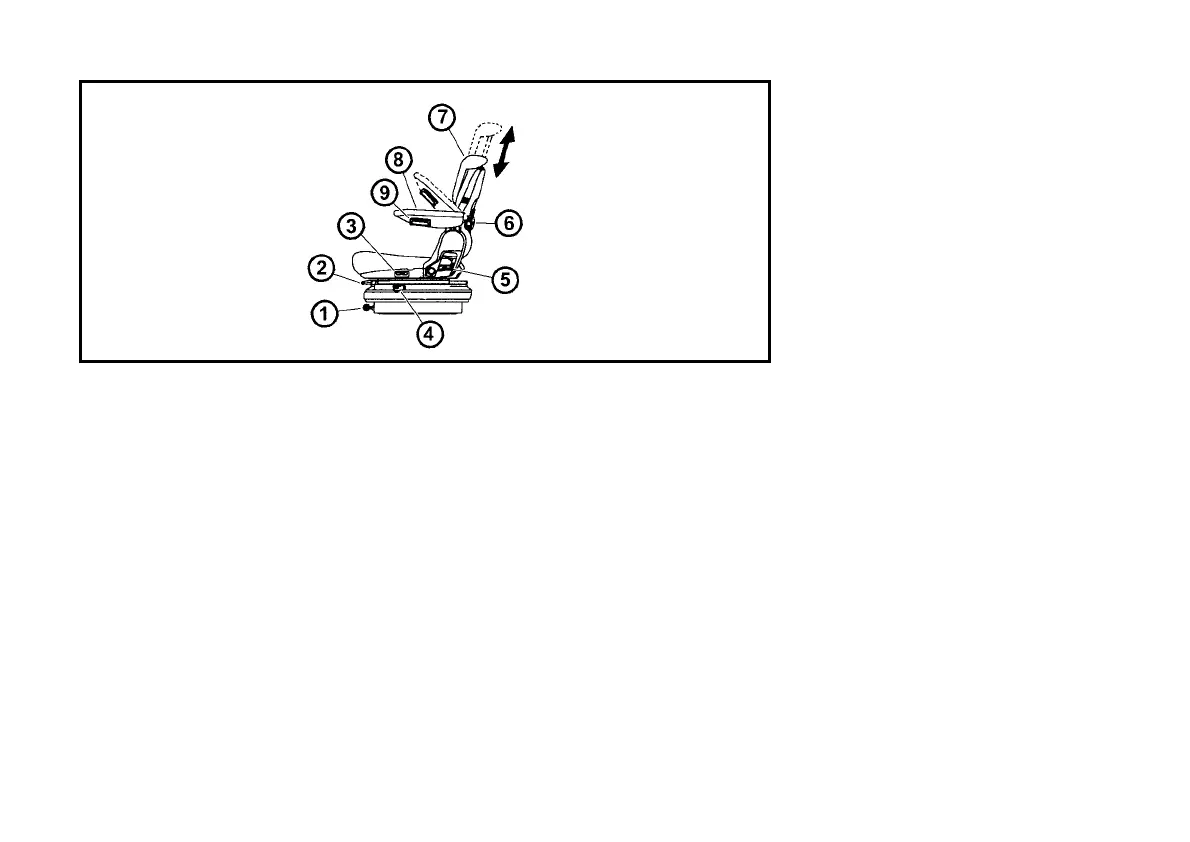

DRIVER’S SEAT GRAMMER MAXIMO
1. Lever for adjusting of cushioning of the seat according weight of the driver (ad-
justment by turning in direction as shown on the pictogram on the seat bellow).
2. Lever of longitudinal adjustment of the seat (located on the right side of the seat).
3. Turning of the seat (can be turned by 20° to both sides).
4. Control of adjustment of absorption of vibrations of the seat (tilting of the controller
forwards adjusts a floating position of the seat).
5. Control of adjustment of the seat inclination.
6. Control of adjustment of the back shape.
7. Height-adjustable backrest (pulling or pushing in direction of the arrow adjusts the
backrest within range 170mm).
8. Tiltable armrest.
9. Control of adjustment of the armrest (turning of the controller adjusts height of the
armrest).
DRIVER’S SEAT GRAMMER S
Here only items 1, 2 and 5 are used.
