97
DRIVE OF FARMING MACHINES
FH12N002
FACILITATING CONNECTION OF JOINT SHAFT OF AN AGGREGATED MACHI-
NE TO THE TRACTOR

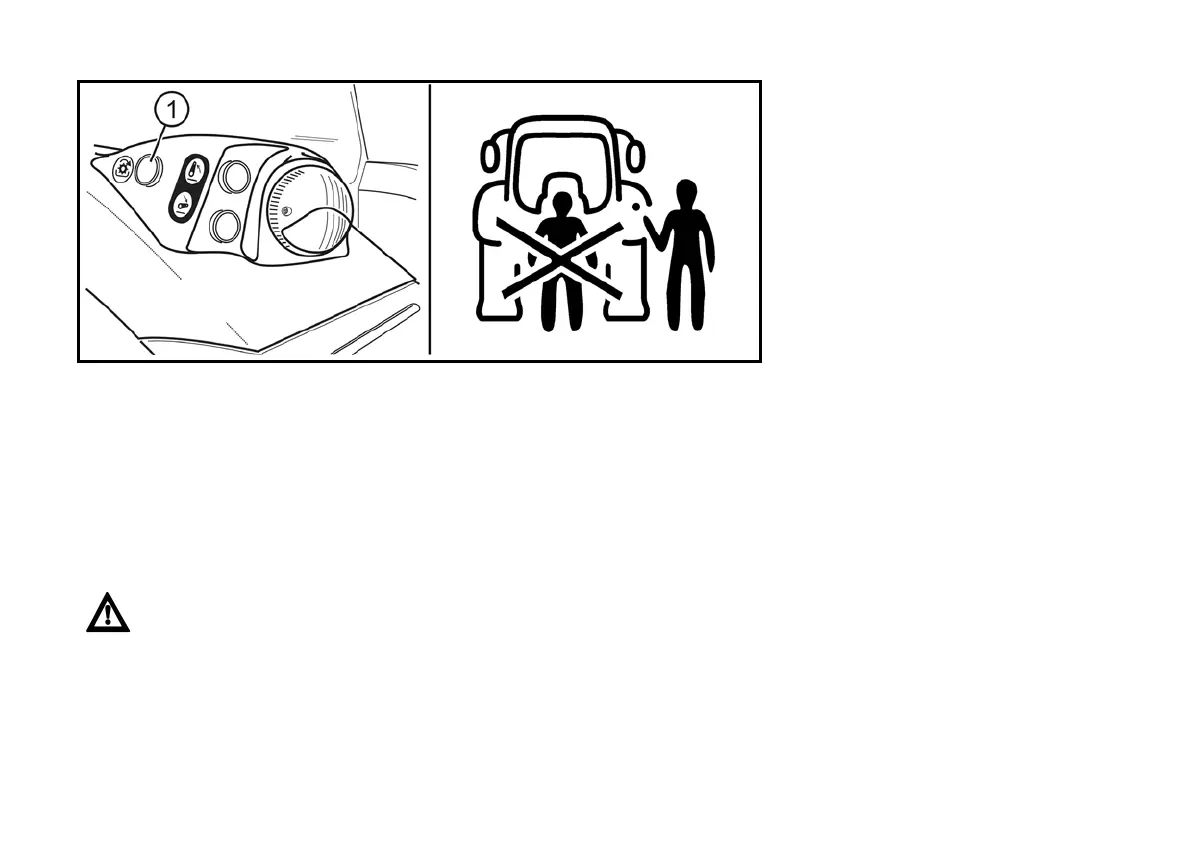

For facilitating the connection of joint shaft of aggregated machine to a tractor a but-
ton (1) placed on mudguards can be used.
With the engine running and rear PTO shaft switch off, spinning of rear PTO shaft
occurs after pressing the button (1). PTO shaft stops spinning after releasing the
button.
Note: Rear PTO shaft revolutions preselection lever must not be in (N) position or in
the position of a dependent revolution of rear PTO shaft.
When manipulating with PTO shaft by means of buttons (1), the operator
must stand beyond the space of the connected tools not to be caught or in-
jured.
