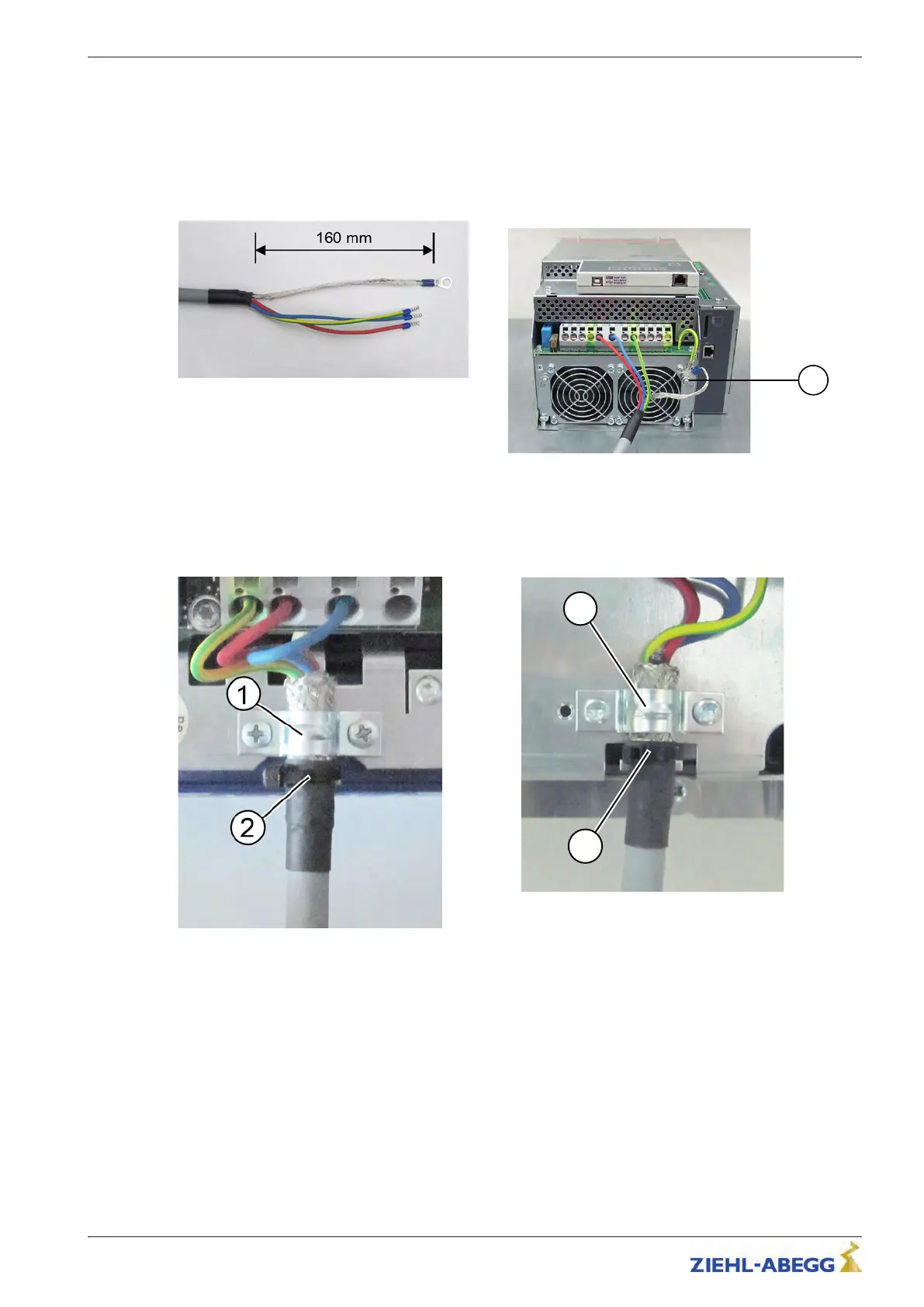

5.1.1.4 Contacting the shielding of the DC cable on the ZETADYN 3BF
The shielding braid of the DC cable must be connected to the protective ground connection of the
ZETADYN 3BF.
1. Remove the insulation of the DC cable over a length of 160 mm.
2. Twist the shielding braid and attach ring cable lug.
3. Connect shielding braid to the protective earth connection of the ZETADYN 3BF.
1
1 Protective earth connection
5.1.1.5 Contacting the shielding of the DC cable on the ZAdyn4C
On the ZAdyn4C, the shielding of the DC cable must be connected to the earth potential with the clip
provided (see fig.).
ZAdyn4C 011-032
1 Clip
2 Cable tie for strain relief
3
4
ZAdyn4C 040-074
3 Clip
4 Cable tie for strain relief
Original operating instructions
ZArec4C Electrical installation
R-TBA14_03-GB 1817 Index 007 Part.-No. 00163436-GB
1
8/64
