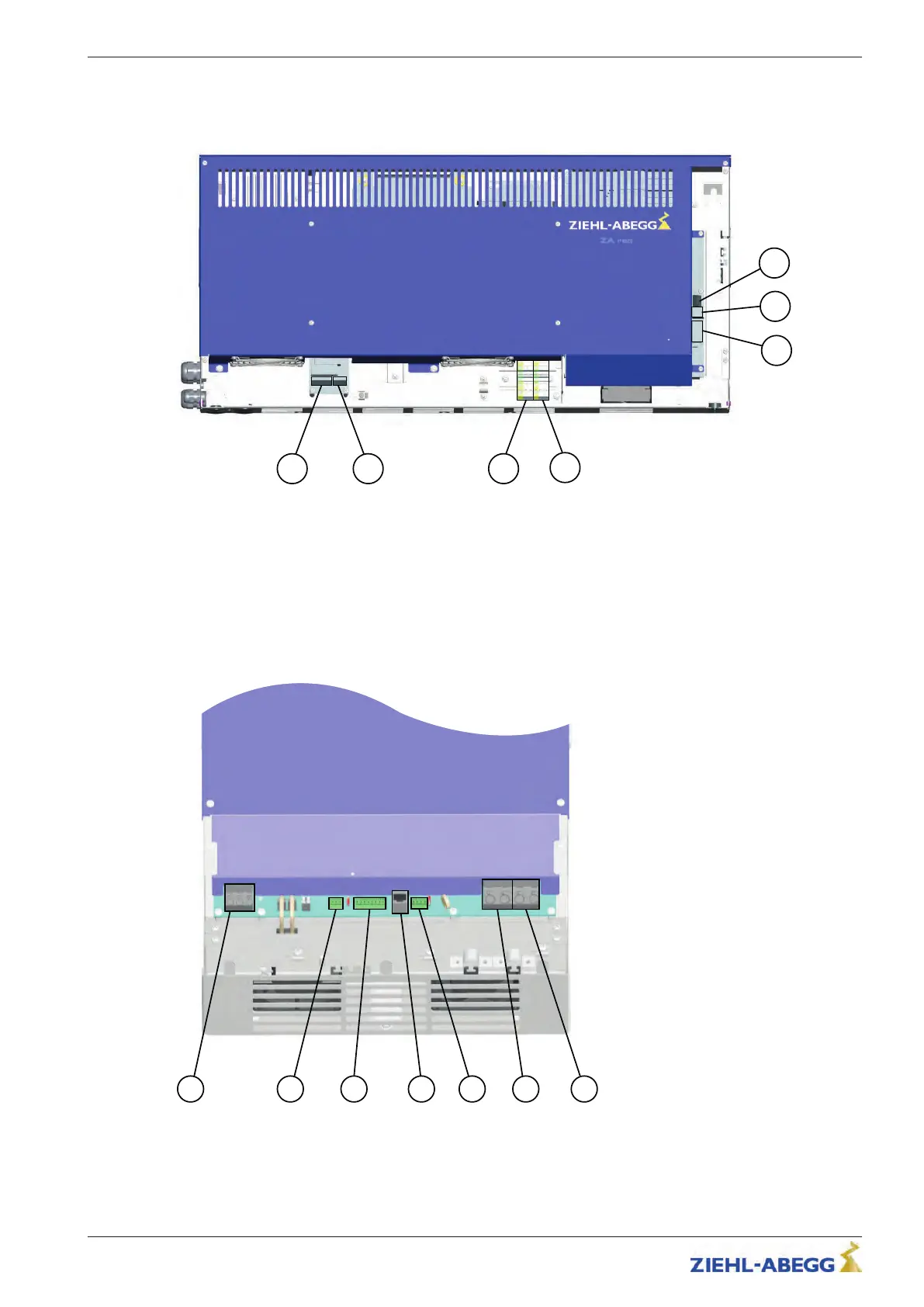

5.2 Terminal positions
5.2.1 ZArec4C 013
1 2 3
4
5
6
7
Terminal positions
1 X1 line
2 X4 control voltage
3 X2 connection intermediate circuit ZAdyn
4 BR-ext connection external brake resistance
5 X-CAN CAN (not supported at the moment)
6 X-PAD ZApad
7 X-IN-OUT digital inputs, digital outputs
5.2.2 ZArec4C 026/039
1
2 3 4
5 6 7
Terminal positions
1 X1 line
2 X-BC connection temperature monitor brake resistor
3 X-IN-OUT digital inputs, digital outputs
4 X-PAD ZApad
5 X-CAN CAN (not supported at the moment)
6 X-BR connection external brake resistor
7 X-2 connection intermediate circuit ZAdyn
Original operating instructions
ZArec4C Electrical installation
R-TBA14_03-GB 1817 Index 007 Part.-No. 00163436-GB
1
9/64
