6 Accessories
6.1 ZApad control terminal
The ZApad is an operating module independent of the ZArec4C. It is used for special functions such
as reading out errors and changing parameters.
When using a longer network cable, remote control of the ZArec4C is feasible.

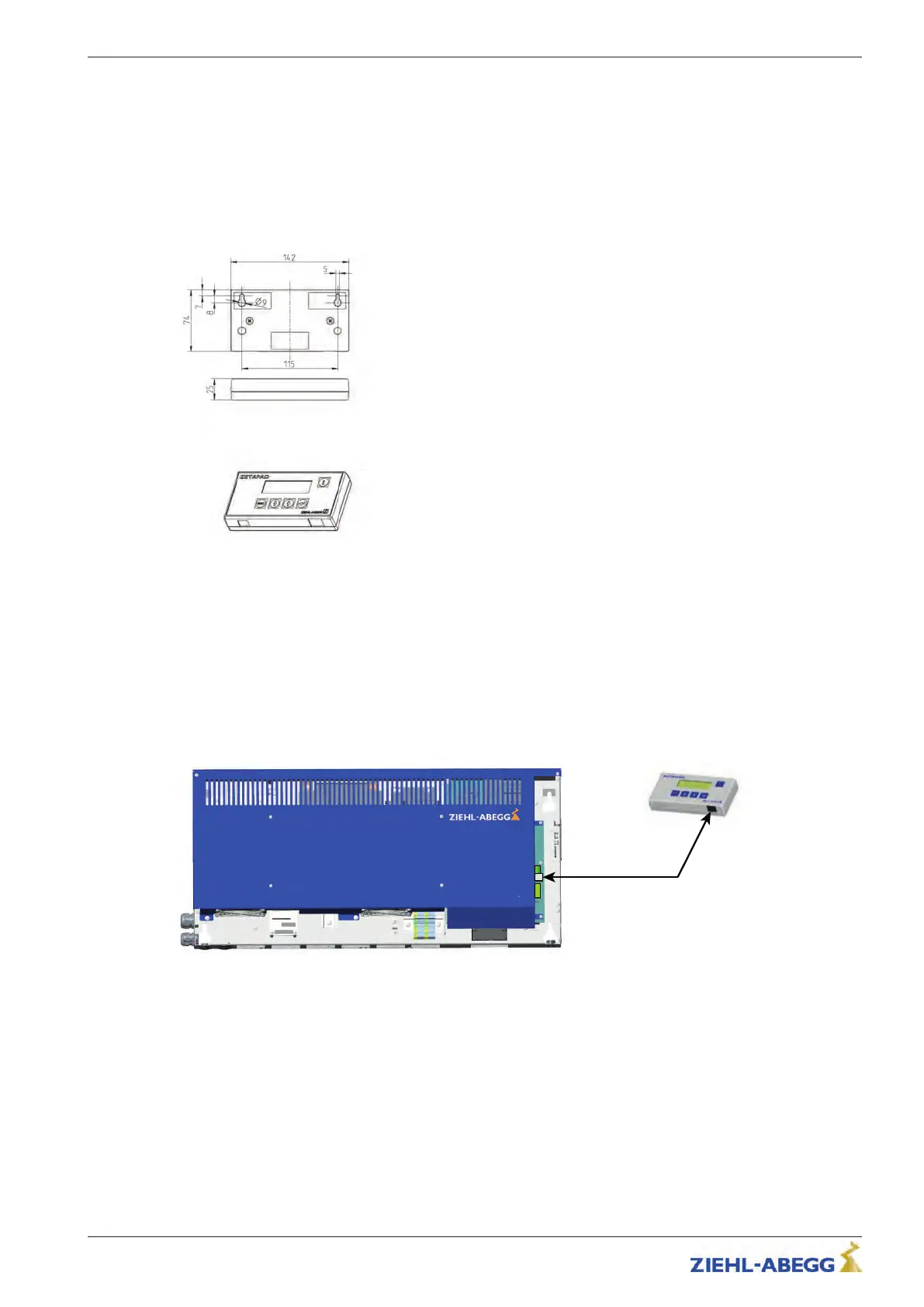

6.1.1 Dimensions
Dimensions ZApad
6.1.2 Connection
The connection has to be effected on the RJ45-female plug of the operating terminal and the ZArec4C
(X-PAD).
Connection cable
CAT5 network cable, 8-core
both sides RJ-45 plug, 8-pole
maximum line length: 50 m
line cross-section >= AWG26
Connecting ZApad to ZArec4C 013
Original operating instructions
ZArec4C Accessories
R-TBA14_03-GB 1817 Index 007 Part.-No. 00163436-GB
3
8/64
