13.2.2 Digital outputs
The ZArec4C has two digital outputs as potential-free relay contacts with N/O switch function.
Technical data
Short-circuit-proof No
Min. switching capacity 5 mA / 12 VDC
Max. switching capacity 2 A / 250 VAC
Clamping range max. 2.5 mm
2
13.2.2.1 RDY (O3) digital output - operational
•
Information that the ZArec4C is operational
•
Contact closes as soon as the ZArec4C is started up
•
Contact opens in case of parameter input or a fault
•
After remedying the cause of the fault, the contact closes again
•
When the contact is open, it must be ensured that the EN input is not activated
•
After switching off RDY, the EN input must be deactivated within 1 s
13.2.2.2 Digital output /ERR (O4) - errors requiring switching off
•
Information that the internal temperature limits of the ZArec4C have been exceeded due to over-
loading and other errors, e.g. activation of the EN enable without the RDY output being active
•
If /ERR decreases, the energy supply (via DC cable) must be interrupted by the frequency inverter.
•
Qualified personnel must be on site for error analysis and remedy

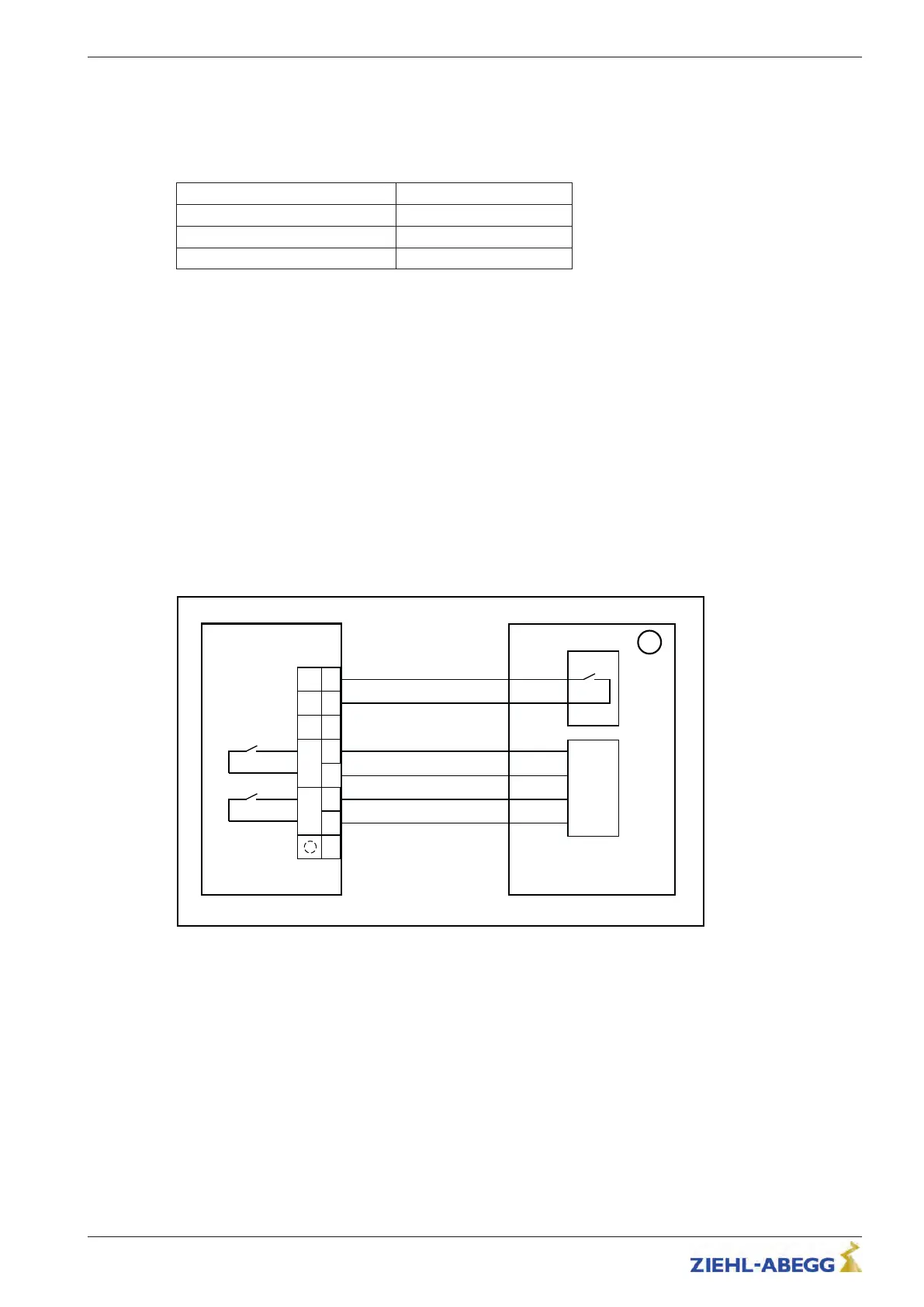

13.2.3 Connecting digital inputs and outputs
Connecting digital inputs and outputs
1 Frequency inverter/control
OUT_1 Output activation ZArec4C
IN_1 "ZArec4C ready" input
IN_2 "Error ZArec4C" input
Original operating instructions
ZArec4C Operating the ZArec4C with the frequency inverters from other manufacturers
R-TBA14_03-GB 1817 Index 007 Part.-No. 00163436-GB
