7 Operation and parameterising
7.1 Possibilities for operation and configuration
The following operations can be performed on the ZArec4C with the aid of the various operating
facilities:
•
The parameters needed for commissioning can be set
•
Simple measurement and control functions can be carried out
•
Service conditions can be recorded
7.1.1 ZApad control terminal
See the "Additional Devices/Operating Terminal ZApad" chapter for information about the ZApad
operating terminal.
7.1.2 Remote control via ZAmon software
The ZAmon-software can be used to operate the ZArec4C with a PC / Notebook.
7.2 Menu navigation
Information
The menu navigation is designed identically for ZApad and ZAmon operating facilities!
Information
Modifying parameters is only possible when the machine is in standstill!
Z I E H L - A B E G G S E
Z A r e c 4 C 0 1 3
S N : 1 2 3 4 5 6 78 / 0 0 0 1
4 . 0 1 - 2 7 0 54

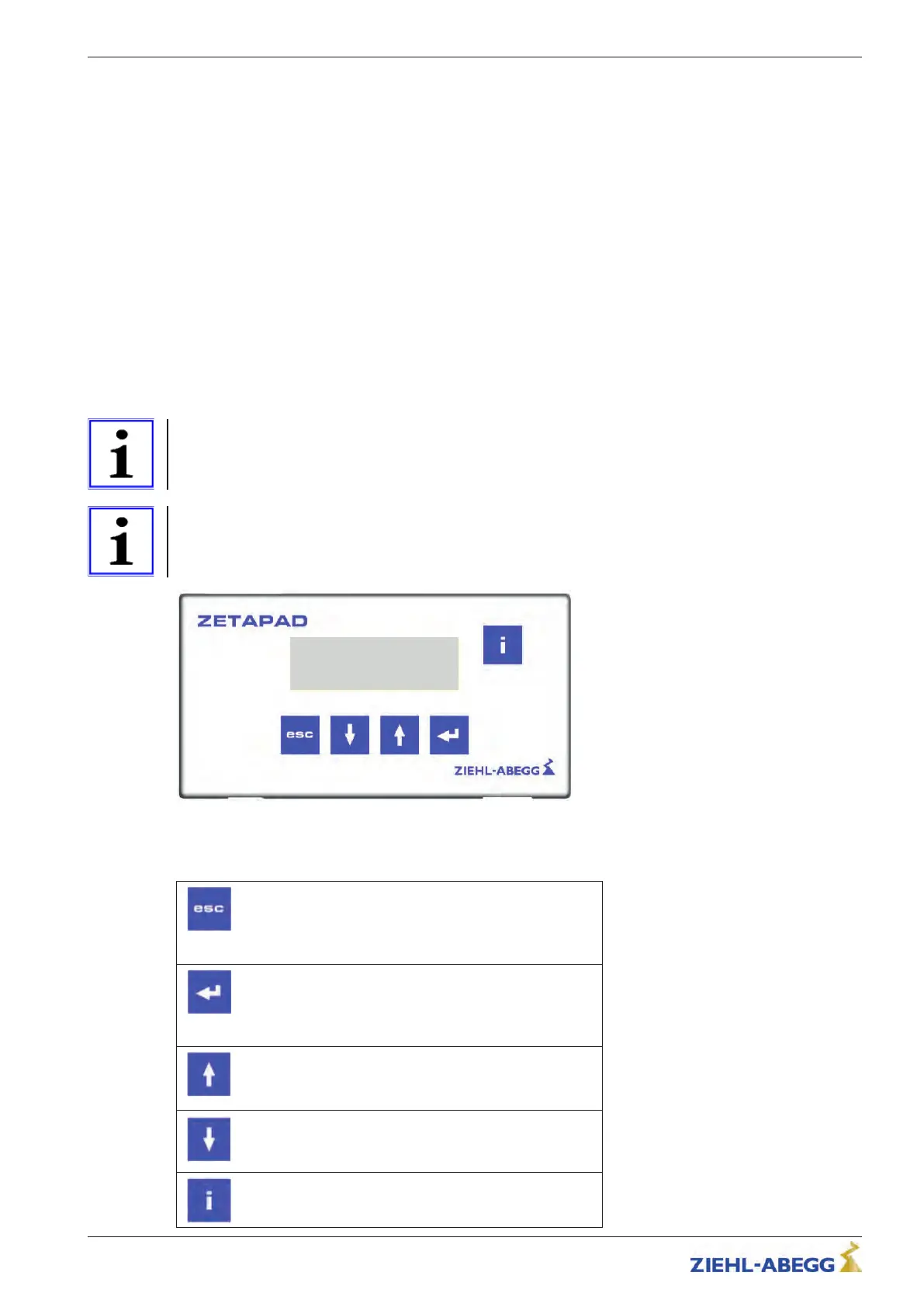

ZApad user interface
7.2.1 Control key functions
•
back to menu selection
•
Back to parameter selection
•
Negation of yes-no queries
•
Cancel
•
Confirming menu selection
•
Confirming parameter values
•
Confirming parameter values
•
Affirmation of yes-no queries
•
Menu selection
•
Parameter selection
•
Increasing parameter values
•
Menu selection
•
Parameter selection
•
Reducing parameter values
•
S
how / exit INFO menu
•
Display of current operational states
Original operating instructions
ZArec4C Operation and parameterising
R-TBA14_03-GB 1817 Index 007 Part.-No. 00163436-GB
4
0/64
