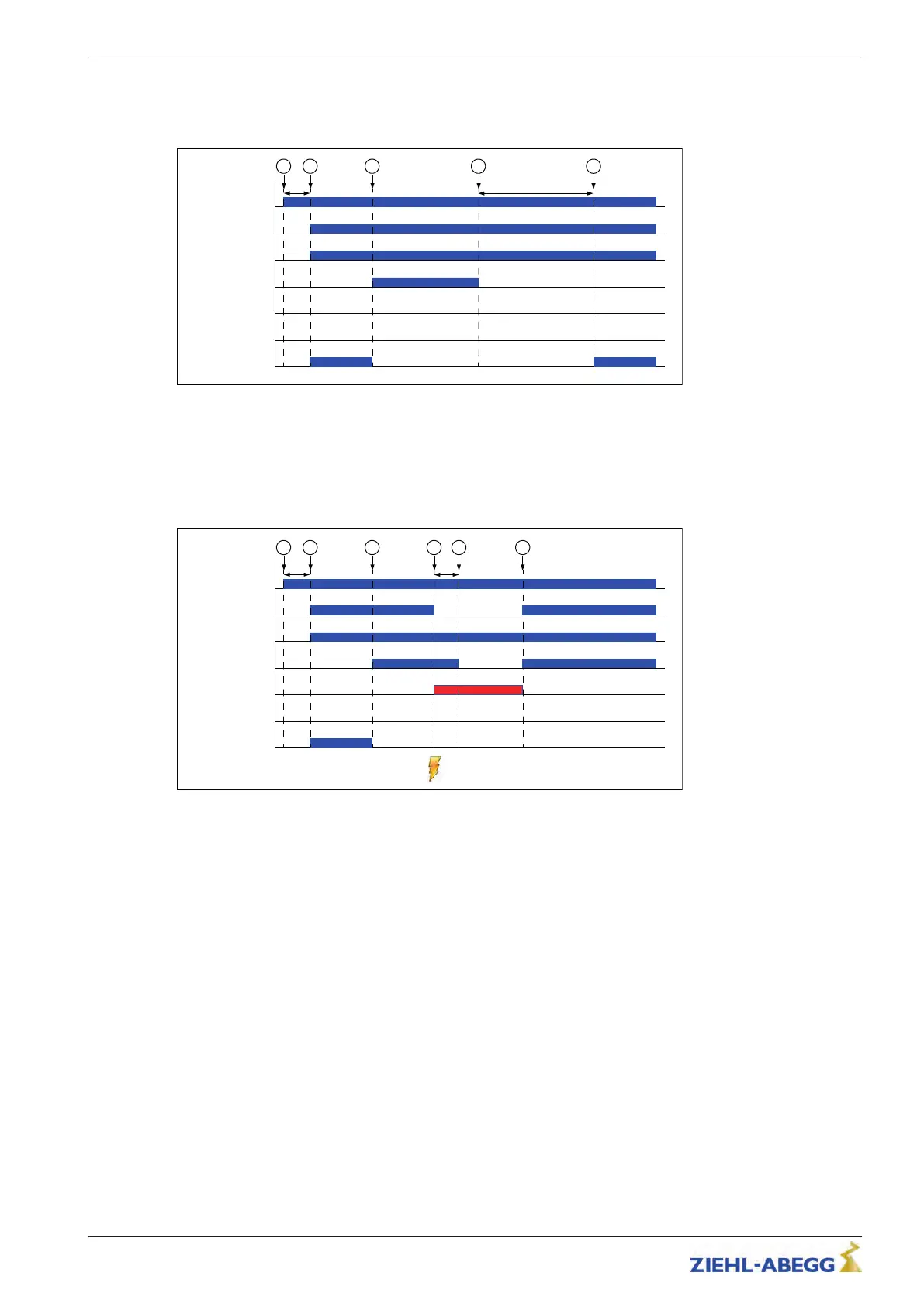

13.3 Statuses of digital inputs and outputs
13.3.1 Normal travel
L1/L2/L3
I1 / EN
ERR
RDY
Störung / Fault
Schwerwiegender Fehler /
Serious error
1 4
Standby
10.0 s
2
5.0 s
3 5
Normal travel
1 Line voltage
2 Outputs and standby mode active
3 Travel start / enable ZArec4C
4 End of travel
5 Activation of stand-by mode
13.3.2 Fault
L1/L2/L3
I1 / EN
ERR
RDY
Störung / Fault
Schwerwiegender Fehler /
Serious error
1 4
Standby
max.
1.0 s
2
5.0 s
3 65
Failure
1 Line voltage
2 Outputs and standby mode active
3 Travel start / enable ZArec4C
4 Fault
5 Switch off enable ZArec4C
6 No fault is present / new travel command possible
Original operating instructions
ZArec4C Operating the ZArec4C with the frequency inverters from other manufacturers
R-TBA14_03-GB 1817 Index 007 Part.-No. 00163436-GB
5
7/64
