ZIEHL-ABEGG ZA rec 4C Series User Manual

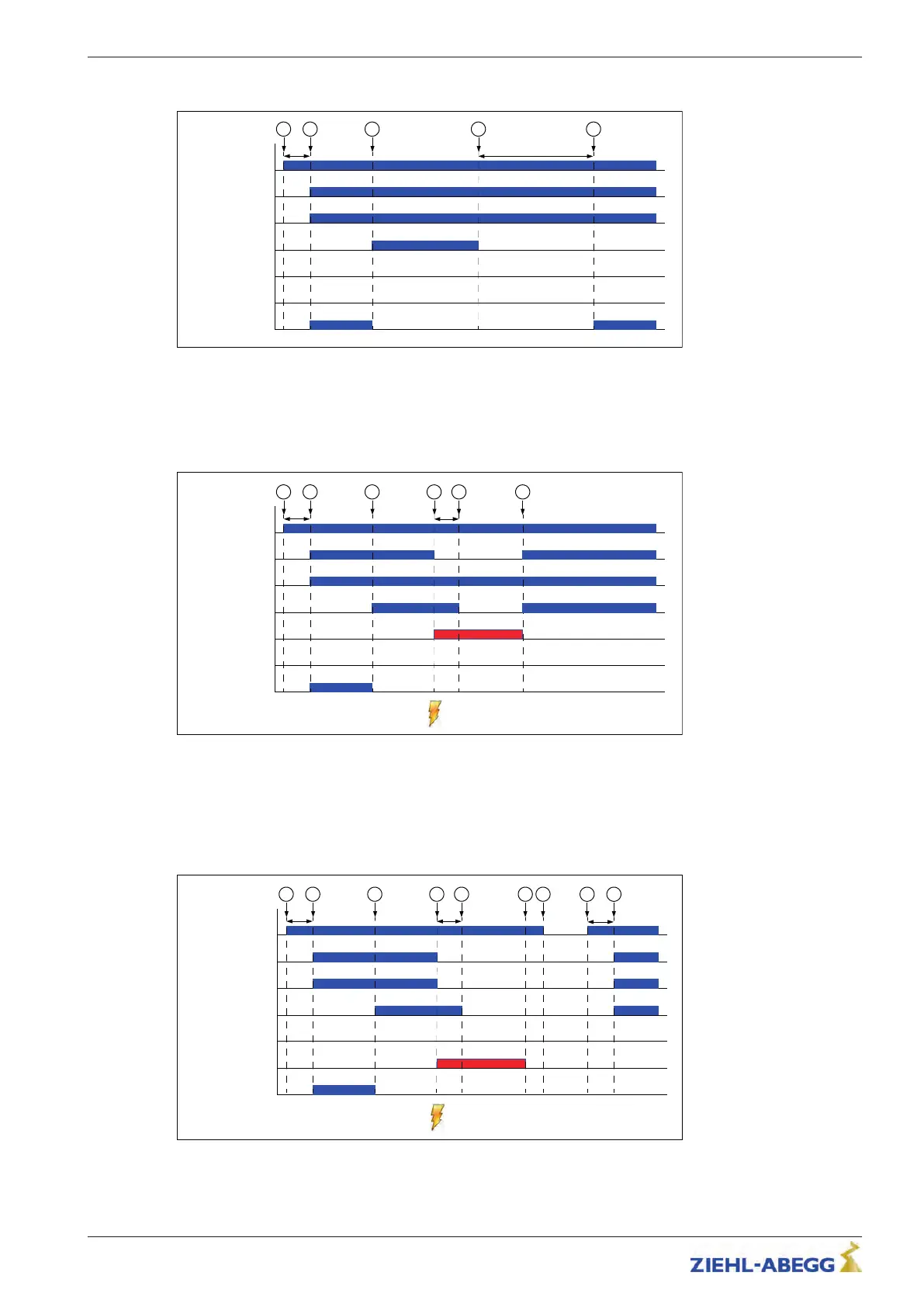

5.15 Signal timing
L1/L2/L3
I1 / EN
ERR
RDY
Störung / Fault
Schwerwiegender Fehler /
Serious error
1 4
Standby
10.0 s
2
5.0 s
3 5
Normal travel
1 Line voltage
2 Outputs and standby mode active
3 Travel start / enable ZArec4C
4 End of travel
5 Activation of stand-by mode
L1/L2/L3
I1 / EN
ERR
RDY
Störung / Fault
Schwerwiegender Fehler /
Serious error
1 4
Standby
max.
1.0 s
2
5.0 s
3 65
Failure
1 Line voltage
2 Outputs and standby mode active
3 Travel start / enable ZArec4C
4 Fault
5 Switch off enable ZArec4C
6 No fault is present / new travel command possible
L1/L2/L3
I1 / EN
ERR
RDY
Schwerwiegender Fehler /
Serious error
1 4
Standby
max.
1.0 s
2
5.0 s
3 65 7 8 9
5.0 s
Störung / Fault
Serious error
1
Line voltage
2 Outputs and standby mode active
3 Travel start / enable ZArec4C
4 Error
Original operating instructions
ZArec4C Electrical installation
R-TBA14_03-GB 1817 Index 007 Part.-No. 00163436-GB
3
3/64
