User Manual
13
5.3 Main Menu

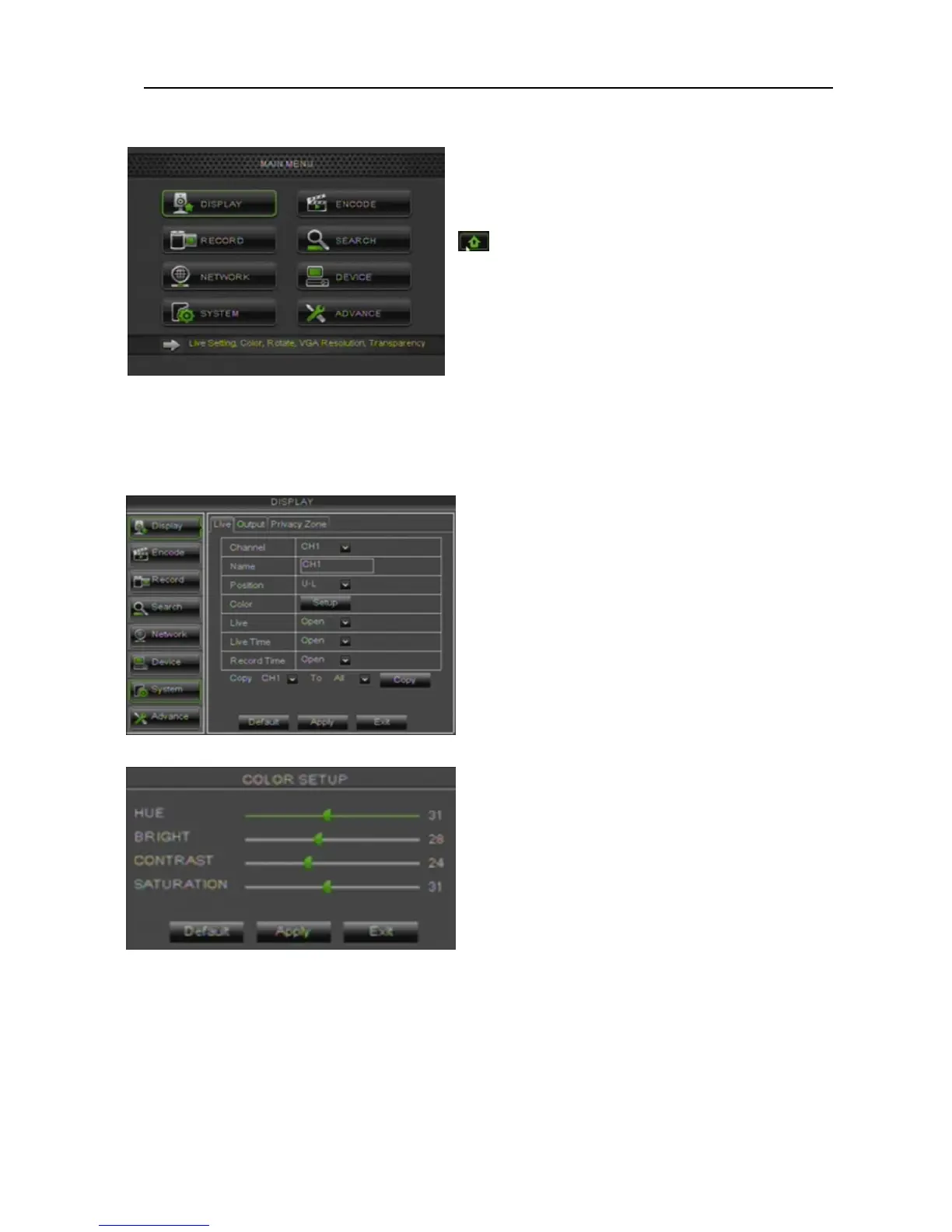

Picture 5-2
5.3.1 Display mode
5.3.1.1 Live mode
Picture 5-3
Picture 5-4
Above picture 5-4 is the Color Menu where you can adjust image brightness, saturation, contrast and
hue parameters of each channel.
Explanation：
1、The modifications will be available after clicking [APPLY] button on the bottom of the sub-menu
windows and being prompted to save and then clicking [ok] button.
On preview mode, click [Menu] button on the front
panel or Remote controller to enter into Main menu
interface shown as Picture 5-2. And also you can click
[
] icon to enter the main menu screen. In Main
Menu mode, you can control device management
settings, such as Display, Record, Network, Search,
Device and System setting etc.
Channel: allow you setup the channel you
desired.
Name: allow you setup the channel name, and
system support up to eight characters or four
Chinese characters.
Position: allow you setup the display position of
each channel.
Color: Click [Setup] option to enter into the
[Color setup] interface shown as Picture 5-4.
Live: allow you enable [Live] surveillance
function
Live time: allow you enable [Live time] appear
in the preview screen.
Record time: When set to “Enable”, you are
allowed to record system time into the record
history.
Copy: allow you copy all data of one channel to
any other one
To Next Page
