User Manual
20

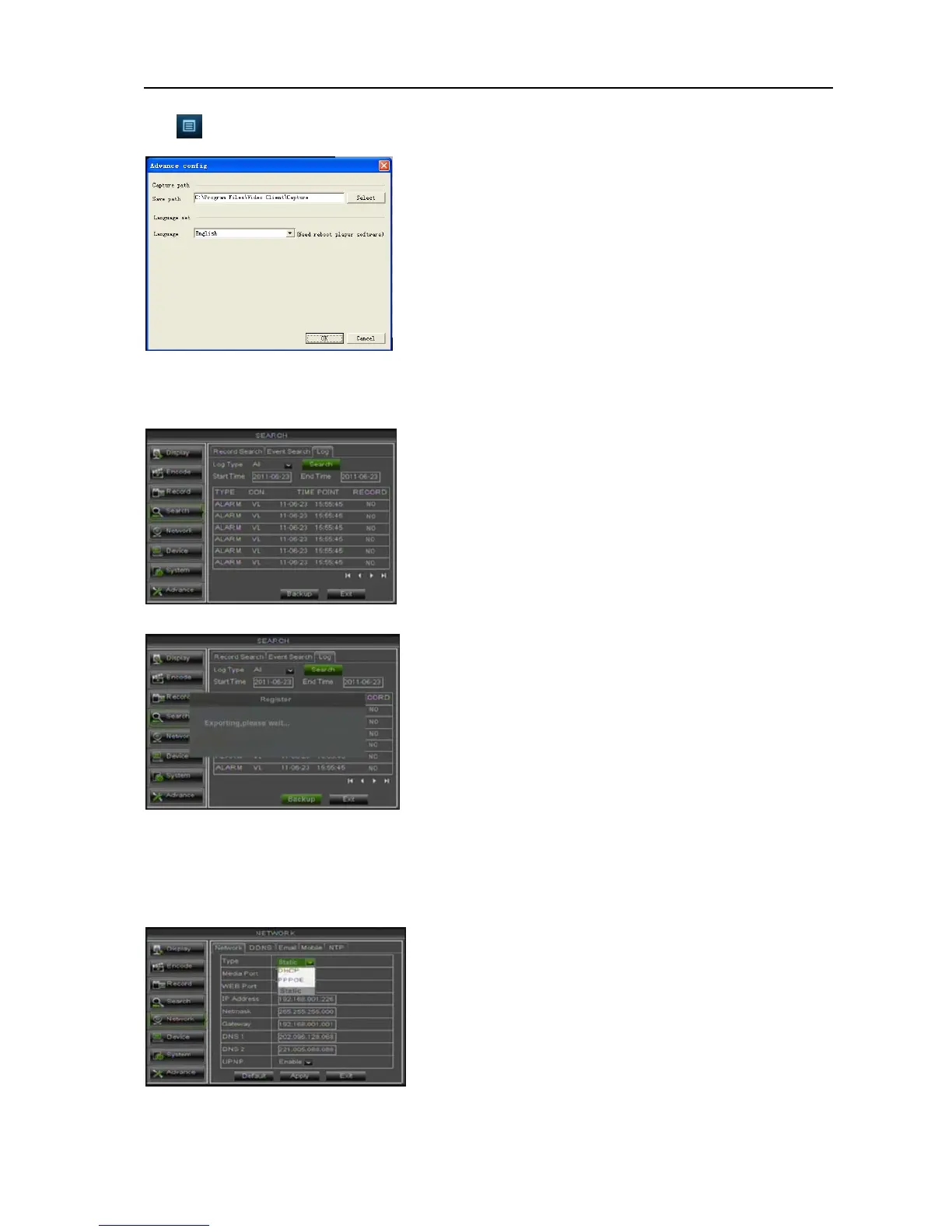

Advance Configuration: click the icon to set one captured path and language shown as Picture 5-24.
Picture5-24
5.3.4.5 Log Search
Picture5-25
Picture5-26
5.3.5 Network set
5.3.5.1 Network
Click [Main menu Network] option to enter into the network set interface shown as Picture 5-27.
Picture5-27
Go to [Main menuSearchLog] option to enter
into the Log search interface shown as Picture 5-25.
Click the [Search] button to search all the log
information, and then click [Backup] button to export all
the logs shown as Picture 5-26.
After selecting network mode - such as DHCP, PPPOE
or static allocation- and setting up web ports，you can visit
DVR remotely through a network or internet.
UPnP (Universal Plug and Play) function: If router
supports UPnP function and set <UPnP> to On, system will
automatically forward port to router.
