User Manual
26
HDD loss
When Hard Drive is not detected (HDD damage, power supply malfunction), or HDD auto-overwrite is
off, and free space is not enough, an alarm will be triggered.
5.3.7 System
5.3.7.1 General set

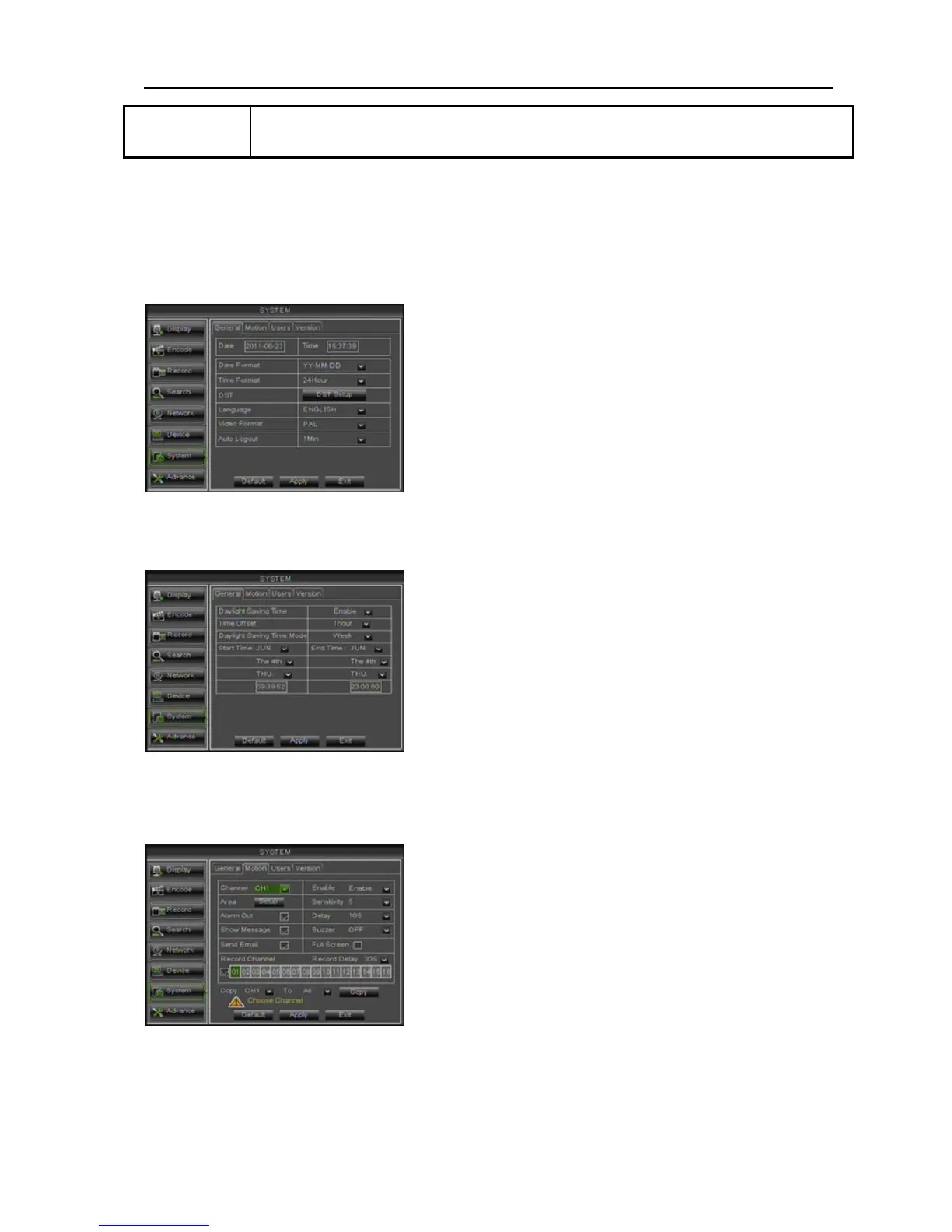

Click [Main MenuSystemGeneral] to enter into the interface shown as Picture 5-43
Picture 5-43
5.3.7.2 DST Set
Picture 5-44
5.3.7.3 Motion
Click [Main menuSystemMotion] option to enter into the interface shown as Picture 5-45.
Picture 5-45
Latch: you can set how long the buzzer will sound when object move is detected (10s, 20, 40s,
60s);
Show Message: You can set show message on the screen when motion alarm is detected.
List 5-1
You will be allowed to modify system date, time,
date/time format, language, video format and auto logout.
And click [DST Setup] button to enter into the below
interface shown as Picture 5-44.
Herein you are allowed to set DST status and mode
Channel: allow you enable/disable the motion function
for any channel.
Area: Click the [Setup] button to enter into area setup
interface shown as Picture 5-45.
Sensitivity: allow you to set sensitivity level of
motion detection from higher to low with 8 being
the most sensitive.
Alarm out: allow you connect external alarm sensor.
