User Manual
6
Chapter 2: Overview

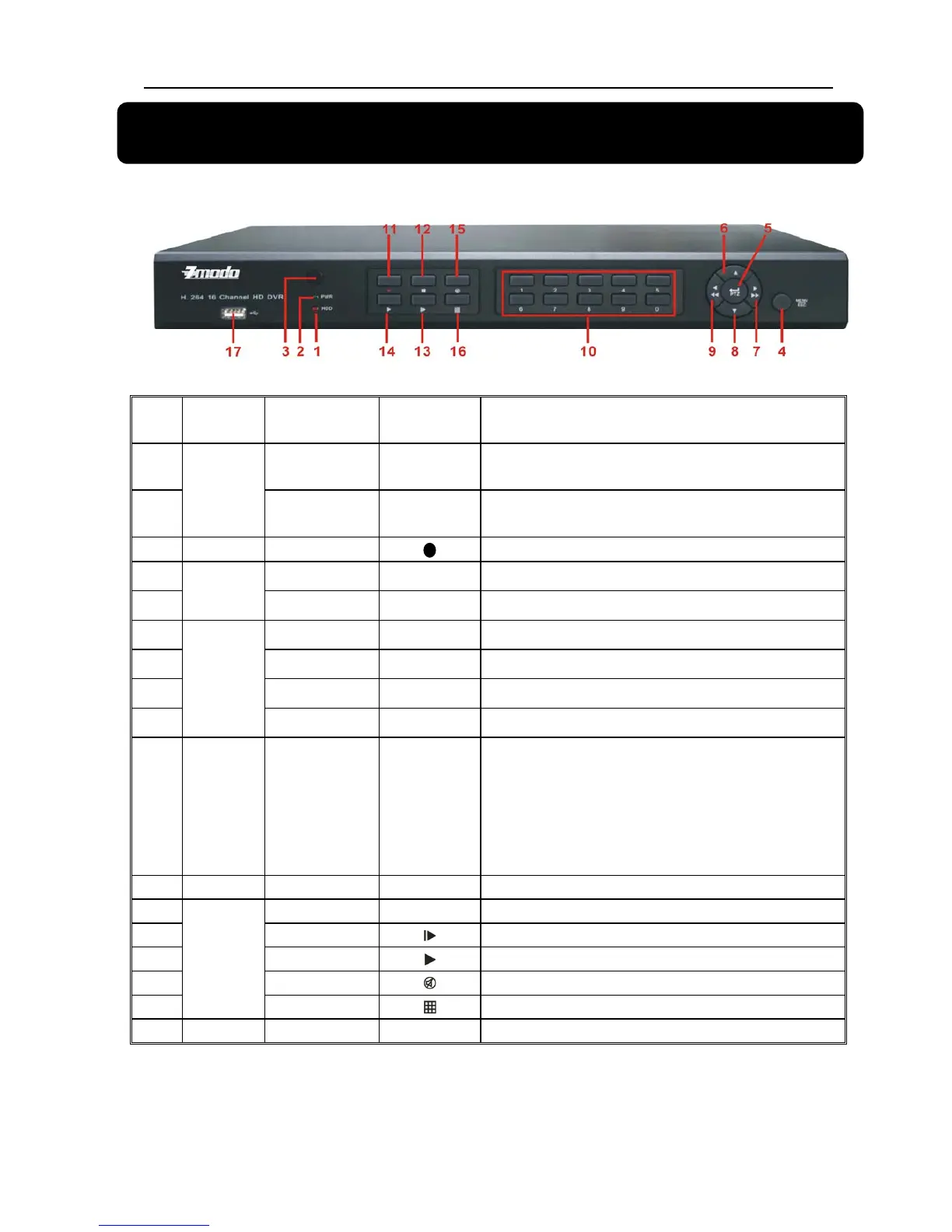

2.1 16-CH DVR Front Panel
Item Type
Key title
/Indicator
Marks Function
1
Indicator
HDD indicator HDD
When the “Red” indicator flashes it means the hard drive is being
read or written to.
2
Power indicator
PWR
If the “Green” indicator is on the system is getting power
normally.
3
IR Receiver
Receives IR signal from Remote Control
4
Complex
Key
Menu MENU/ESC
Enter into main menu / Exit
5
PTZ
PTZ
Enter into PTZ control, select [Enter] / [Edit] operation
6
Direction
Key
UP
Move up
7
DOWN
Move down
8
LEFT /
Move left / RWD
9
RIGHT /
Move right / FWD
10
Channel
Select &
numeric
input
Single Channel
and numeric key
Numeric key
0,1-9 and CH
key CH1~9
1. Number 1~9 stand for numeric 1~9 and CH 1~9.
2. CH11-CH16 select method: press firstly numeric key 1 and
then other numeric key. For example CH16 select firstly
press 1, and then press 6.
3. Holding press key 0 for three seconds may convert current
output device
11
Rec. Manual record ● Press the button to start manual record.
12
Play
Control
Pause
Stop playing
13
By frame
Play frame by frame
14
Play
Convert to play status
15
Mute
Open or close audio input
16
Multi Display
Live display Quad mode, 9-split and 16-split mode
17
USB Port Connect to USB2.0 port
List 2-1
