Zte WF820+ User Manual

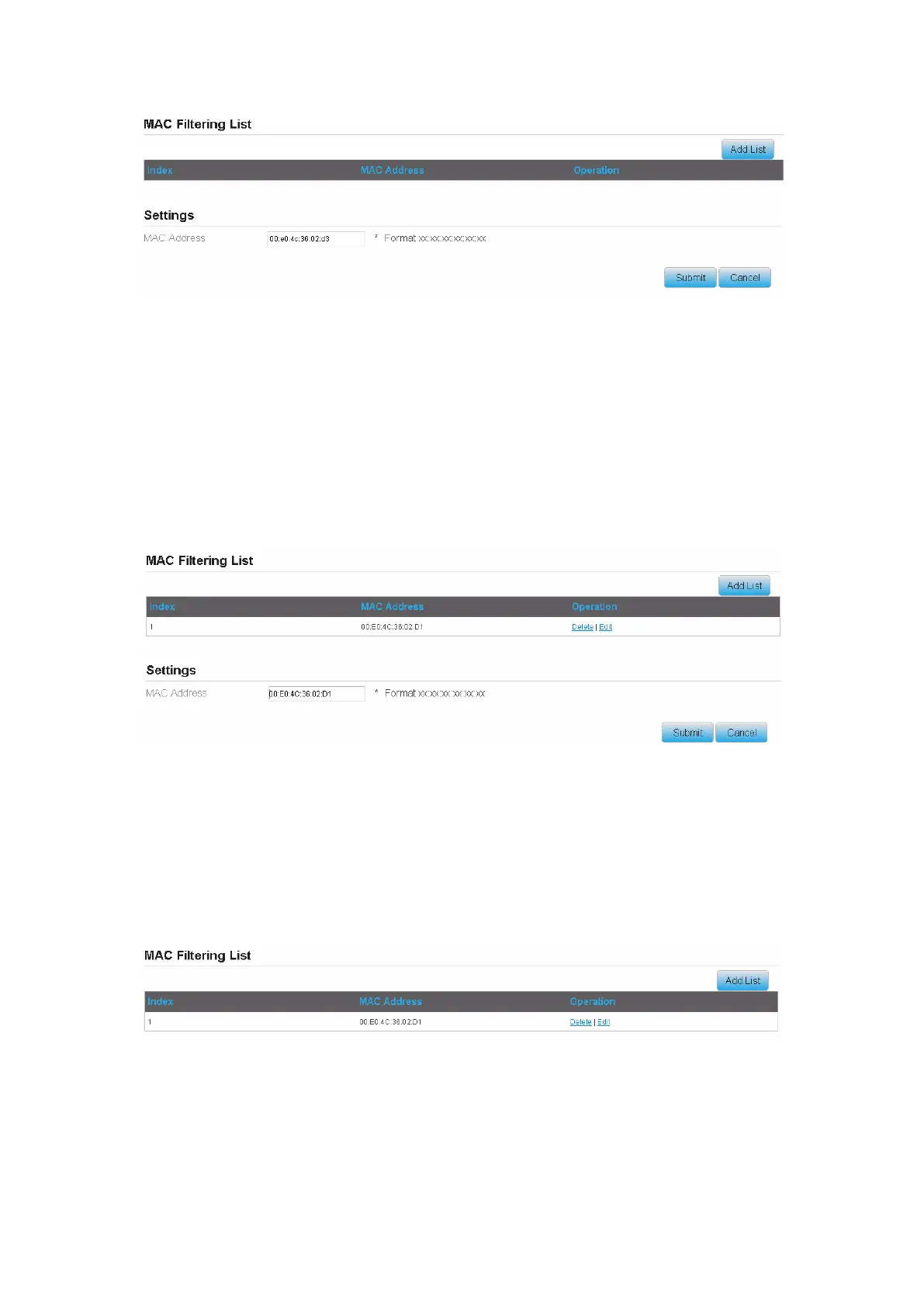

Figure 5-5
5.1.6 Modifying MAC Filtering rule
To modify a MAC address rule, perform the following steps:
1. Choose Security>MAC Filtering.
2. Choose the rule to be modified, and click Edit.
3. Set MAC address.
4. Click Submit. As shown in Figure 5-6.
Figure 5-6
5.1.7 Deleting MAC Filtering rule
To delete a MAC address filter rule, perform the following steps:
1. Choose Security>MAC Filtering.
2. Choose the rule to be deleted, and click Delete. As shown in Figure 5-7.
Figure 5-7
5.2 IP Filtering
Data is filtered by IP address. This page enables you to configure the IP address filtering rules.
