9.11 Port Mirror

Port mirroring is used on a network switch to send a copy of network packets seen on one

switch port.To do so:

1. Choose System>Port Mirror.

2. Enable Port Mirror.

3. Select the WAN Interface which you want a copy.

4. Type the Monitor IP, where the copy will send to.

5. Click Sbumit. As shown in Figure 9-20.

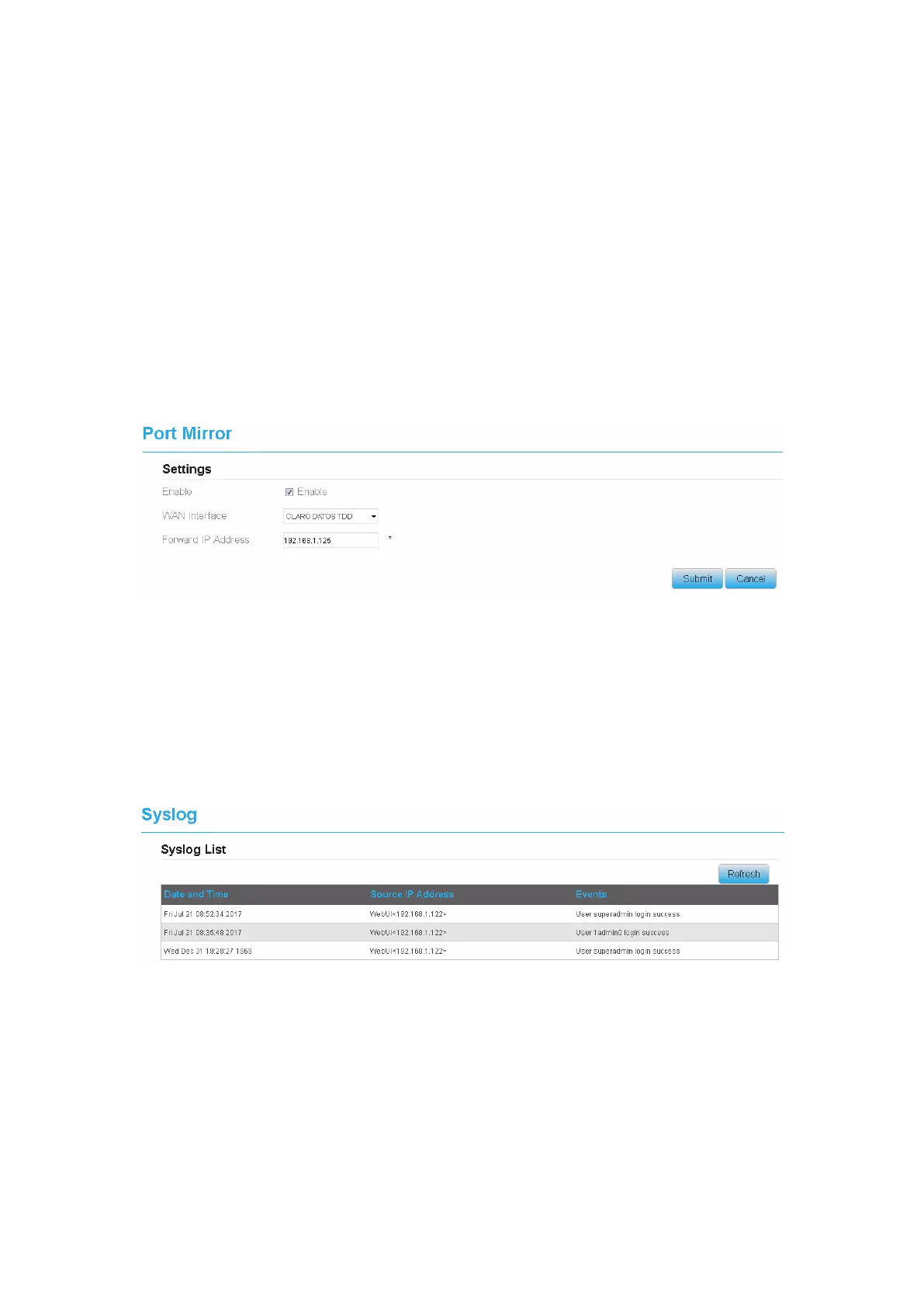

Figure 9-20.

9.12 Syslog

The syslog record user operations and key running events. You can click Refresh to reload the logs. As

shown in Figure 9-21.

Figure 9-21

9.13 Account

This function enables you to change the login password of the user. After the password changes,

enter the new password the next time you login.

To change the password, perform the following steps:

1. Choose System>Account.
