9.3.2 Module Upgrade

To perform an upgrade, perform the following steps:

1. Choose System>Module Upgrade.

2. In the Module Upgrade area, click Browse. In the displayed dialog box, select the target

software version file.

3. Click Open. The dialog box choses. The save path and name of the target software version

file are displayed in the Update file field.

4. Click Submit.

5. The software upgrade starts. After the upgrade, the CPE automatically restarts and runs the

new software version. As shown in Figure 9-9.

During an upgrade, do not power off the CPE or disconnect it from the computer.

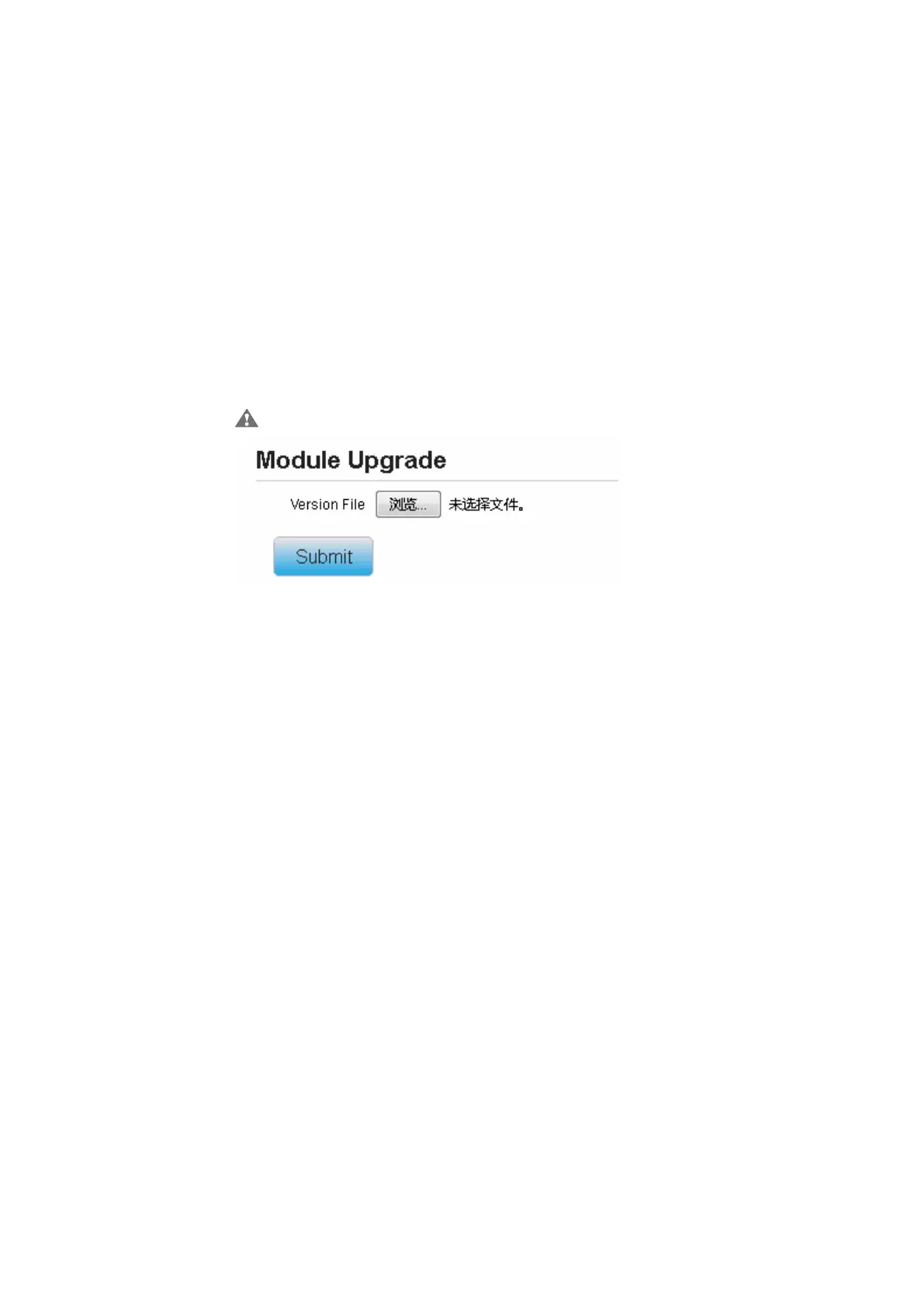

Figure 9-9

9.4 FTP auto upgrade

To perform a ftp auto upgrade successfully, make sure the CPE is connected to the Internet.

To perform a ftp auto upgrade, perform the following steps:

1. Choose System>FTP auto upgrade.

2. Enable FTP auto upgrade.

3. If you want to check new firmware after connect to Internet, you need to enable the item of Check

new firmware after connect to Internet.

4. Set a ftp address to the Upgrade folder box.

5. Set Version file.

6. Set User name and Password.

7. Set the Interval of checking new firmware.

8. Set Start time.

9. Set Random time.

10. Click Submit. As shown in Figure 9-10.
