112 ACS550 User’s Manual
Start-Up

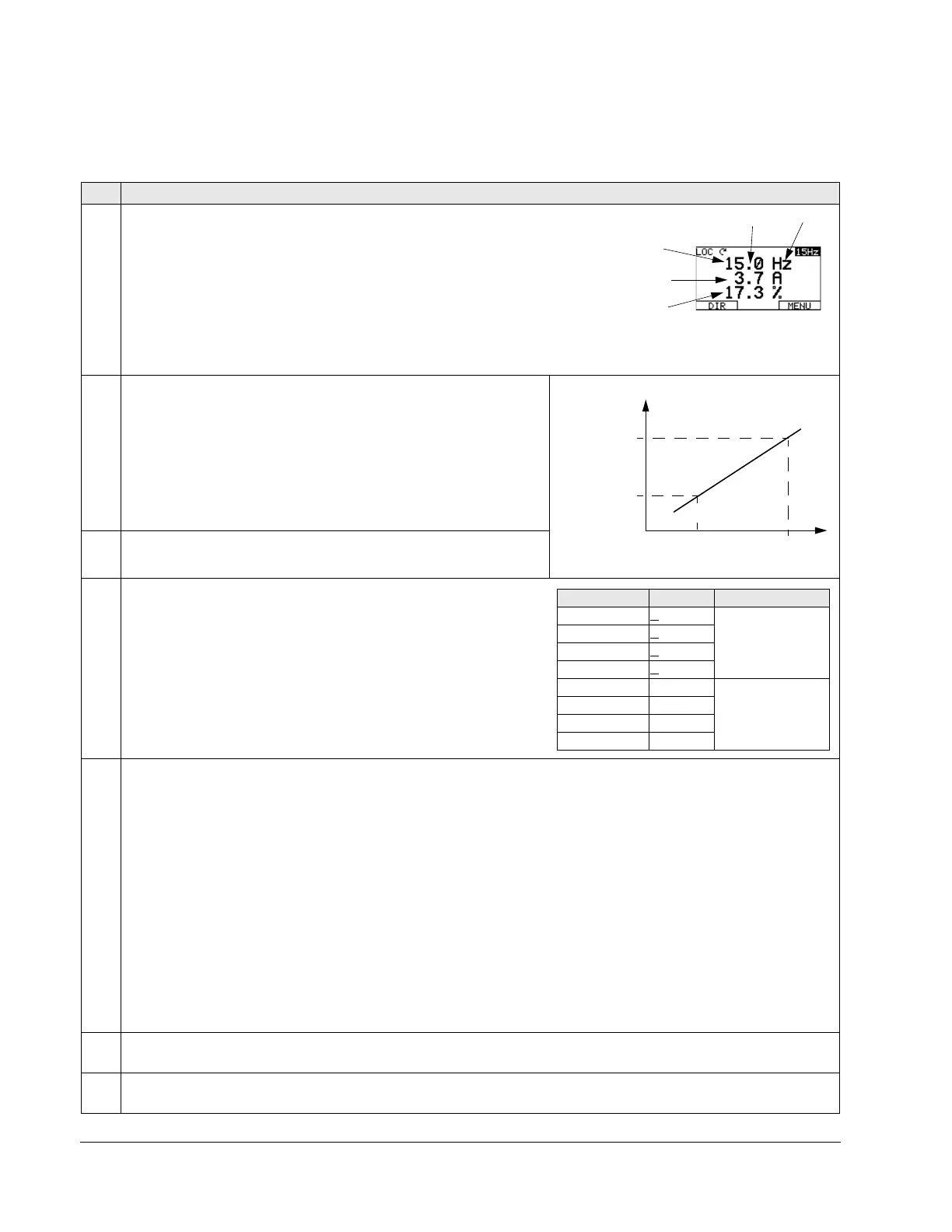

Group 34: Panel Display Process Variables
This group defines the content for control panel display (middle area), when the
control panel is in the output mode.
Code Description
3401 SIGNAL1 PARAM
Selects the first parameter (by number) displayed on the control panel.
• Definitions in this group define display content when the control panel is in
the control mode.
• Any Group 01 parameter number can be selected.
• Using the following parameters, the display value can be scaled, converted
to convenient units, and/or displayed as a bar graph.
• The figure identifies selections made by parameters in this group.
100 = not selected – First parameter not displayed.
101…199 = Displays parameter 0101…0199. If parameter does not exist, the display shows “n.a.”
3402 SIGNAL1 MIN
Defines the minimum expected value for the first display parameter.
Use parameters 3402, 3403, 3406, and 3407, for example to convert
a Group 01 parameter, such as 0102
SPEED (in rpm) to the speed of a
conveyor driven by the motor (in ft/min). For such a conversion, the
source values in the figure are the min. and max. motor speed, and
the display values are the corresponding min. and max. conveyor
speed. Use parameter 3405 to select the proper units for the display.
Note! Selecting units does not convert values.
3403 SIGNAL1 MAX
Defines the maximum expected value for the first display parameter.
3404 OUTPUT1 DSP FORM
Defines the decimal point location for the first display parameter.
1…7 – Defines the decimal point location.
• Enter the number of digits desired to the right of the decimal
point.
• See table for example using pi (3.14159).
8 =
BAR METER – Specifies a bar meter display.
9 =
DIRECT – Decimal point location and units of measure are
identical to the source signal. See Group 01 parameter listing in
“Complete Parameter List” for resolution (which indicates the
decimal point location) and the units of measure.
3405 OUTPUT1 UNIT
Selects the units used with the first display parameter.
3406 OUTPUT1 MIN
Sets the minimum value displayed for the first display parameter.
3407 OUTPUT1 MAX
Sets the maximum value displayed for the first display parameter.
P 0137
P 0138
P 0139
P 3404
P 3405
Source Value
P 3407
P 3406
P 3403
P3402
Display
Value
3404 Value Display Range
0+ 3 -32768…+32767
(Signed)
1+
3.1
2+ 3.14
3+ 3.142
4 3 0…65535
(Unsigned)
53.1
63.14
73.142
0 = NOT SEL 9 = °C 18 = MWh 27 = ft 36 = l/s 45 = Pa 54 = lb/m 63 = Mrev
1 = A 10 = lb ft 19 = m/s 28 = MGD 37 = l/min 46 = GPS 55 = lb/h 64 = d
2 = V 11 = mA 20 = m
3
/h 29 = inHg 38 = l/h 47 = gal/s 56 = FPS 65 = inWC
3 = Hz 12 = mV 21 = dm
3
/s 30 = FPM 39 = m
3
/s 48 = gal/m 57 = ft/s 66 = m/min
4 = % 13 = kW 22 = bar 31 = kb/s 40 = m
3
/m 49 = gal/h 58 = inH
2
O
5 = s 14 = W 23 = kPa 32 = kHz 41 = kg/s 50 = ft
3
/s 59 = in wg
6 = h 15 = kWh 24 = GPM 33 = Ohm 42 = kg/m 51 = ft
3
/m 60 = ft wg
7 = rpm 16 = °F 25 = PSI 34 = ppm 43 = kg/h 52 = ft
3
/h 61 = lbsi
8 = kh 17 = hp 26 = CFM 35 = pps 44 = mbar 53 = lb/s 62 = ms
117 = %ref 119 = %dev 121 = % SP 123 = Iout 125 = Fout 127 = Vdc
118 = %act 120 = %LD 122 = %FBK 124 = Vout 126 = Tout
