44 ACS550 User’s Manual
Start-Up
Application Macro: 3-wire
This macro is used when the drive is controlled using momentary push-buttons, and
provides three (3) constant speeds. To enable, set the value of parameter 9902 to 2
(3-
WIRE).
Note! When the stop input (
DI2) is deactivated (no input), the control panel start/stop
buttons are disabled.

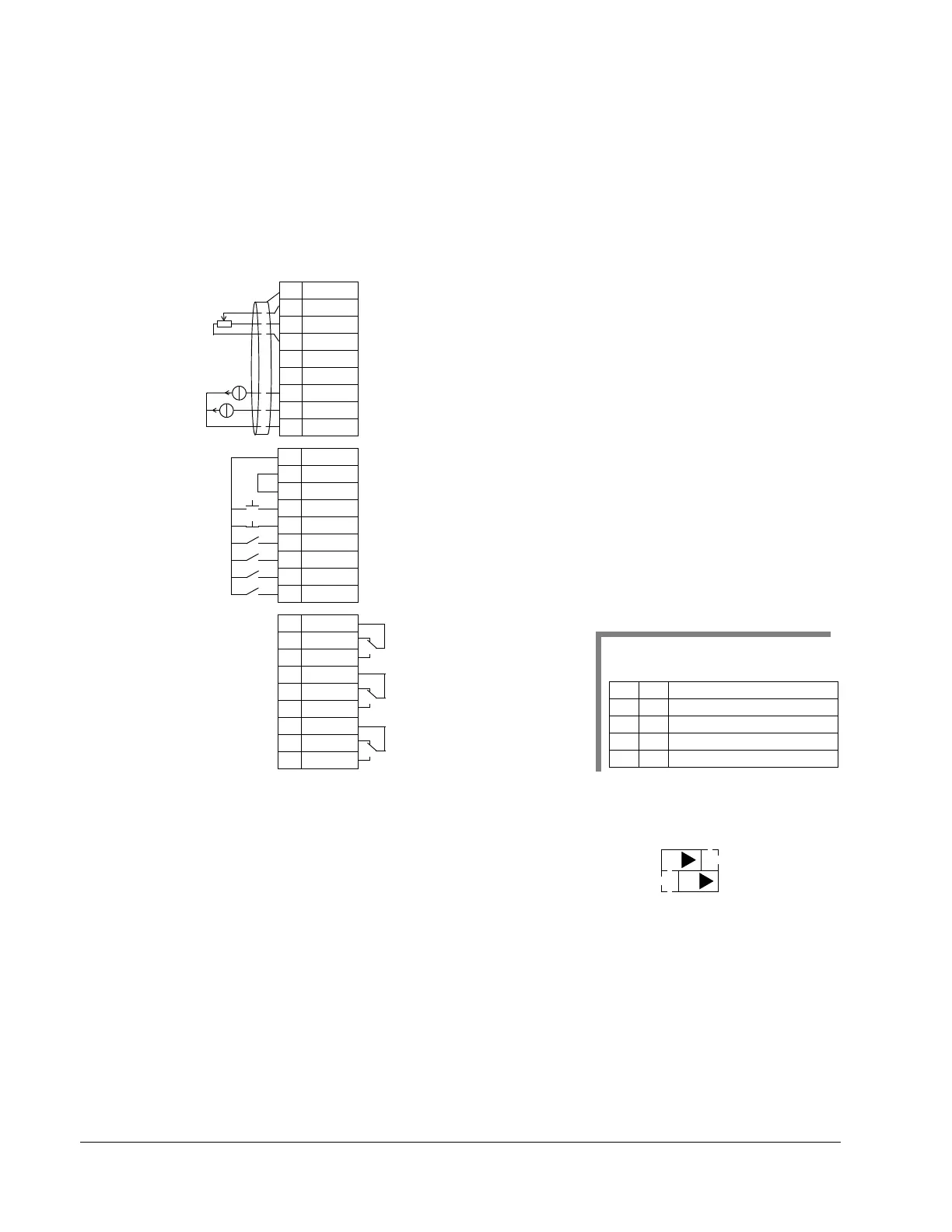

Connection example:
Input signals Output signals Jumper Setting
• Analog reference (AI1)
• Start, stop and direction (DI1,2,3)
• Constant speed selection (DI4,5)
• Analog output AO1: Speed
• Analog output AO2: Current
• Relay output 1: Ready
• Relay output 2: Running
• Relay output 3: Fault (-1)
1SCR
2AI1
3AGND
4 10V
5AI2
6AGND
7AO1
8AO2
9AGND
10 24V
11 GND
12 DCOM
13 DI1
14 DI2
15 DI3
16 DI4
17 DI5
18 DI6
19 RO1C
20 RO1A
21 RO1B
22 RO2C
23 RO2A
24 RO2B
25 RO3C
26 RO3A
27 RO3B
External speed reference 1: 0…10 V
Reference voltage 10 VDC
Motor output speed: 0…20 mA
Constant speed selection
1
Constant speed selection
1
Relay output 1, programmable
Default operation:
Relay output 2, programmable
Default operation:
Relay output 3, programmable
Default operation:
X1
Output current: 0…20 mA
Ready =>19 connected to 21
Running =>22 connected to 24
Fault (-1) =>25 connected to 27
Analog input circuit common
Not used
Analog output circuit common
Auxiliary voltage output +24 VDC
Auxiliary voltage output common
Digital input common for all
Signal cable shield (screen)
Analog input circuit common
Note 1. Code:
0 = open, 1 = connected
DI4 DI5 Output
0 0 Reference through AI1
10
CONSTANT SPEED 1 (1202)
01CONSTANT SPEED 2 (1203)
11CONSTANT SPEED 3 (1204)
Start: Momentary activation with DI2 activated starts the drive
Stop: Momentary deactivation stops the drive
Fwd/Rev: Activation reverses rotation direction
Not used
(Fault => 25 connected to 26)
J1
AI1: 0
…10 V
AI2: 0(4)
…20 mA
ON
ON
