ABB ACS550-01 User Manual

116 ACS550 User’s Manual
Start-Up
Group 36: Timer Functions
This group defines the timer functions. The timer functions include:
• Four daily start and stop times.
• Four weekly start, stop and boost times.
• Four timers for collecting selected periods together.

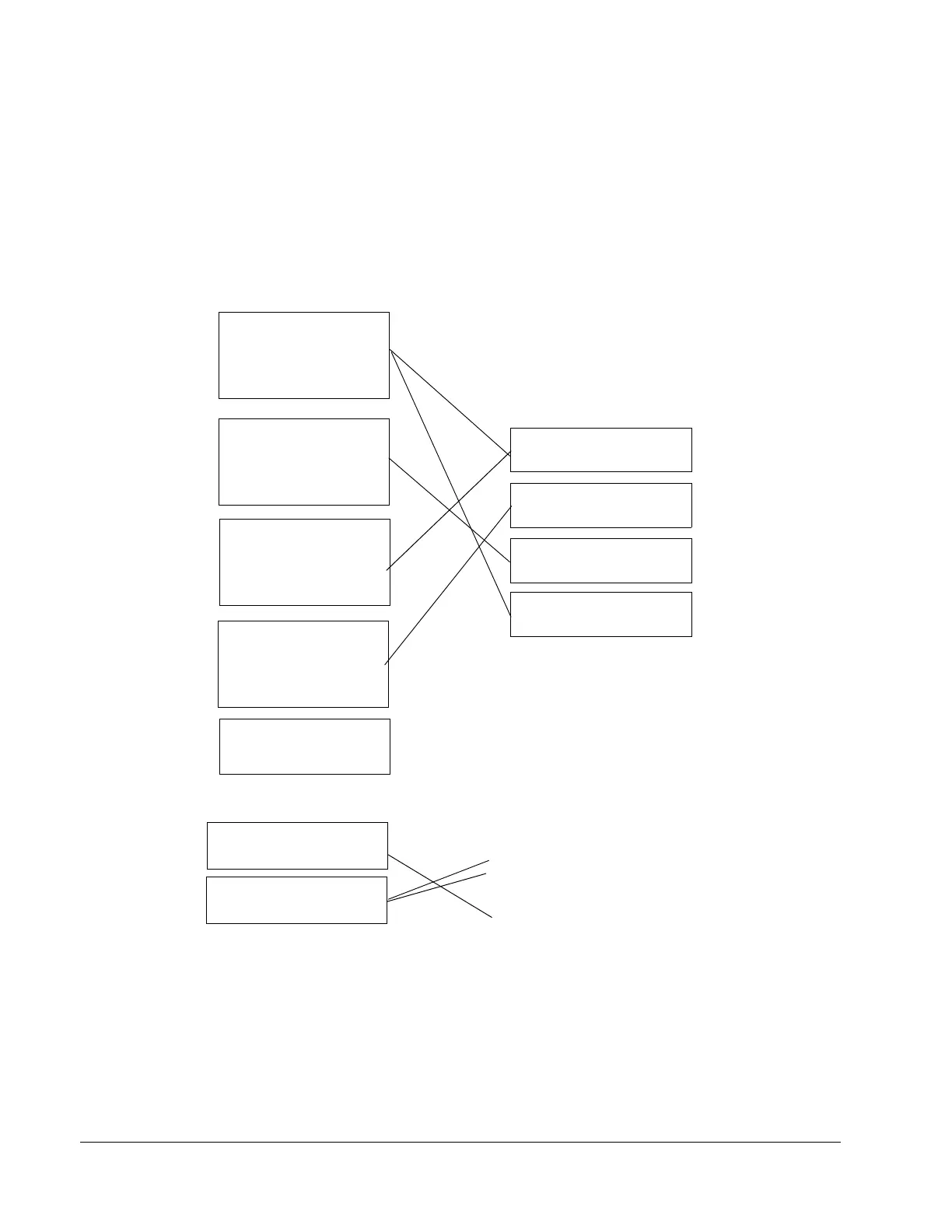

A timer can be connected to multiple time periods and a time period can be in
multiple timers.
A parameter can be connected to only one timer.
Time Period 1
3602 START TIME 1
3603
STOP TIME 1
3604
START DAY 1
3605
STOP DAY 1
Time Period 4
3614
START TIME 4
3615
STOP TIME 4
3616
START DAY 4
3617
STOP DAY 4
Time Period 3
3610
START TIME 3
3611
STOP TIME 3
3612
START DAY 3
3613
STOP DAY 3
Time Period 2
3606
START TIME 2
3607
STOP TIME 2
3608
START DAY 2
3609
STOP DAY 2
Booster
3622
BOOSTER SEL
3623
BOOSTER TIME
Timer 1
3626 TIMER FUNC1 SRC
Timer 2
3627
TIMER FUNC2 SRC
Timer 3
3628
TIMER FUNC3 SRC
Timer 4
3629
TIMER FUNC4 SRC
Timer2
3627 TIMER FUNC2 SRC
1001 EXT 1 COMMANDS
1002 EXT 2 COMMANDS
1102 EXT 1/2 SEL
1201 CONST SPEED SEL
1401 RELAY OUTPUT 1…1403 RELAY OUTPUT 3
4027
PID PARAM SET
Timer1
3626
TIMER FUNC1 SRC
8126 TIMED AUTOCHANGE
1410 RELAY OUTPUT 4…1412 RELAY OUTPUT 6
