ACS550 User’s Manual 237
Technical Data
Dimensions and Weights
The dimensions and mass for the ACS550 depend on the frame size and enclosure
type. If unsure of frame size, first, find the “Type” code on the drive labels. Then look
up that type code in the "Technical Data" on page 215, to determine the frame size.
A complete set of dimensional drawings for ACS550 drives is located in the ACS550
Technical Reference manual.

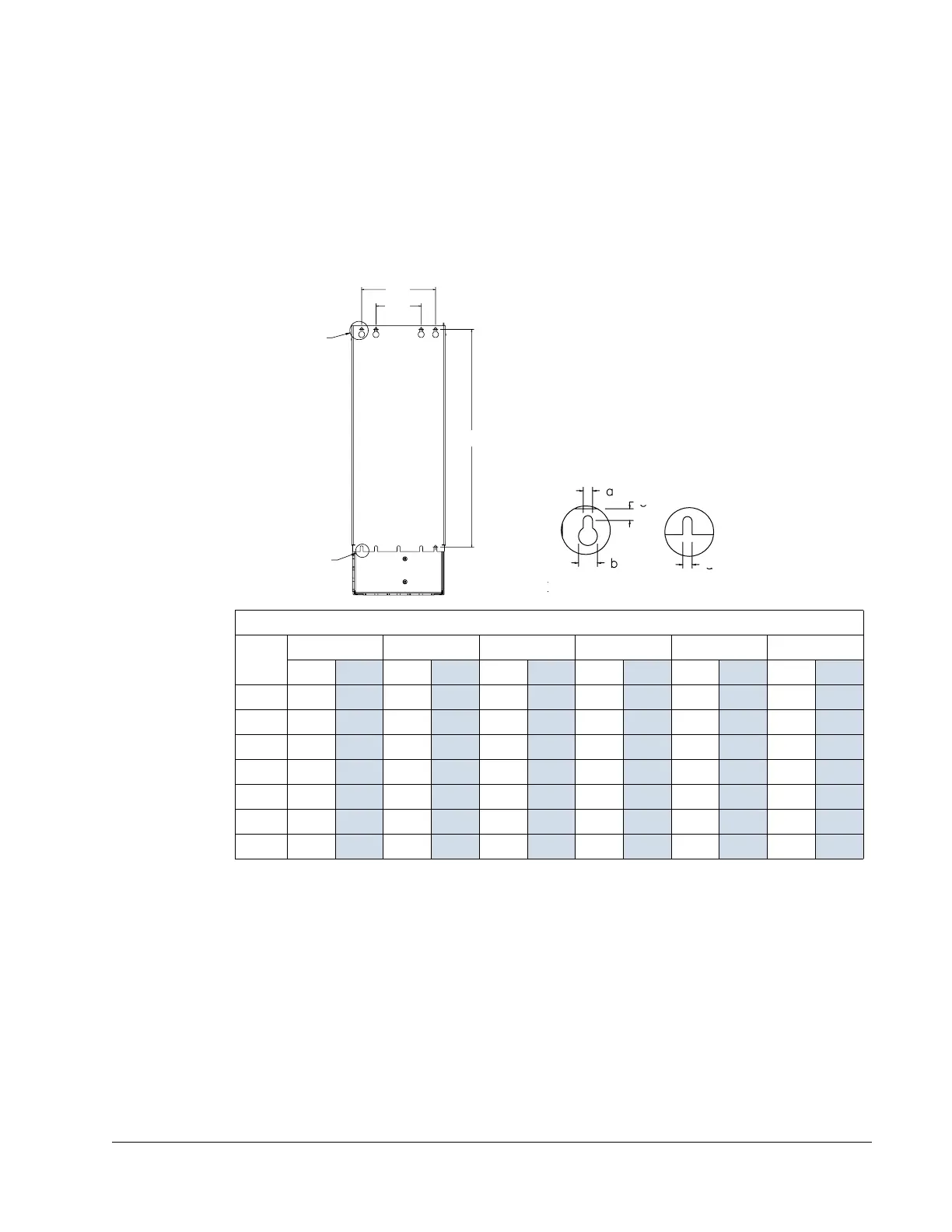

Mounting Dimensions
* Center to center dimension.
IP 21 / UL type 1 and IP 54 / UL type 12 – Dimensions for each Frame Size
Ref.
R1 R2 R3 R4 R5 R6
mm in mm in mm in mm in mm in mm in
W1* 98.0 3.9 98.0 3.9 160 6.3 160 6.3 238 9.4 263 10.4
W2* --
-- -- -- 98.0 3.9 98.0 3.9 -- -- -- --
H1* 318 12.5 418 16.4 473 18.6 578 22.8 588 23.2 675 26.6
a 5.5
0.2 5.5 0.2 6.5 0.25 6.5 0.25 6.5 0.25 9.0 0.35
b 10.0
0.4 10.0 0.4 13.0 0.5 13.0 0.5 14.0 0.55 14.0 0.55
c 5.5
0.2 5.5 0.2 8.0 0.3 8.0 0.3 8.5 0.3 8.5 0.3
d 5.5
0.2 5.5 0.2 6.5 0.25 6.5 025 6.5 0.25 9.0 0.35
X0032
b
H1
See Detail A
a
W1
See Detail B
W2
c
d
Detail B
Detail A
