70 Devices

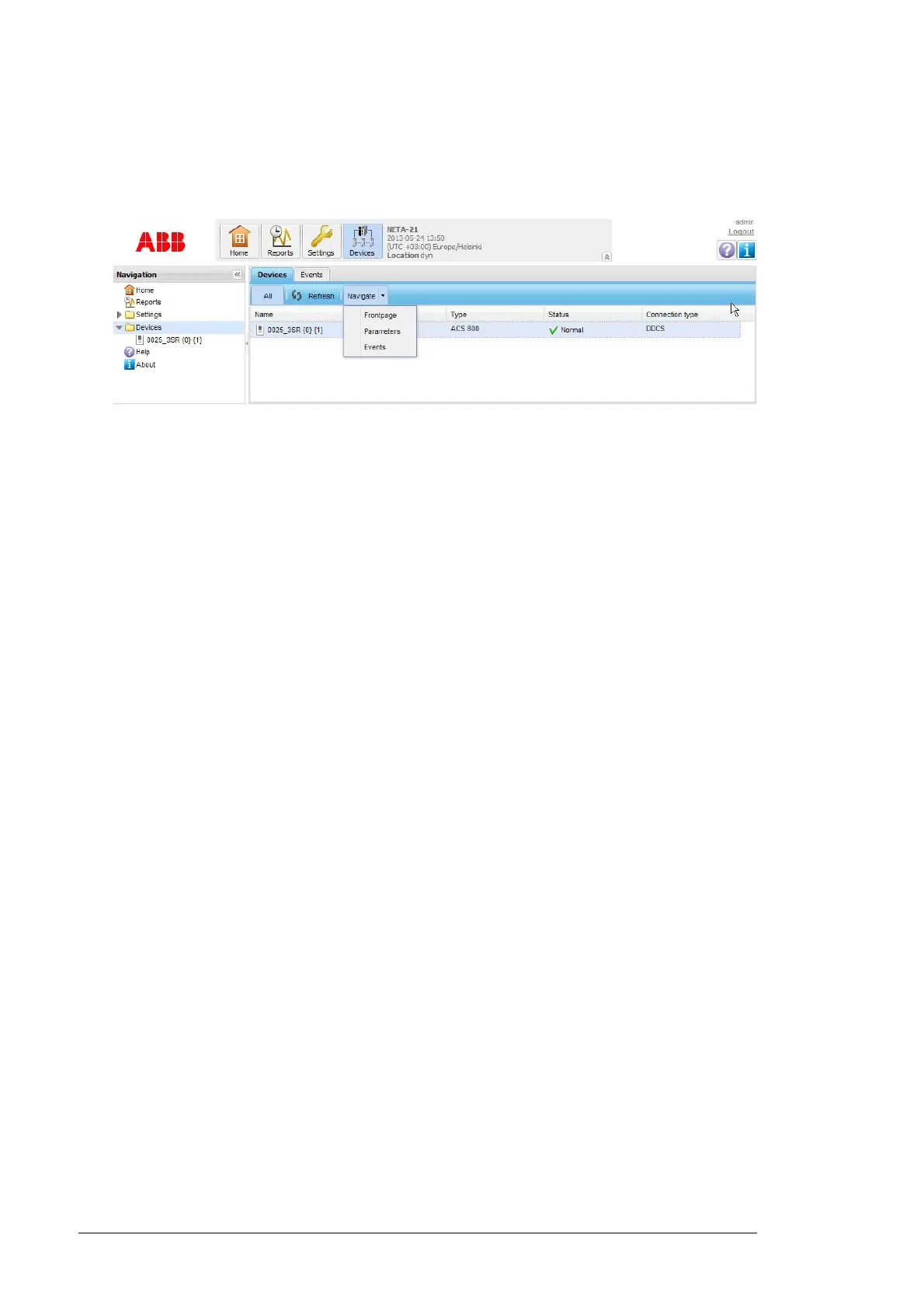

• Navigate button opens the front page of a selected device. This button is disabled if
no device has been selected. If you click the arrow on the button and select
Parameters or Events, you can go directly to the Parameter browser tab or the
Event tab of the selected device.
• Device list shows all detected devices. Double-click a device to open the front page of
the device. The list contains the following columns:
• Name column contains the name and icon of the device.
After the device name there are two numbers in curly brackets. The first number
depends on the connection type:
0 = DDCS connection
1 or 2 = PNL connection
3 = Modbus connection
Ethernet connection = IP of the device without dots.
The second number is an ID that indicates different devices of the same
connection.
• Category column contains the category of the device.
• Type column contains the type of the device.
• Status column contains the connection status of the device and the corresponding
icon describing the status. The status can be, for example, one of the following:
Normal, Disconnected, Warning, Fault.
• Connection type column contains the connection type of the device. The following
connection types are available:
DDCS
ETH scan, ETH manual (Ethernet connection, either automatically scanned or
manually connected)
MB (Modbus)
Panel bus.
