ABB PVI-6.0-TL-OUTD User Manual

- 13 -
000429BG
2 - Characteristics
Models and range of equipment
The specic models of three-phase inverters covered by this manual are
divided into four groups according to their maximum output power:
6.0 kW, 8.0kW, 10.0 kW or 12.5 kW.
For inverters of equal output power the variant between the various mo-
dels is the presence or lack thereof of the DC disconnect switch
08
, or
the input fuses board
13
.
The choice of the inverter model must be made by a qualied technician who knows about
the installation conditions, the devices that will be installed outside the inverter and possible
integration with an existing system.

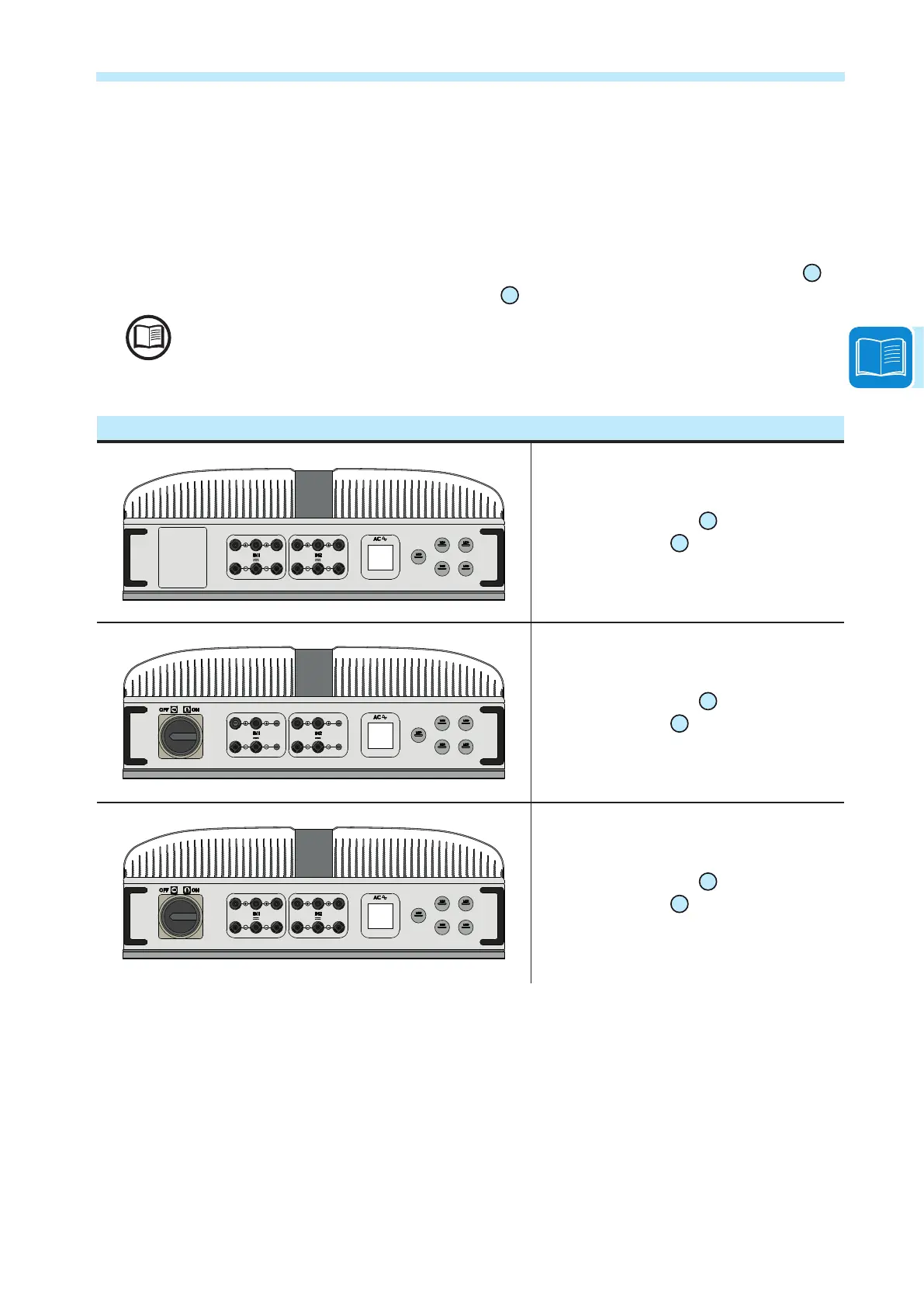

• PVI-6.0/8.0/10.0/12.5-TL-OUTD MODELS
PVI-6.0/8.0/10.0/12.5-TL-OUTD:
• Number of input channels: 2
• DC disconnect switch
08
: No
• Input fuses board
13
: No
• Input connectors: quick t connectors
(3 pair for each channel)
PVI-6.0/8.0/10.0/12.5-TL-OUTD-S:
• Number of input channels: 2
• DC disconnect switch
08
: Yes
• Input fuses board
13
: No
• Input connectors: quick t connectors
(2 pair for each channel)
PVI-6.0/8.0/10.0/12.5-TL-OUTD-FS:
• Number of input channels: 2
• DC disconnect switch
08
: Yes
• Input fuses board
13
: Yes
• Input connectors: quick t connectors
(3 pair for each channel)
